MX123 Connection System User Manual - AS-34566-001 16
C. Terminal Installation

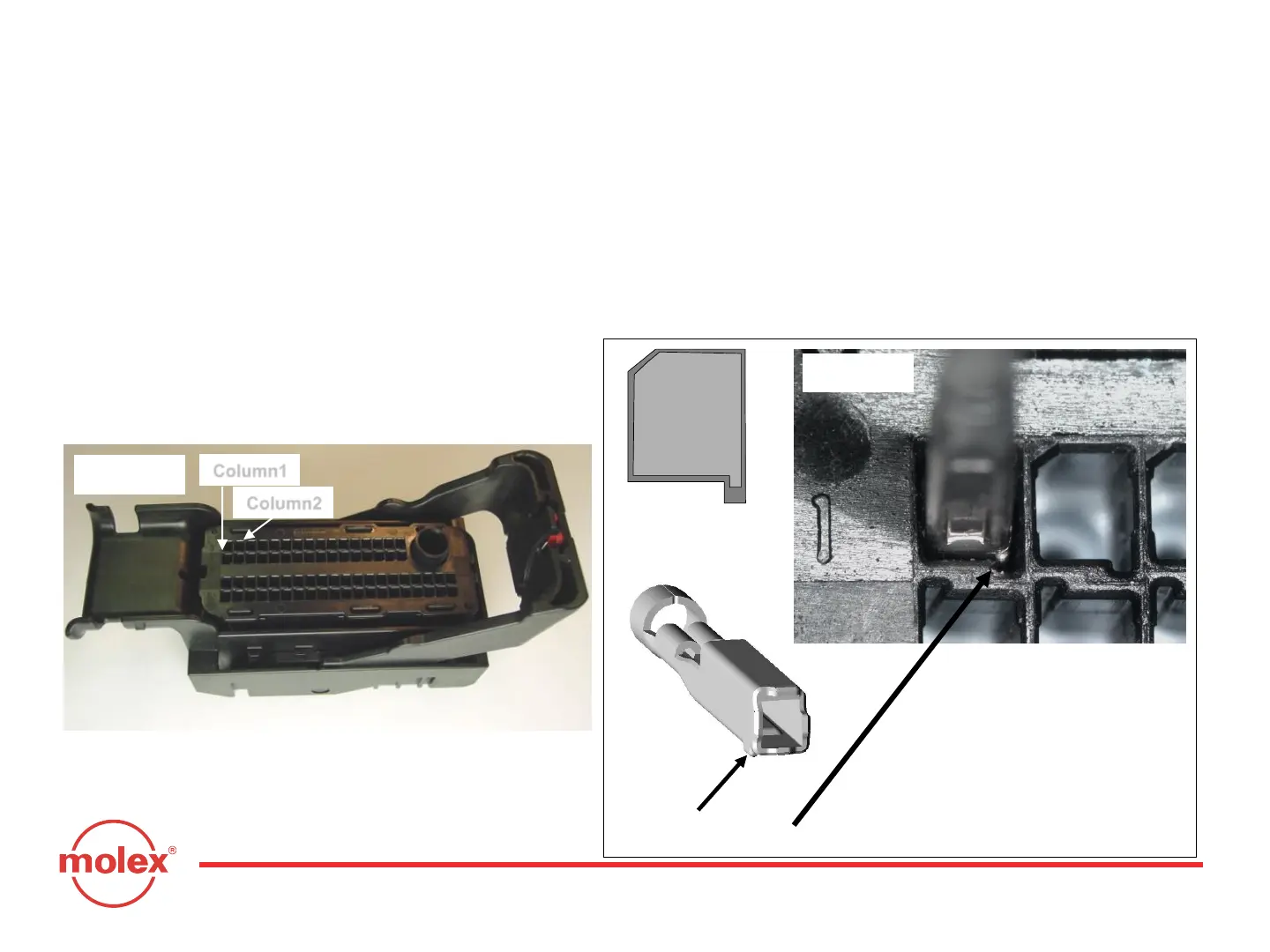

For ease of assembly, it is recommended that when populating the connector,
wires be populated in the following manner (see Fig 3-3): 1) Fully populate
down Column 1 and then 2) continue on to Column 2 and so forth until the
entire connector is populated. Refer to Fig 3-4 for proper MX64 terminal
orientation.
0.64mm Orientation
Orientation Tab
Section 3: Harness Assembly Instructions
Align terminal orientation tab
with slot in grommet cap
opening to install the terminal
Fig. 3-3
Column1
Column2
Fig. 3-4
