MX123 Connection System User Manual - AS-34566-001 26
B. Harness Connector to Header/Controller Installation Into Pre-Lock

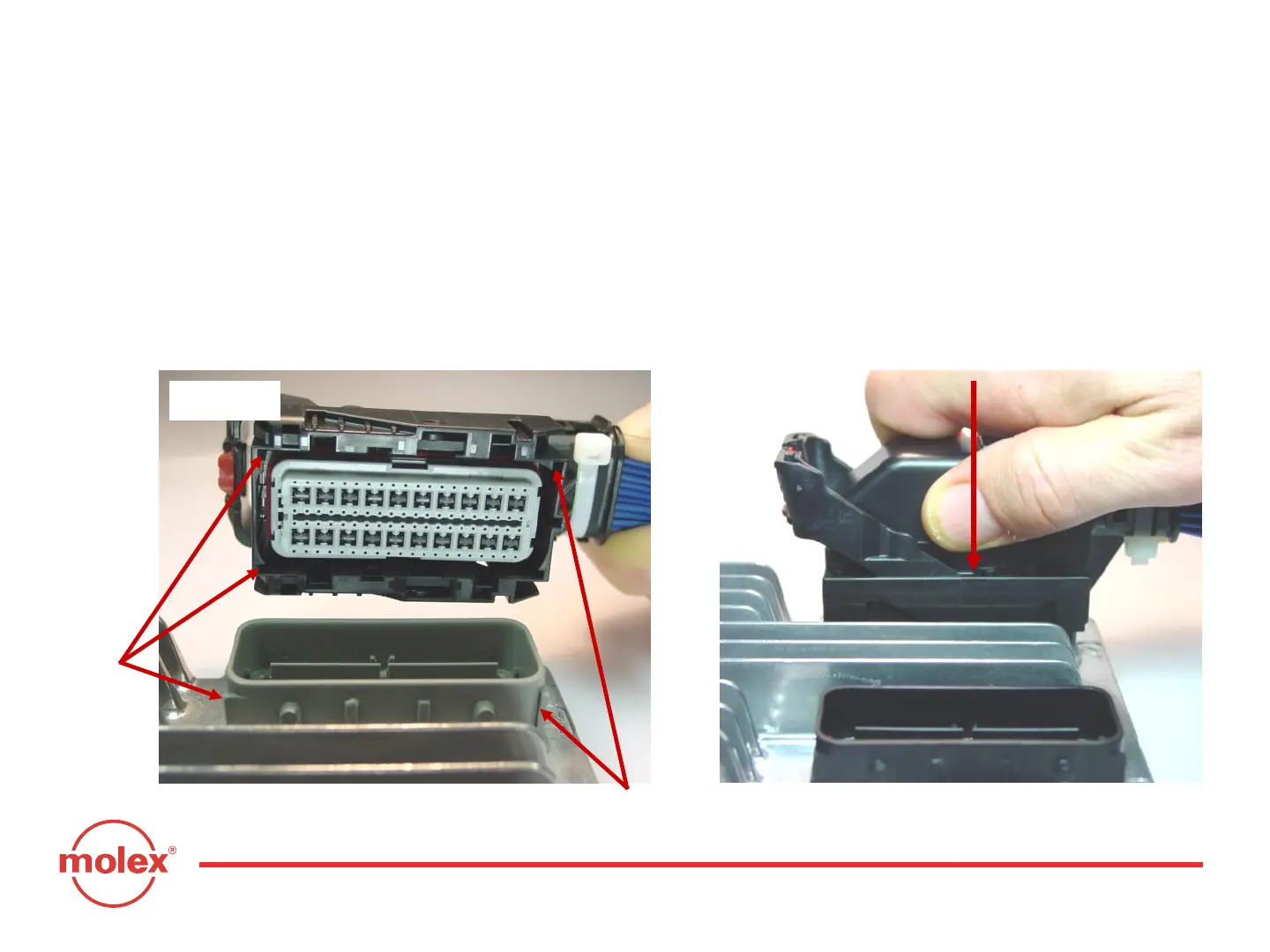

Correctly orient the harness connector (align keying features) onto the
controller connector (Fig. 4-2). Grip the top of the harness connector and
evenly push the connector downward until the lever moves slightly forward
(Fig. 4-3).
Align
Keying
Features
Align Keying Features
Fig. 4-2 Fig. 4-3
Section 4: Connector Mating Instructions
