 Caution!
 Installing the harness
connector at an extreme
angle (see fig 4- 4 ) may
result in seal “scooping”
creating an environment
for fluid ingress.
 Damage to the header, or
connector is possible if
excessive force is used.
Section 4: Connector Mating Instructions

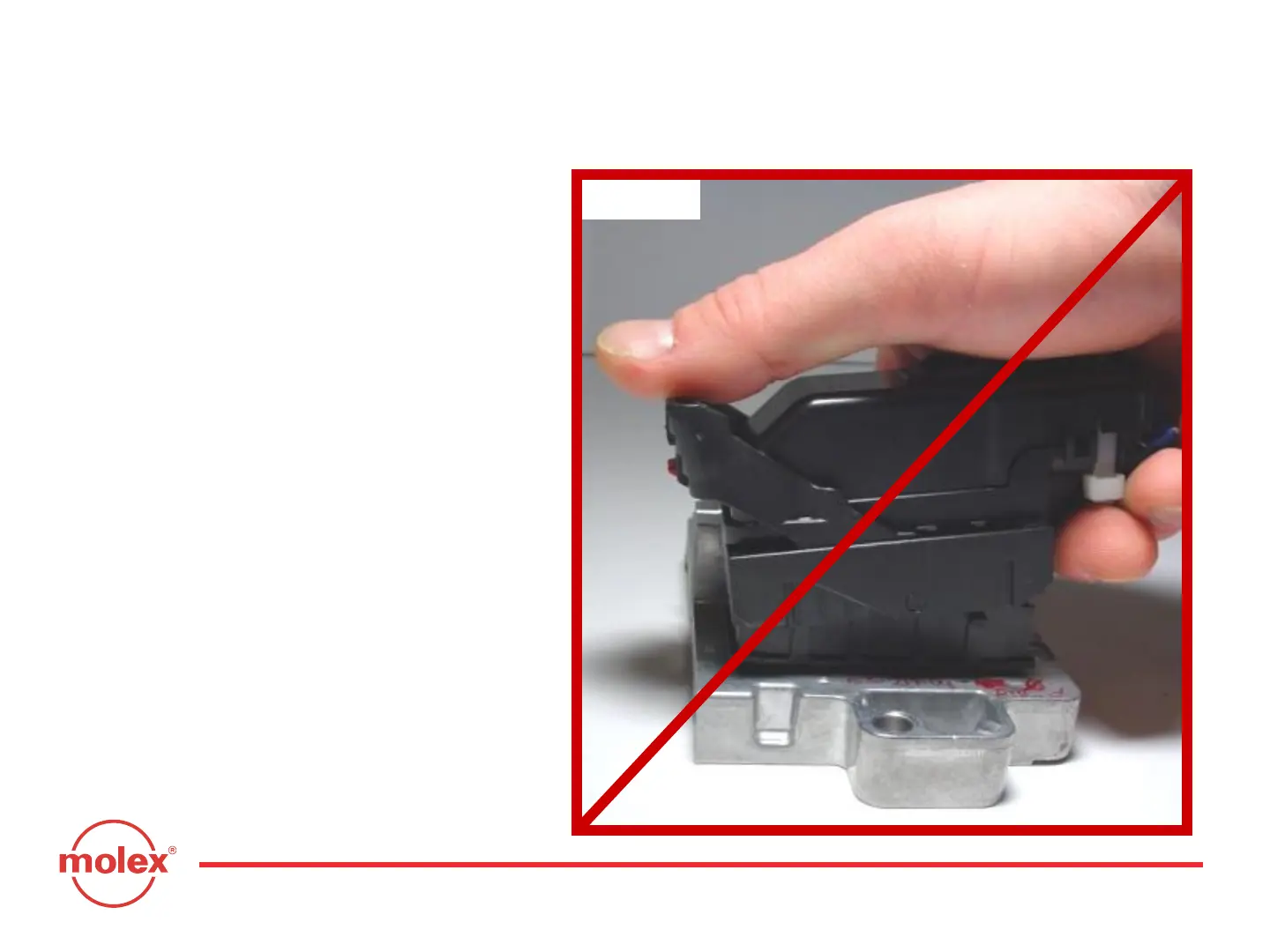

Fig. 4- 4
