MX123 Connection System User Manual - AS-34566-001 32
Section 5: Service Instructions
A. Harness Connector Removal From Module (continued)

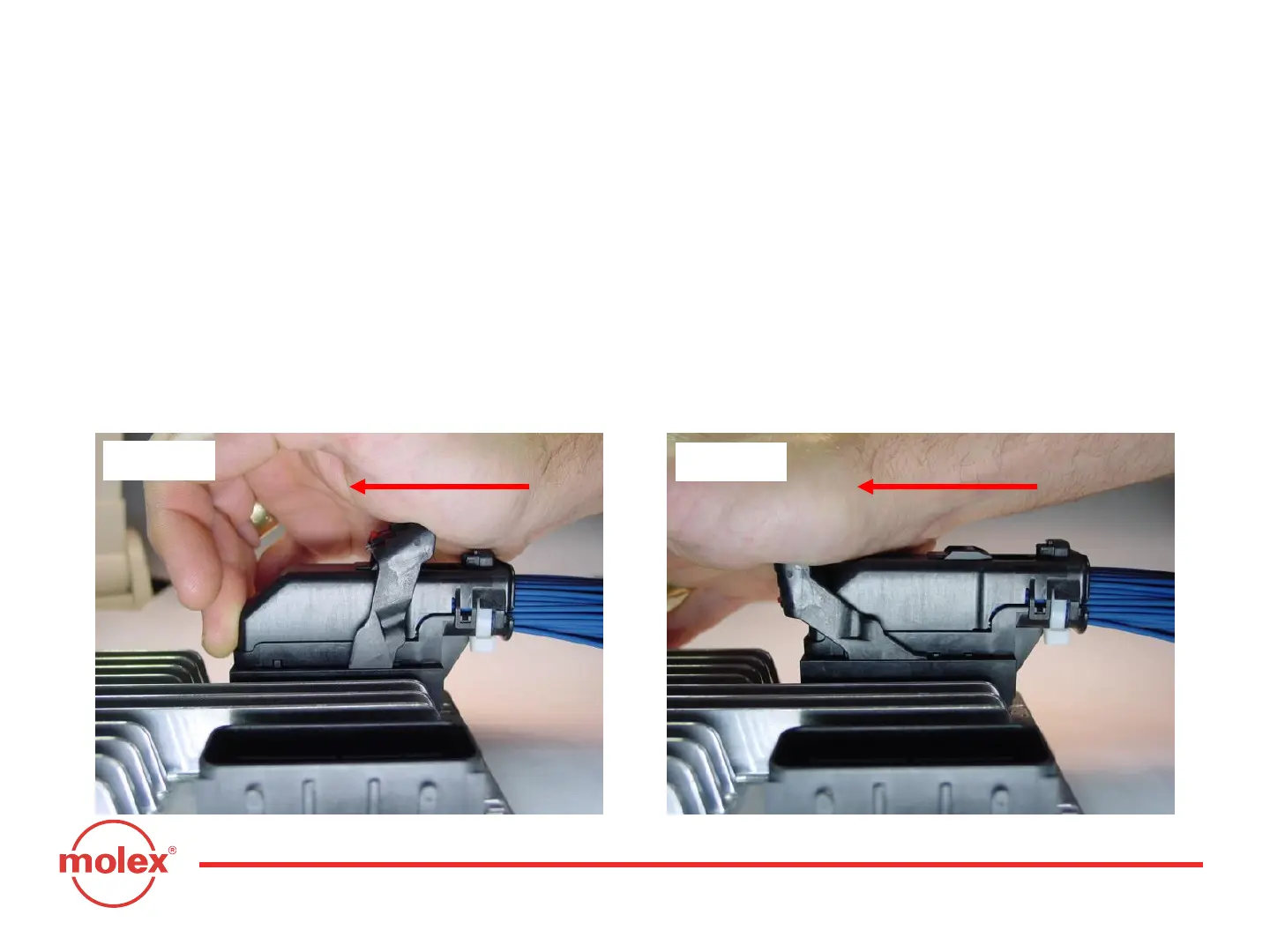

Push the top of the mate lever arm away from wire bundle using the palm of
your hand (Fig. 5-2).
Continue to rotate the lever until the connector lifts into pre-lock (Fig. 5-3).
The lever MUST be in the pre-lock position or the connector can not be easily
removed from the module. The lever must be fully forward for the harness
connector to be in pre-lock position.
Fig. 5-2
Fig. 5-3
