Section 5: Service Instructions
B. Dress Cover Removal
With the harness connector removed from header/controller (Fig. 5-5),
unlatch the dress cover latch features on each side of the dress cover guide
(Fig. 5-6). A small screwdriver or similar tool can be used to release the
latches.

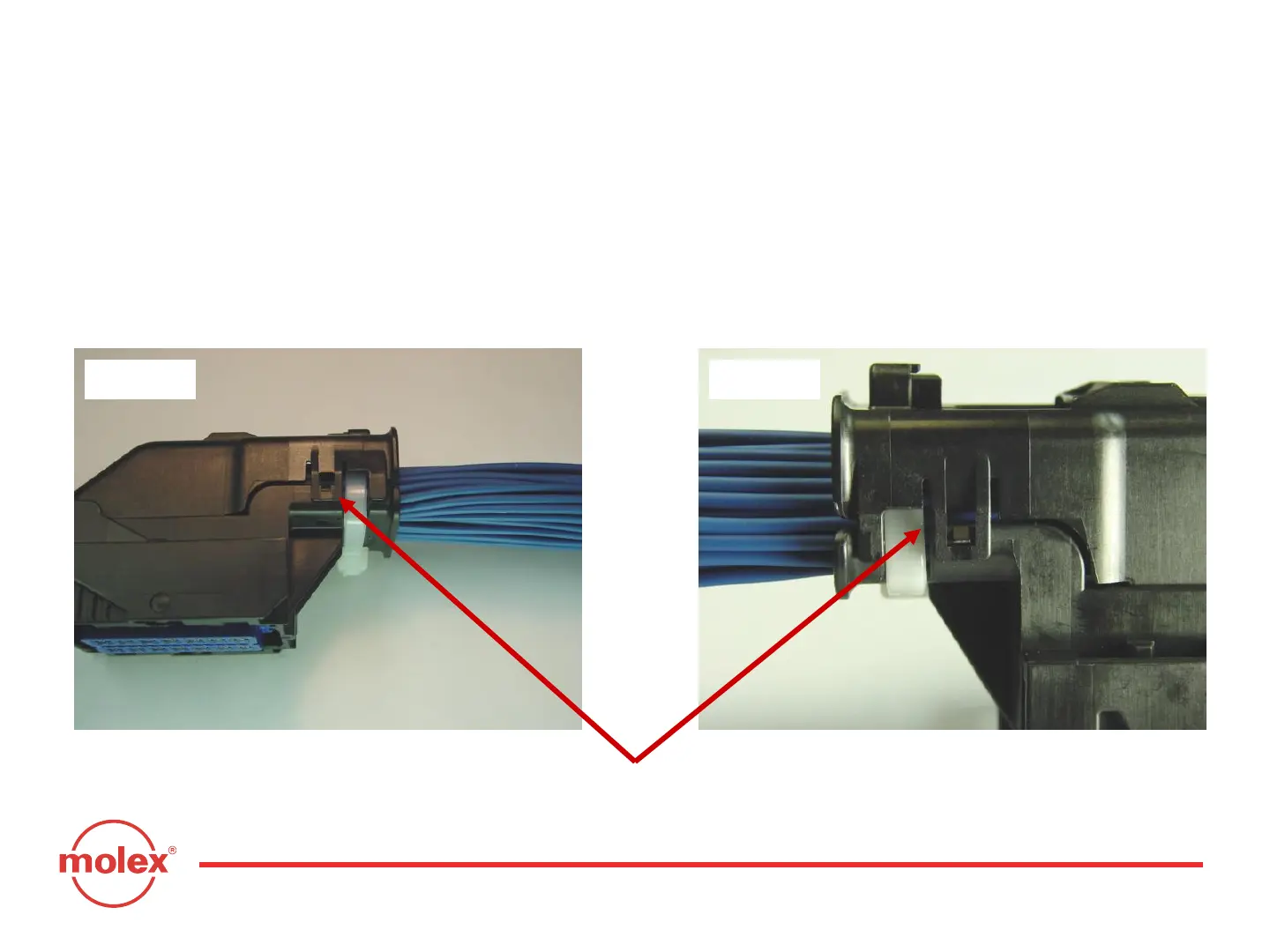

Latch Feature
on each side
Fig. 5-5 Fig. 5-6
