MX123 Connection System User Manual - AS-34566-001 64

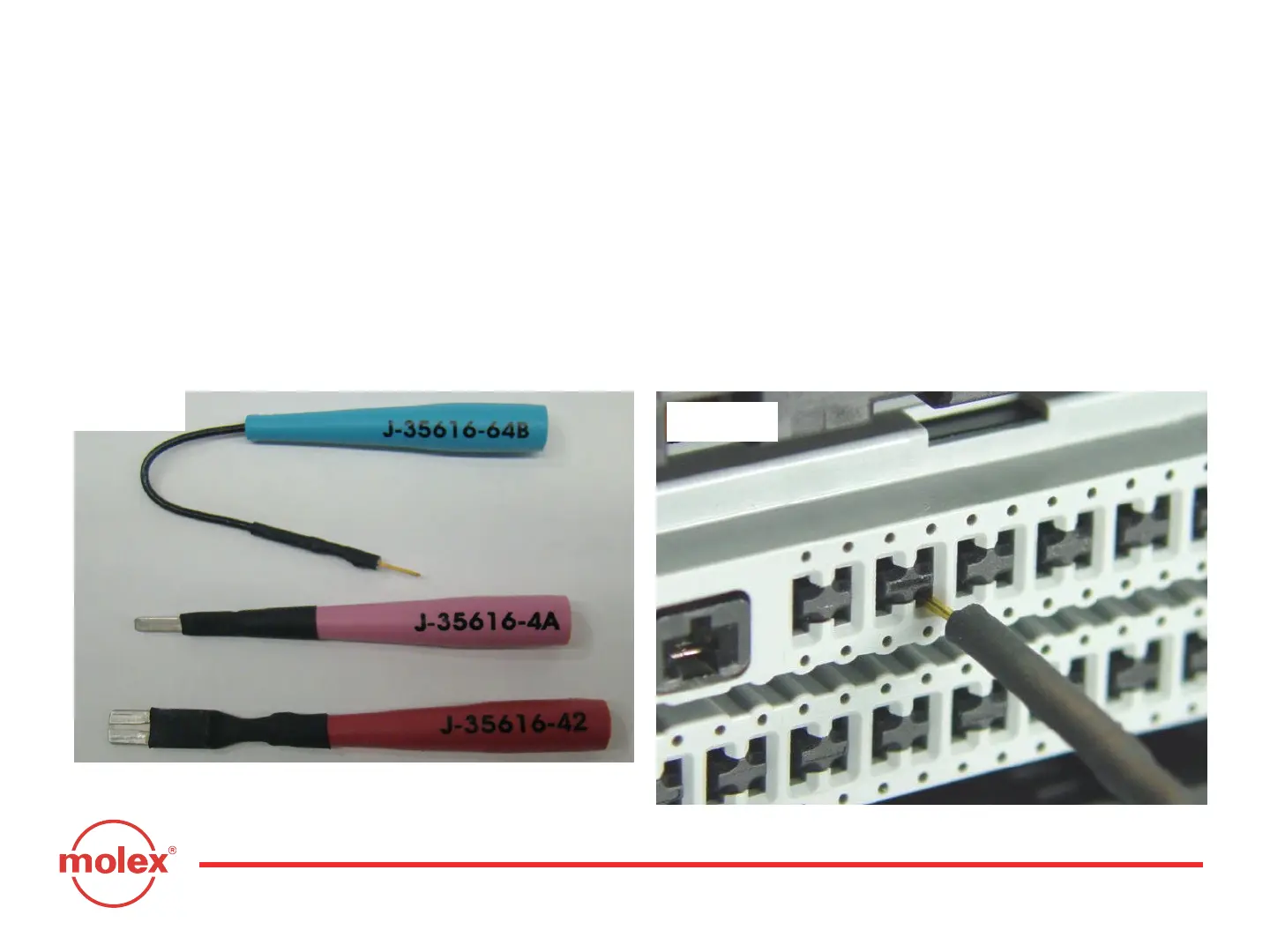

F. Manual Probing of the Connector
If the connector must be probed off-line, please use:
– GM probe tool #J-35616-64B for the 0.64mm terminal (Fig. 6-1).
– GM probe tool # J-35616-4A for the 2.8mm terminal (Fig. 6-1).
– GM probe tool # J-35616-42 for the 6.3mm terminal (Fig. 6-1).
Insert the probe through the terminal opening as shown in Fig. 6-2.
Fig. 6-2
Section 6: Electrical Continuity Checking
Fig. 6-1
