MX123 Connection System User Manual - AS-34566-001 65

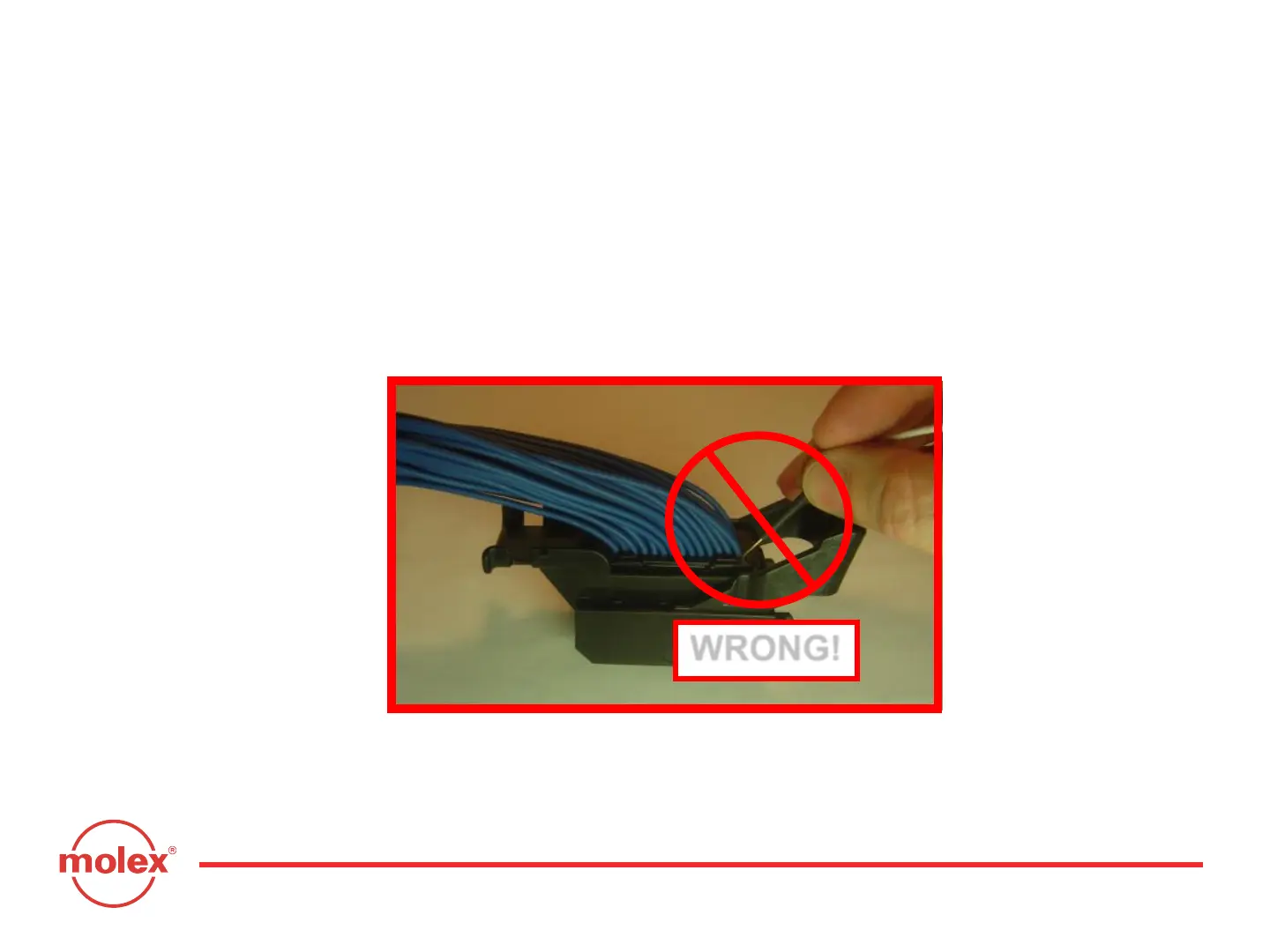

Manual probing damage can occur…
If a probe is inserted into the back of the connector. This may
damage the wire seal, creating an environment for fluid ingress.
F. Manual Probing of the Connector
Section 6: Electrical Continuity Checking
If the wire insulation is pierced or chafed. This may create a leak-
path for fluid ingress and/or wire corrosion.
WRONG!
