MX123 Connection System User Manual - AS-34566-001 77
Section 12 (SDC-56way) Connector Mating

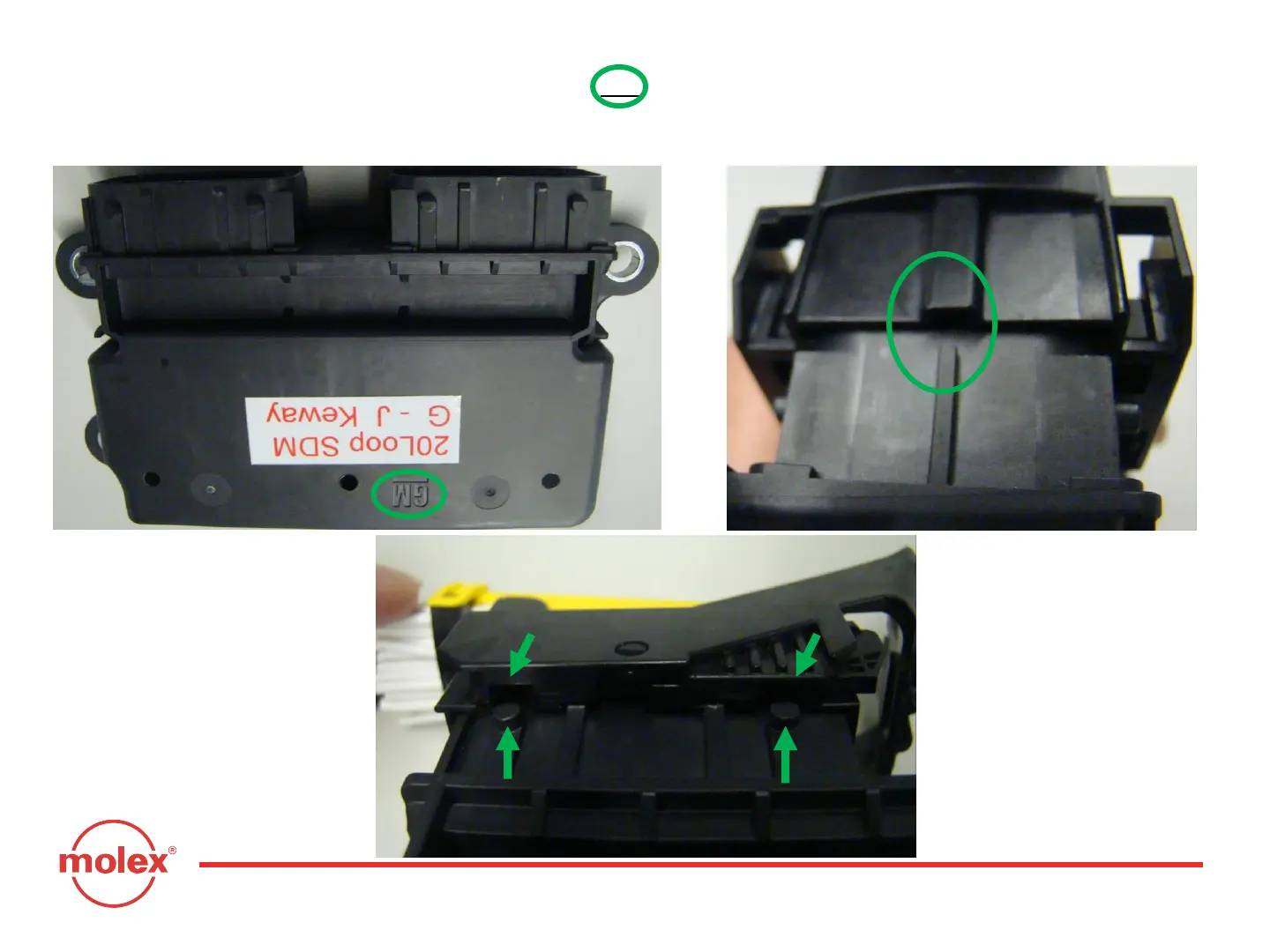

Step 1 – Orient module header such that molded letter GM on the header wall is facing towards the operator (Fig:1),
making sure that aligning channel of the connector shroud underneath the wire shelf aligns with the rib on the header wall
(Fig:2) and the pivot posts of the header are aligned with the slots on the shroud (Fig:3)
Fig: 1
Fig: 3
Fig: 2
To Next Page
