MX123 Connection System User Manual - AS-34566-001 79
Section 12 (SDC-56way) Connector Mating

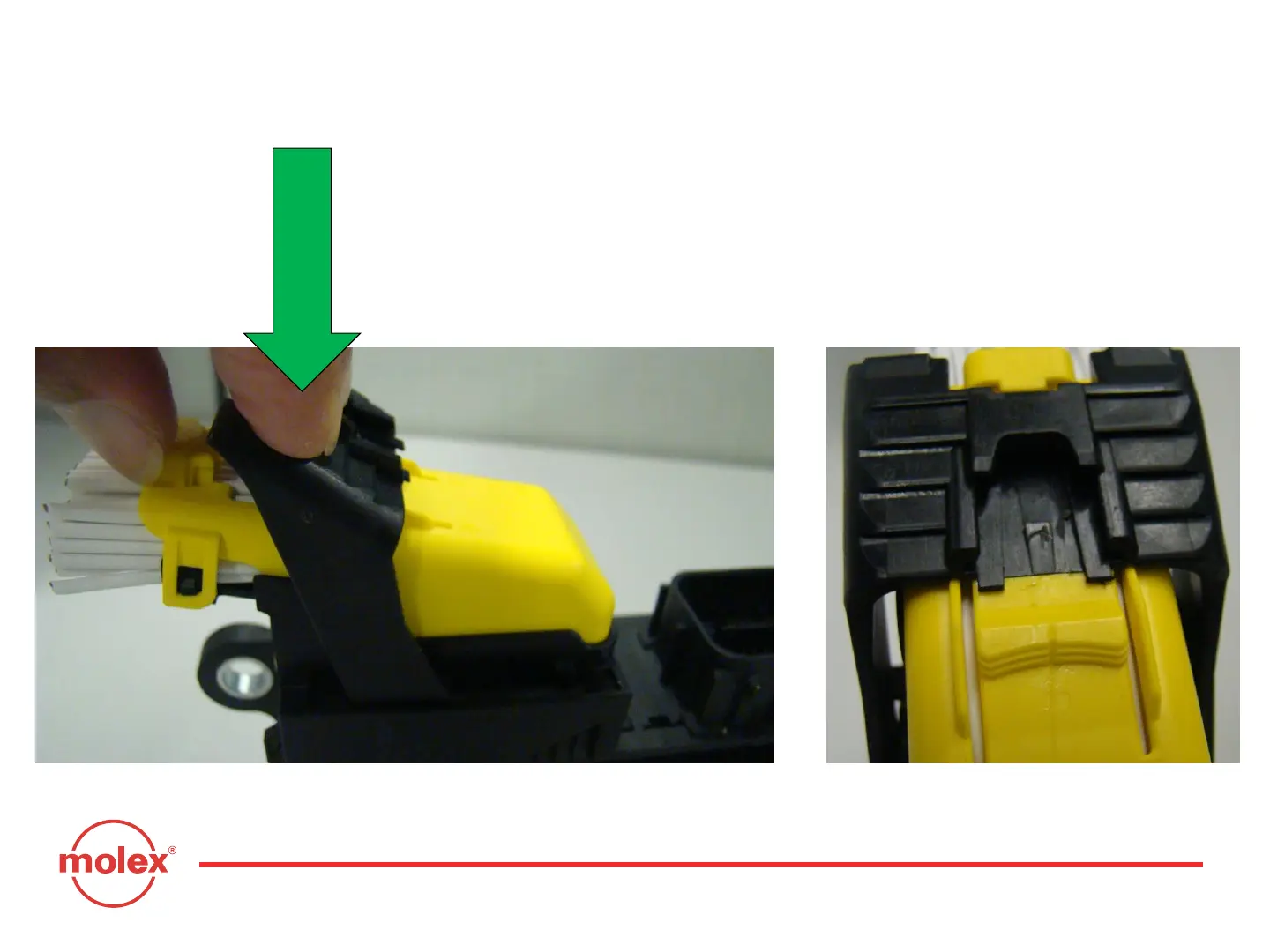

Step 3 – Push the lever down to lock it with the wire dress cover (Fig: 6) with an audible click. Completely locked lever is
shown in (Fig: 7)
Fig: 6 Fig: 7
