Technical data
Weight, total:
Ex. battery and suspension; 36 kg / 79 lbs
Chassis: 19 kg / 42 lbs
Lifting column: 17 kg / 37 lbs
Battery: 1.6 kg / 3.7 lbs
Suspension: 3.3 kg / 7.3 lbs
Material:
Steel, aluminium and composite plastic
Motor:
Lifting motor/actuator: 24 V DC
Leg spreading motor: 12 V DC
Battery:
Art.no: 1341000
26,4 V NiMH 2,2 Ah,
ATO Fuse 20 A
Battery charger:
Mascot type 2215,
10-22 cells NiCd/NiMH
Protection:
IP24
Number of lifts with fully charged battery:
50 lifts ( 75 kg / 165 lbs
up/down 50 cm / 20 inches)
Safe Working Load (SWL):
300 kg / 660 lbs
Lifting speed:
27 mm/sek /1.06 inch/sec
Sound level, max A-weighted sound power level:
L
WA
= 63,2 dB
Operating forces:
Buttons on hand control: 3,4 N
Turning diameter:
1400 mm (55.1 inches)
Measurements:
1322 x 702 x 1388 mm (LxWxH)
52,0 x 27,6 x 54,6 inches (LxWxH)

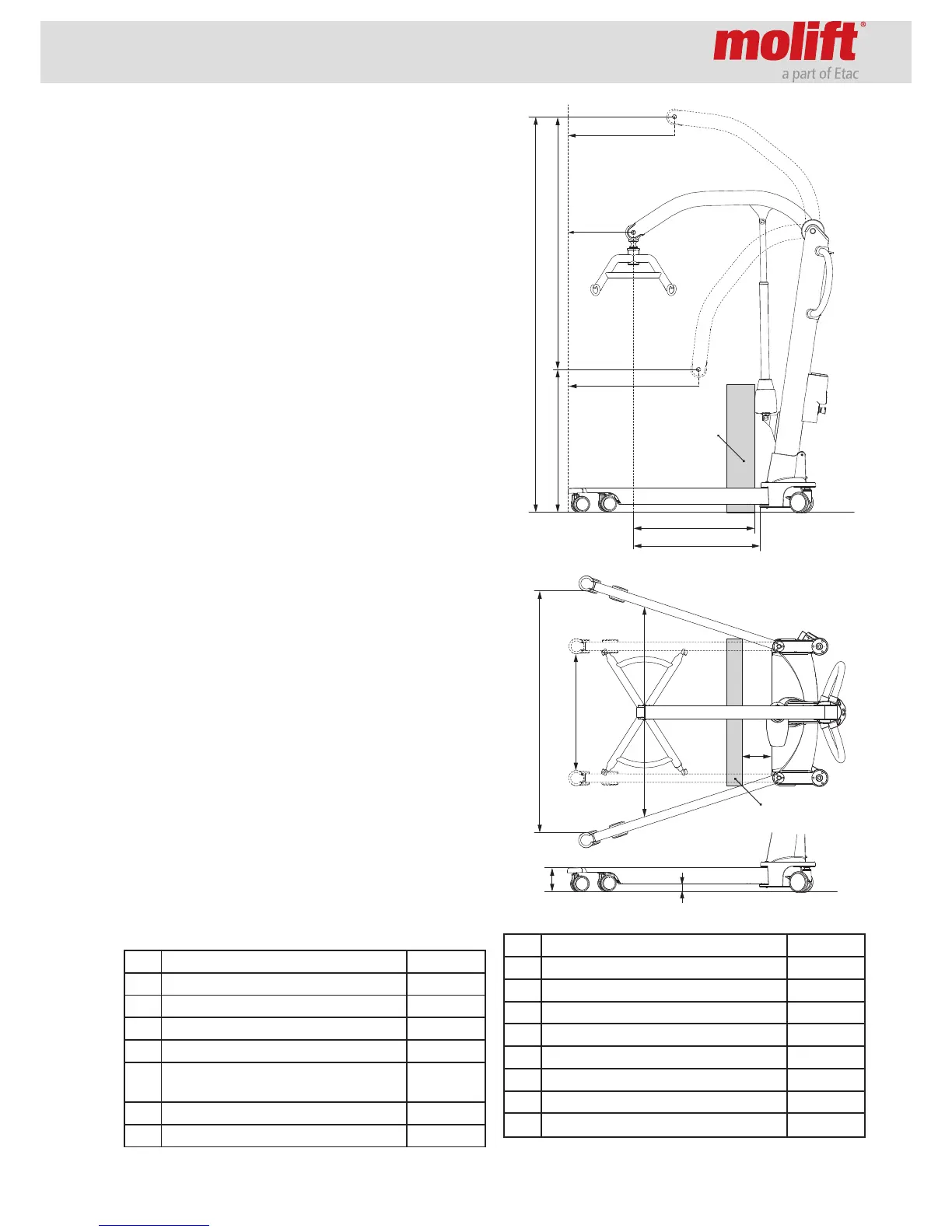

1 Highest position 2070 mm
2 Maximum reach position 1340 mm
3 Lowest position 650 mm
A Maximum reach at 600 mm 1340 mm
B Maximum reach from base 630 mm
C Reach from base with legs spread
to 700 mm
180 mm
D Base height 115 mm
E Base clearance 43 mm
R
M
1
2
3
A
B
L
H
G
F
K
Q
C
w=700
P
E
D
h=600
F Min. distance from wall to CSP (1) 710 mm
G Min. distance from wall to CSP (2) 295 mm
H Min. distance from wall to CSP (3) 640 mm
K Maximum height of CSP 2070 mm
L Minimum height of CSP 650 mm
M Hoisting range 1420 mm
P Maximum internal width 1065 mm
Q Internal width at maximum reach 950 mm
R Minimum internal width 58,5 mm
