MONARCH INSTRUMENT PLT200 User Manual

3

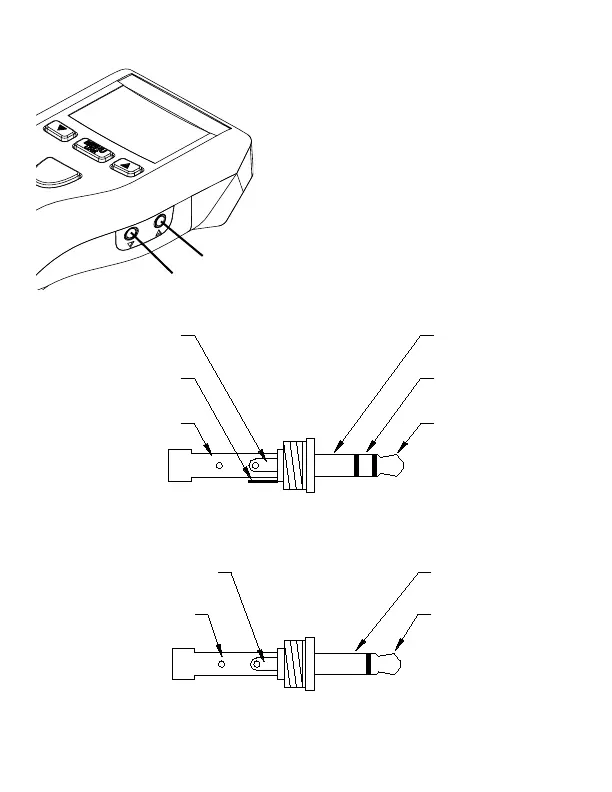

4.0 INPUT / OUTPUT
Output socket (q)
Input socket (p)
Input: Accepts remote sensor or
Remote Contact Assembly
(RCA). 1/8” (3.5mm) stereo
phone plug.
Output: 1 pulse per revolution TTL
output on internal operation.
Pulse repeater with external
sensors. 1/8” (3.5mm) mono
phone plug.
Pulse Output
Common
(GND)
Common
(GND)
Pulse Output
Signal Input
+3V Out to
Sensor
Common
(GND)
Common
(GND)
+3V Out to
Sensor
Signal Input
Input Connector Detail (Stereo plug)
Output Connector Detail (Mono plug)
