5.0 PREPARATION FOR MEASUREMENT
5.1 Non-Contact Preparation
For Internal operation (Red laser) or External operation using
optional Remote Optical Sensor (ROS-Red LED).
5.2 Direct Contact Preparation
For External operation ONLY using optional Remote Contact
Assembly (RCA).

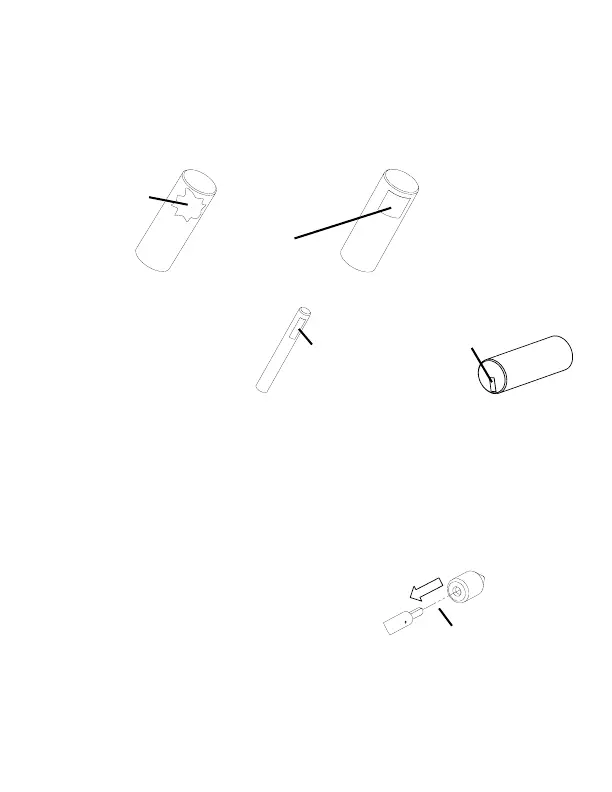

1. Clean
Shaft
As small as 1/8” wide
on side or radius edge
2. Apply 1/2”
square T-5
Refl ective
tape
For Small Shafts:
Select and install contact option:
1. Contact Tip (Convex tip shown.
Use Concave tip for small shafts.)
Align fl ats
