Monarch 9820 - Figure C-2. Control Board Assy. (Daugher Board)

9820/9830/9835 Service Manual Connector Locations
TC9830SM Rev. B 7/98 Confidential July 1998
58

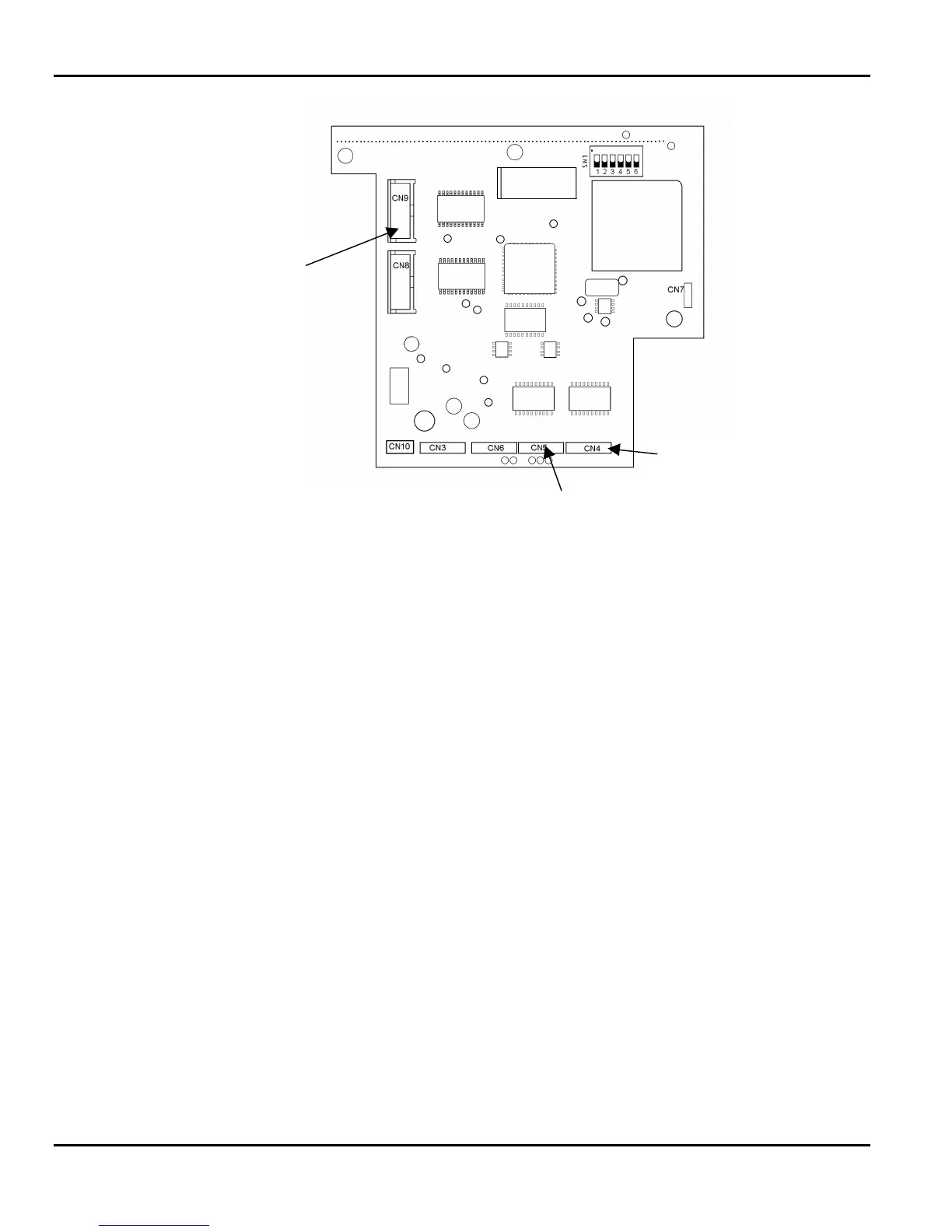

Figure C-2. Control Board Assy. (Daugher Board)
Legend:
CN3 Mother Board CN19
CN4 Cutter Option
CN5 Stacker Option
CN6 On-Demand Sensor
CN7 Reserved
CN8 Reserved
CN9 Reserved
CN10 Peel Motor
SW1 See Chapter 1 for settings
Auxillary keypad connects to CN9
5-wire knife harness
4-wire knife harness
