First check the brake belt tension. If the belt is too
tight loosen it a little by moving the force indicator to
about 4 kp and hold it there for a few seconds. Then
the force-adjusting servo will loosen the belt tension.
To be sure that indicator positions are correct, do a
calibration. See ”Electronic calibration”.
Turn off the power by pressing the power 1.
switch (2) which is placed on the frame, see Fig:
Connections. Disconnect the cable from any
connected external device.
Adjust the scale mechanically so that 0-index on 2.
the scale and indicator are in line.
Move the indicator to 6 kp and hold it there.3.
Turn on the power again. (The green LED on the 4.
lower left side of the bike is lit up when there is
power to the bike, see Fig: LED.)
Hold the indicator at 6 kp until two beeps are 5.
heard.
Move the pendulum pointer to 6.
0 = mode for use with PC or handheld
controller.
1 = mode for Siemens Megacart ECG
2 = mode for other ECG devices, alt 1.
3 = mode for other ECG devices, alt 2.
7. Keep at the selected position until two signals can
be heard. Then release the pointer to 0. The system
will now restart in the selected mode.
What command type is set
Connect power to the bike and set the power switch
to "on" without moving pendulum. 1 beep = mode
for PC or handheld controller, 2 beeps = mode for
ECG Siemens Mega Cart, 3 beeps = location of other
electrocardiographs, alt. 1 and alt. 2.
Alt. 1: ECG, Ergoline
compatible command
set, requested load value.
Alt. 2: ECG, Ergoline
compatible command
set, current load value.
Fig: LED (1)
(Left side in front of
rear support tube.)

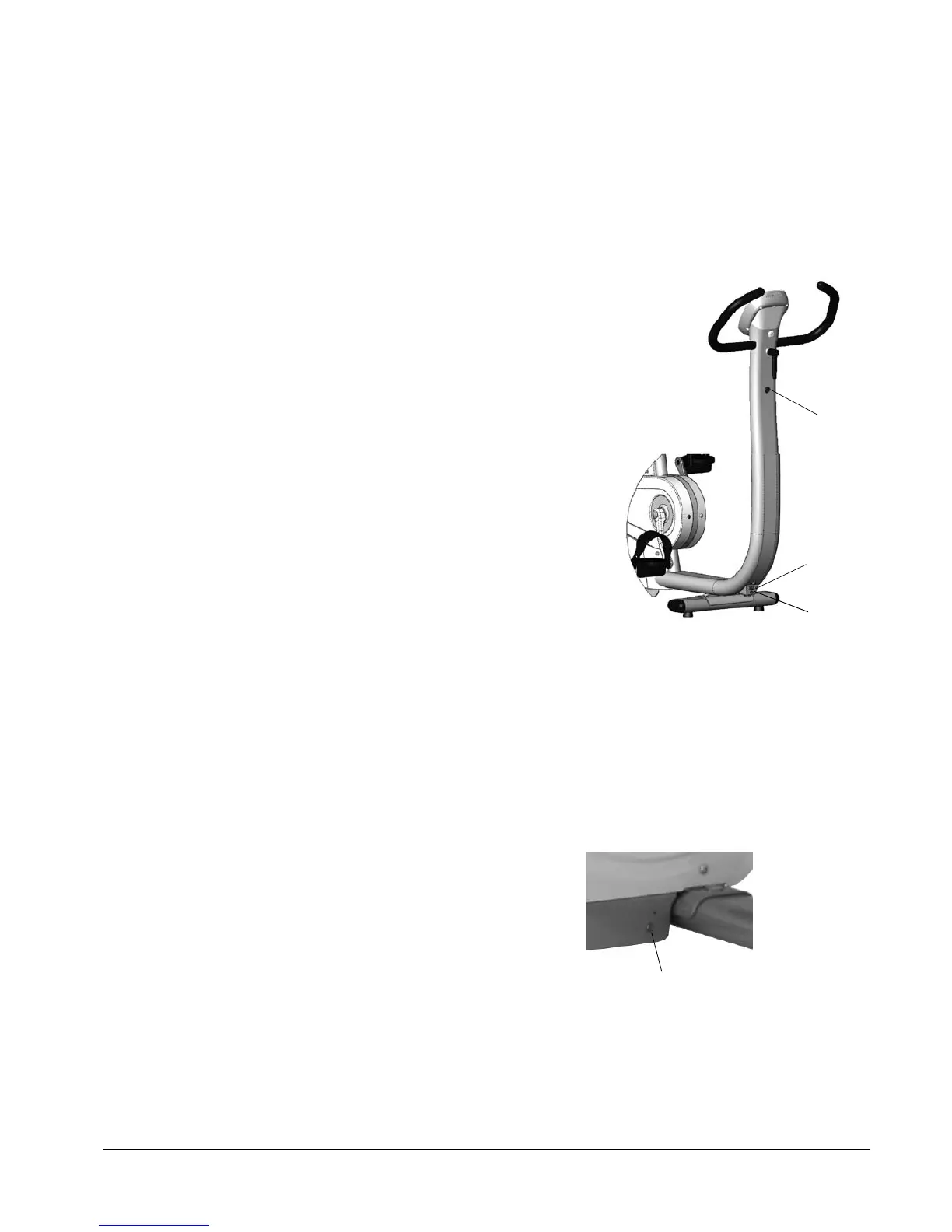

Fig: Connection
1) Power input
2) Serial port connection, external unit
3) Switch (on/off)
Setting command type (PC or ECG device)
From program version R15
