Outrigger Foot Fixing (BR5 and BR6 Only)
The Bronze Reference Series outrigger foot incorporates a spike for use on
carpetedfloorsand also, a softpolymer pad (foruse on wooden or tiled floors).
BEWARE. The spikes are very sharp, and could cause injury if care is not
taken when handling them.
Please ensure there are no hidden wires under the carpet, or trailing
mains leads that could be damaged by the spikes.
1. You can carefully place the cabinet on it’s top or back to fit the
outriggers. Locate the outrigger foot over the threaded inserts in the
cabinet.
2. Screwthese in placeusingthesupplied screws.
3. Place the soft polymer pad into it’s locating positions. These pads are
for use on hard floors. If you have hard floors, you can now enjoy your
speakers. If you have carpet please continue to follow these
instructions.
4. Fit the spikes into the inserts on the outrigger feet. If you have a very
thick pile carpet, you may need to remove the soft polymer pad to
ensure the spikes fully penetrate the carpet.
5. Carefully turn your speaker back over and check that it is evenly
balanced. If uneven, you can adjust the height in the appropriate
corner by unscrewing the spike slightly. This operation may need to be
repeated a several times to ensure your cabinet is completely level.
When you are happy with the balance of the cabinet, tighten the
locking nut on each spike. The soft polymer pad may need to be
removed to dothis.

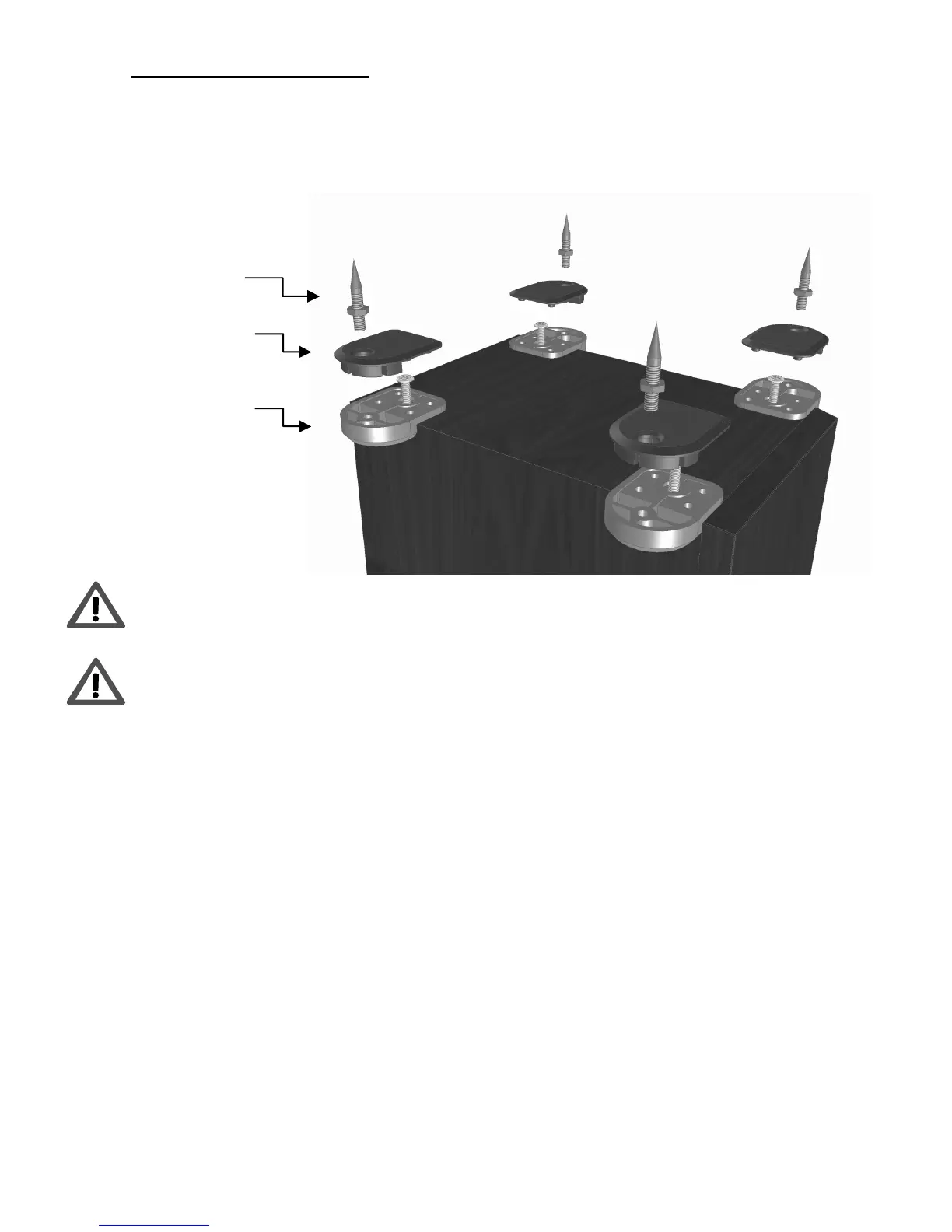

Outrigger Foot
Soft Polymer
Pad
Spike
To Next Page
