Eco Connect+ Convection | 4/5/7/10-Tray | Steam Installation and Operation Manual
102
MONO FG1BX-UK-MAN-0300 | Rev. C23 (July 2023)

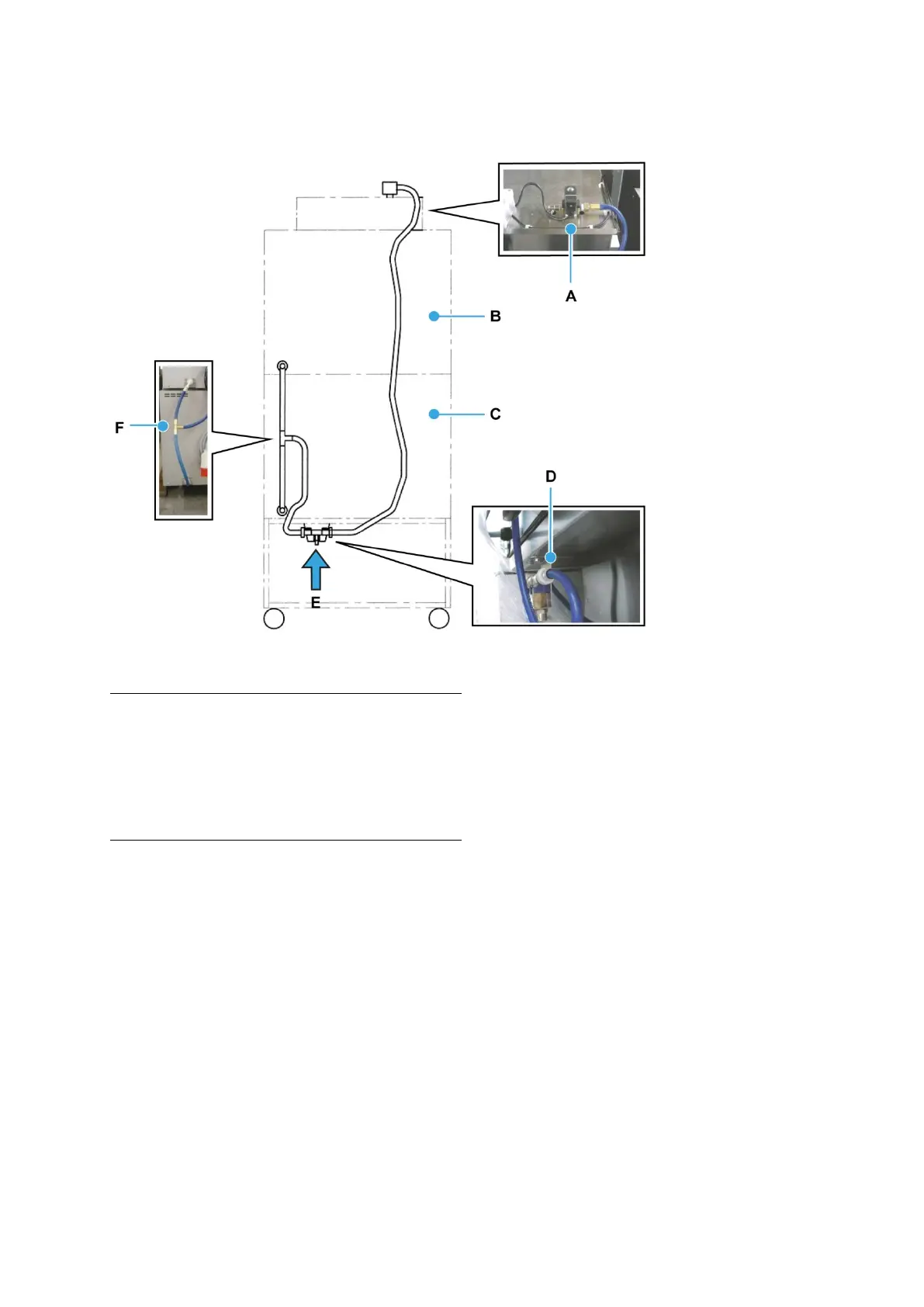

Figure 43: Water pipe connections
A. Condenser solenoid
B. Oven #1
C. Oven #2
D. Bracket fixings for the water tap
E. Mains water supply inlet
F. Tee-pipe for double oven connection
