Installation and Operation Manual Eco Connect+ Convection | 4/5/7/10-Tray | Steam
FG1BX-UK-MAN-0300 | Rev. C23 (July 2023) MONO 103
Operation (condenser unit)
1. Review all safety sections in this manual.
2. Ensure the water supply is connected correctly and the oven power is on.
3. Adjust the thermostat control to the required position (Figure 44).
It is suggested that, as a starting point, the thermostat is set at 60. It can then be decreased if the
performance drops or increased if it is found that the water is being replaced too often.

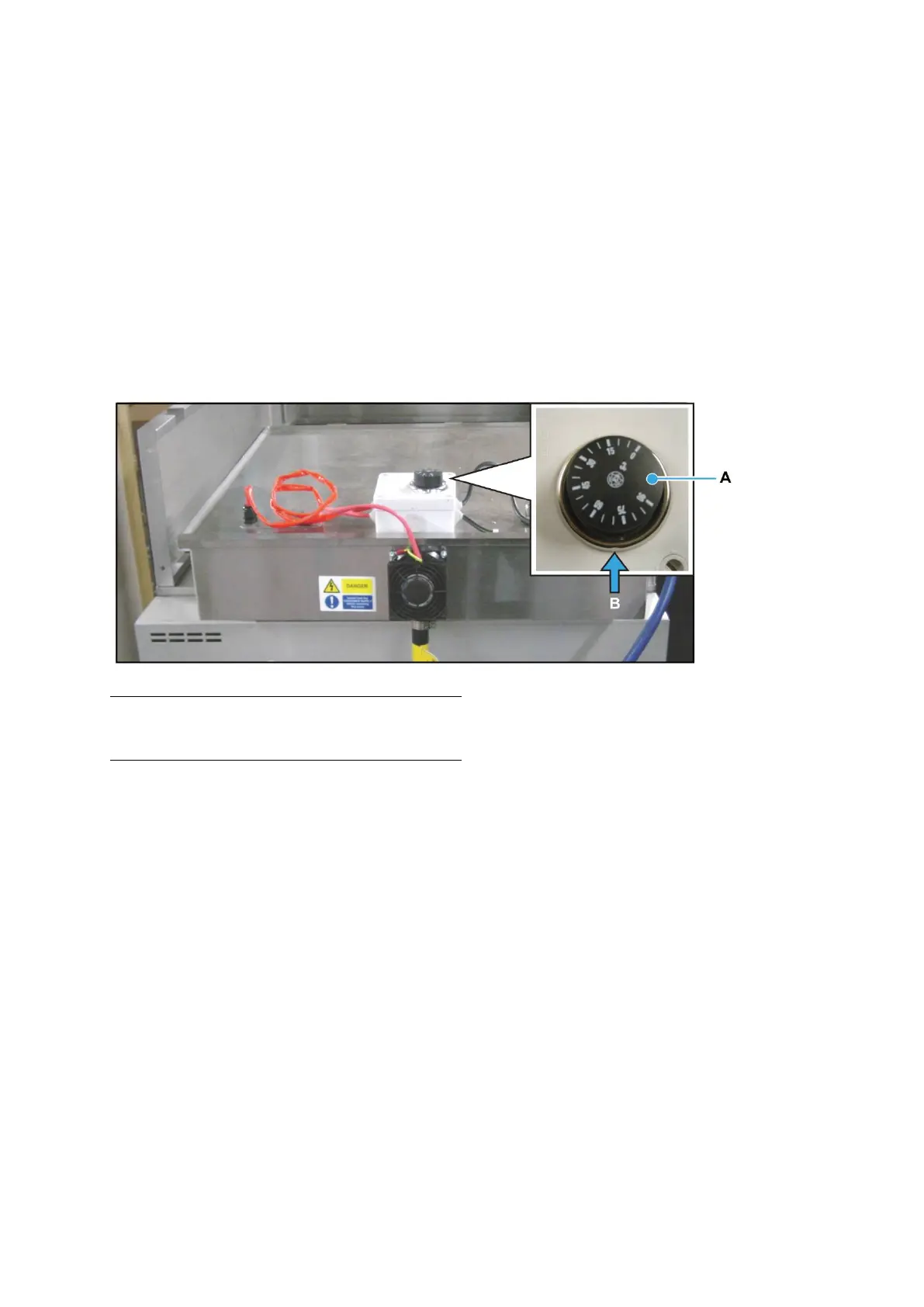

Figure 44: Thermostat control on the condenser
A. Thermostat control
B. Setting position
