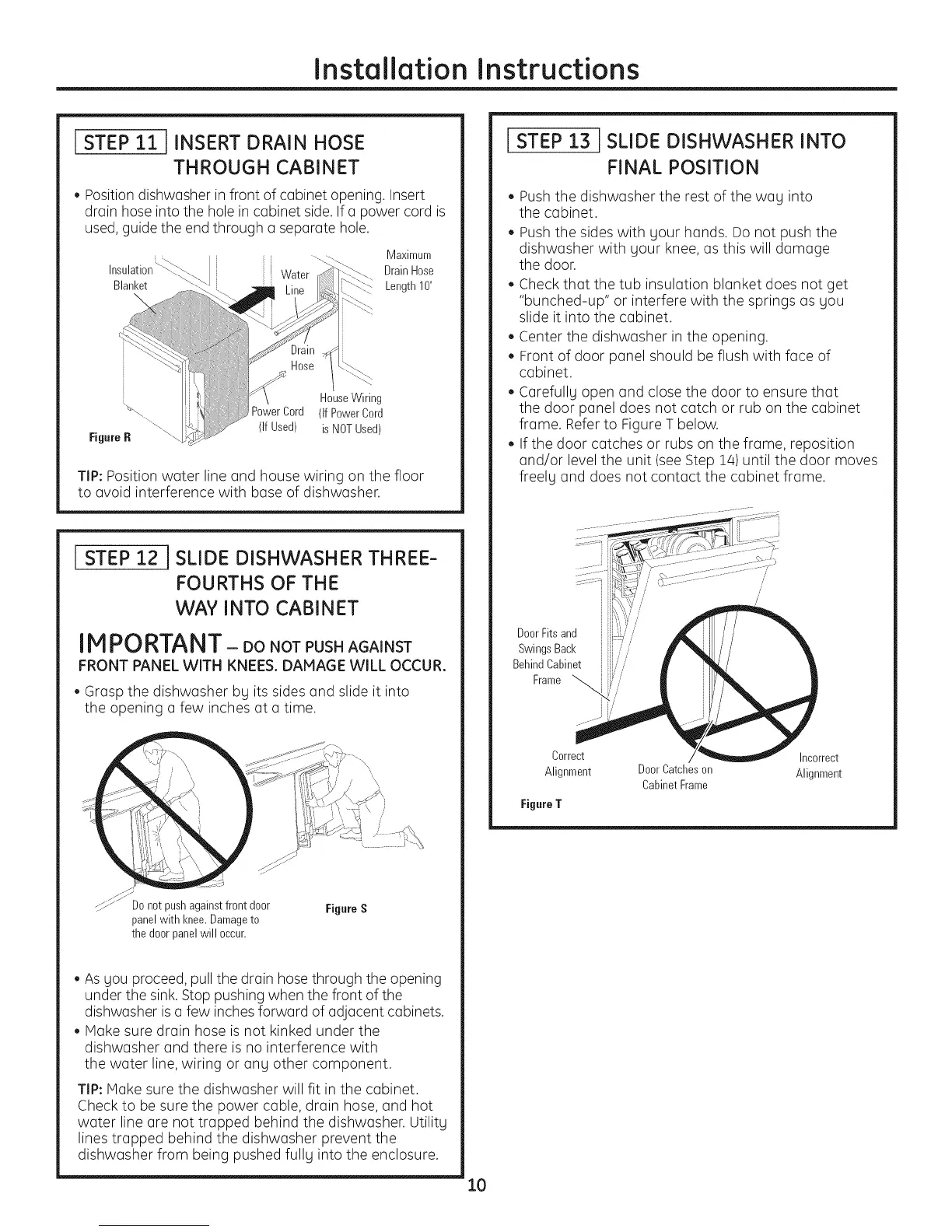

Installation Instructions
STEP 11 INSERT DRAIN HOSE
THROUGH CABINET
• Position dishwasher in front of cabinet opening. Insert
drain hose into the hole in cabinet side. Ifa power cord is
used, guide the end through a separate hole.
Maximum
Insulation DrainHose
Blanket Length10'
Hose
HouseWiring
..... PowerCord (If PowerCord
.......-. (If Used) is NOTUsed)
FigureR
TIP: Position water line and house wiring on the floor
to avoid interference with base of dishwasher.
STEP 12 JSLIDE DISHWASHER THREE-
FOURTHS OF THE
WAY INTO CABINET
IMPORTANT- DONOTPUSHAGAINST
FRONT PANEL WITH KNEES. DAMAGE WILL OCCUR.
,,Grasp the dishwasher bU its sides and slide it into
the opening a few inches at a time.
x
Donotpushagainstfront door
panelwith knee.Damageto
the doorpanelwill occur.
FigureS
• As you proceed, pull the drain hose through the opening
under the sink. Stop pushing when the front of the
dishwasher is a few inches forward of adjacent cabinets.
• Make sure drain hose is not kinked under the
dishwasher and there is no interference with
the water line,wiring or any other component.
TIP: Make sure the dishwasher will fit in the cabinet.
Check to be sure the power cable, drain hose, and hot
water line are not trapped behind the dishwasher. Utility
lines trapped behind the dishwasher prevent the
dishwasher from being pushed fully into the enclosure.
STEP 13 SLIDE DISHWASHER INTO
FINAL POSITION
• Push the dishwasher the rest of the way into
the cabinet.
• Push the sides with your hands. Do not push the
dishwasher with your knee, as this will damage
the door.
• Check that the tub insulation blanket does not get
"bunched-up" or interfere with the springs as you
slide it into the cabinet.
• Center the dishwasher in the opening.
• Front of door panel should be flush with face of
cabinet.
• Carefully open and close the door to ensure that
the door panel does not catch or rub on the cabinet
frame. Referto Figure T below.
• If the door catches or rubs on the frame, reposition
and/or level the unit (seeStep 14) until the door moves
freely and does not contact the cabinet frame.
i
DoorFitsand
SwingsBack
BehindCabinet
Frame _
i
, ................,,,,,'
Correct
Alignment
FigureT
DoorCatcheson
CabinetFrame
Incorrect
Alignment
10
