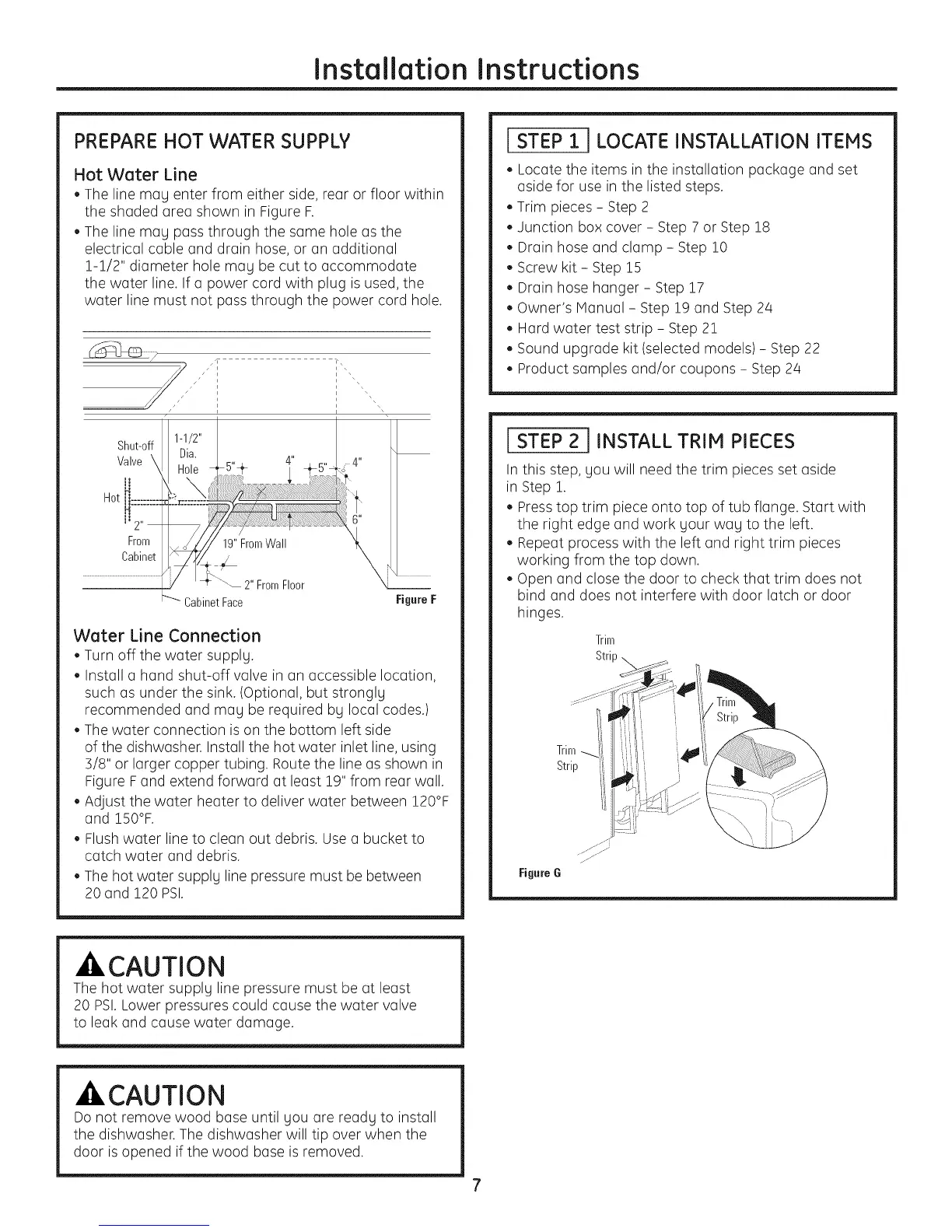

Installation Instructions
PREPARE HOT WATER SUPPLY
Hot Water Line
* The line mag enter from either side, rear or floor within
the shaded area shown in Figure F.
* The line mag pass through the same hole as the
electrical cable and drain hose, or an additional
1-!/2" diameter hole mag be cut to accommodate
the water line. If a power cord with plug is used, the
water line must not pass through the power cord hole.
i
i
i
i
i
FigureF
Water Line Connection
* Turn off the water supply.
* Install a hand shut-off valve in an accessible location,
such as under the sink. (Optional, but stronglg
recommended and mag be required bg local codes.)
* The water connection ison the bottom left side
of the dishwasher. Install the hot water inlet line, using
3/8" or larger copper tubing. Route the line as shown in
Figure Fand extend forward at least 19" from rear wall.
* Adjust the water heater to deliver water between 120°F
and !50°F.
* Flush water line to clean out debris. Use a bucket to
catch water and debris.
* The hot water supplg line pressure must be between
20 and 120 PSI.
STEP :I JLOCATE INSTALLATION ITEMS
* Locate the items in the installation package and set
aside for use in the listed steps.
* Trim pieces - Step 2
* Junction box cover- Step 7 or Step 18
* Drain hose and clamp- Step !0
* Screw kit - Step 15
* Drain hose hanger- Step 17
* Owner's Manual - Step 19 and Step 24
* Hard water test strip - Step 21
* Sound upgrade kit (selected models) - Step 22
* Product samples and/or coupons - Step 24
STEP 2 I INSTALL TRIM PIECES
In this step, gou will need the trim pieces set aside
in Step !.
* Presstop trim piece onto top of tub flange. Start with
the right edge and work gour wag to the left.
* Repeat process with the left and right trim pieces
working from the top down.
* Open and close the door to check that trim does not
bind and does not interfere with door latch or door
hinges.
Trim
Strip
Trim
Strip
FigureG
A' CAUTION
The hot water supplg line pressure must be at least
20 PSI.Lower pressures could cause the water valve
to leak and cause water damage.
,/kCAUTION
Donot remove wood base until gou are readg to install
the dishwasher. The dishwasher will tip over when the
door is opened if the wood base isremoved.
