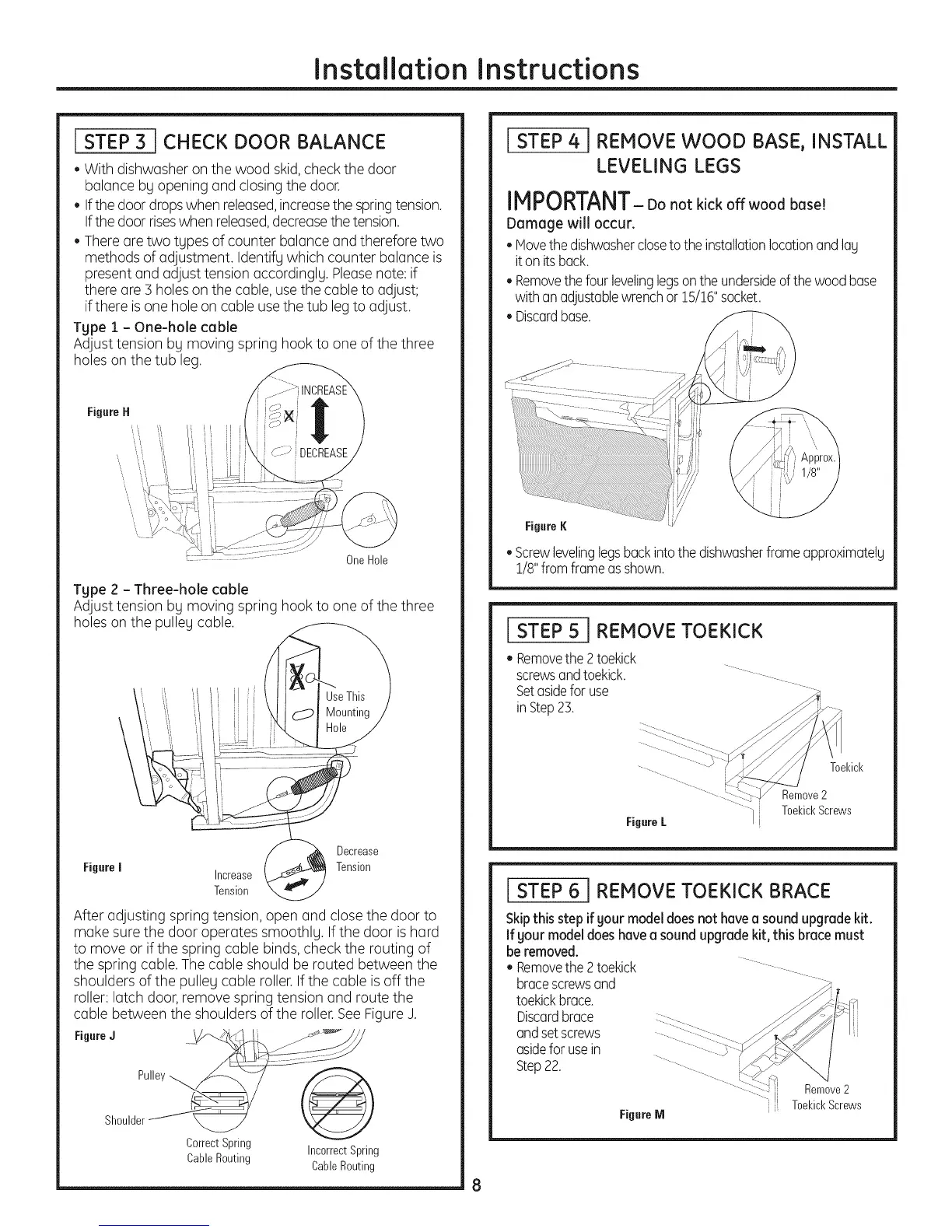

Installation Instructions
ISTEP 3 1CHECK DOOR BALANCE
• With dishwasher on the wood skid,check the door
balance bg opening and closing the door.
• Ifthedoor dropswhen released,increasethe springtension.
Ifthe door riseswhen released,decreasethe tension.
Thereare two types of counter balanceand therefore two
methods of adjustment. Identify which counter balance is
present and adjust tension accordingly. Pleasenote: if
there are 5 holeson the cable, use the cable to adjust;
if there isone hole on cable usethe tub legto adjust.
Type 1 - One-hole cable
Adjust tension by moving spring hook to one of the three
holes on the tub leg.
One Hole
Type 2 - Three-hole cable
Adjust tension bUmoving spring hook to one of the three
holes on the pulley cable.
\
Decrease
Figure I Increase Tension
Tension
After adjusting spring tension, open and close the door to
make sure the door operates smoothly. Ifthe door is hard
to move or if the spring cable binds, check the routing of
the spring cable. The cable should be routed between the
shoulders of the pulley cable roller. If the cable is off the
roller: latch door,remove spring tension and route the
cable between the shoulders of the roller.SeeFigureJ.
Figure J ___
Pulley
Shoulder ___
Correct Spring Incorrect Spring
Cable Routing Cable Routing
STEP 4 JREMOVE WOOD BASE, INSTALL
LEVELING LEGS
IMPORTANT-Donotkickoffwood base!
Damage will occur.
• Movethedishwasherdoseto the installationlocationandlag
iton itsback.
• Removethefourlevelinglegsontheundersideofthewoodbase
withan adjustablewrenchor 15/16"socket.
• Discardbase.
_%; .........
Figure K
• Screwlevelinglegsbackintothe dishwasherframeapproximately
1/8"fromframeasshown.
STEP 5 JREMOVE TOEKICK
• Removethe 2toekick
screwsandtoekick.
Setasideforuse
inStep23.
Figgre L
Toekick
Remove2
ToekickScrews
STEP 6 I REMOVE TOEKICK BRACE
Skipthis step ifyour modeldoesnot havea soundupgradekit.
If your modeldoeshavea soundupgradekit, this brace must
beremoved.
• Removethe 2toekick
bracescrewsand
toekickbrace.
Discardbrace
andsetscrews
asidefor usein
Step22.
Figgre M
Remove2
:: ToekickScrews
To Next Page
