Monogram ZBD6900P30II - Advance Planning; Prepare Dishwasher Enclosure

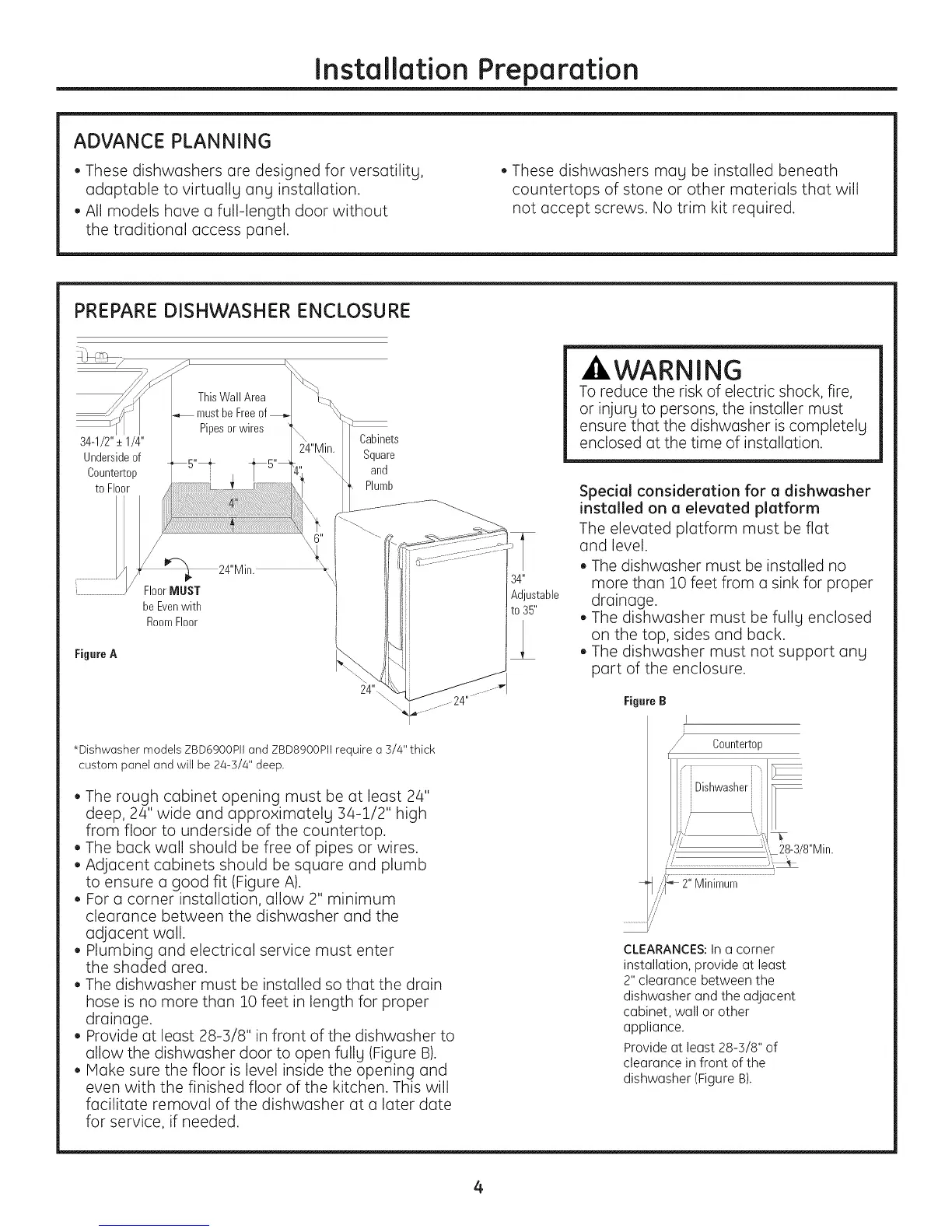

Installation Preparation
ADVANCE PLANNING
• These dishwashers are designed for versatilitg,
adaptable to virtuallg ang installation.
• All models have a full-length door without
the traditional access panel.
• These dishwashers mag be installed beneath
countertops of stone or other materials that will
not accept screws. No trim kit required.
PREPARE DISHWASHER ENCLOSURE
34-1/2"+ 1/4"
Undersideof
Countertop
to Floor
Figure A
ThisWall Area
mustbe
Pipesorwires
._ Cabinets
,n. Square
_ and
_k Plumb
FloorMUST
be Evenwith
RoomFloor
\,
\\
24"Min.
*Dishwasher models ZBD6900PII and ZBD8900PlI require a 3/4" thick
custom panel and will be 24-3/4" deep.
• The rough cabinet opening must be at least 24"
deep, 24" wide and approximatelg 34-1/2" high
from floor to underside of the countertop.
• The back wall should be free of pipes or wires.
• Adjacent cabinets should be square and plumb
to ensure a good fit (Figure A).
• For a corner installation, allow 2" minimum
clearance between the dishwasher and the
adjacent wall.
• Plumbing and electrical service must enter
the shaded area.
• The dishwashermust be installedso thatthe drain
hose isno more than i0 feetinlengthforproper
drainage.
• Provideatleast28-3/8"infrontofthe dishwasherto
allowthe dishwasherdoor toopen fullg(FigureB).
• Make surethe floorislevelinsidethe opening and
even with the finished floor of the kitchen. This will
facilitate removal of the dishwasher at a later date
for service, if needed.
Adjustable
to 35"
'kWARNING
To reduce the risk of electric shock, fire,
or injurg to persons, the installer must
ensure that the dishwasher is completelg
enclosed at the time of installation.
Special consideration for a dishwasher
installed on a elevated platform
The elevated platform must be flat
and level.
• The dishwasher must be installed no
more than 10 feet from a sink for proper
drainage.
• The dishwasher must be fullg enclosed
on the top, sides and back.
The dishwasher must not support any
part of the enclosure.
Figure B
I
Countertop
CLEARANCES:In a corner
installation, provide at least
2" clearance between the
dishwasher and the adjacent
cabinet, wall or other
appliance.
Provide at least 28-3/8" of
clearance in front of the
dishwasher (Figure B).
4
