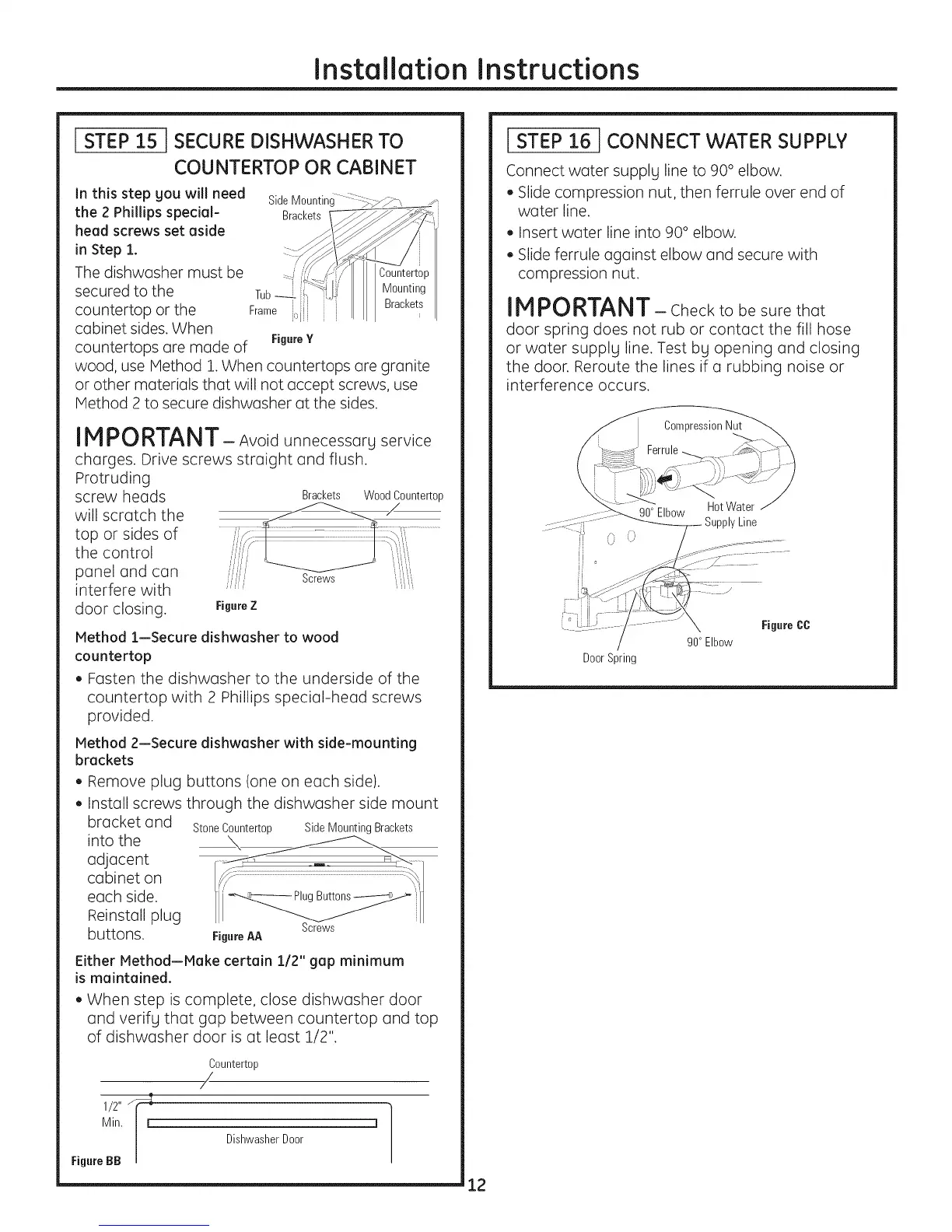

Installation Instructions
STEP 15 SECURE DISHWASHER TO
COUNTERTOP OR CABINET
In this step gou will need
the 2 Phillips special-
head screws set aside
in Step 1.
The dishwasher must be
secured to the Tub--_
countertop or the Frame
cabinet sides. When
countertops are made of FigureY
SideMounting :::::_i_
wood, use Method i. When countertops are granite
or other materials that will not accept screws, use
Method 2 to secure dishwasher at the sides.
IMPORTANT- Avoidunnecessargservice
charges. Drive screws straight and flush.
Protruding
screw heads Brackets Wood Countertop
will scratch the "/
top or sides of
the control
panel and can Screws
interfere with
door closing. Figurez
Method 1--Secure dishwasher to wood
countertop
• Fasten the dishwasher to the underside of the
countertop with 2 Phillips special-head screws
provided.
Method 2--Secure dishwasher with side-mounting
brackets
• Remove plug buttons (one on each side).
• Install screws through the dishwasher side mount
bracket and StoneCountertop SideMounting Brackets
into the
adjacent
cabinet on
each side.
Reinstall plug
Screws
buttons. FigureAA
Either Method--Make certain 112" gap minimum
is maintained.
• When step is complete, close dishwasher door
and verifg that gap between countertop and top
of dishwasher door is at least 1/2".
1/2"
Min.
FigureBB
Countertop
/
/
DishwasherDoor
STEP 16 CONNECT WATER SUPPLY
Connect water supplg line to 90° elbow.
• Slide compression nut, then ferrule over end of
water line.
Insert water line into 90° elbow.
Slide ferrule against elbow and secure with
compression nut.
IMPORTANT-check tobe sure that
door springdoes not rub orcontactthe fillhose
orwater supplg line.Testbg opening and closing
the door.Reroutethe linesifa rubbingnoiseor
interference occurs.
DoorSpring
SupplyLine
go° Elbow
FigureCC
12
