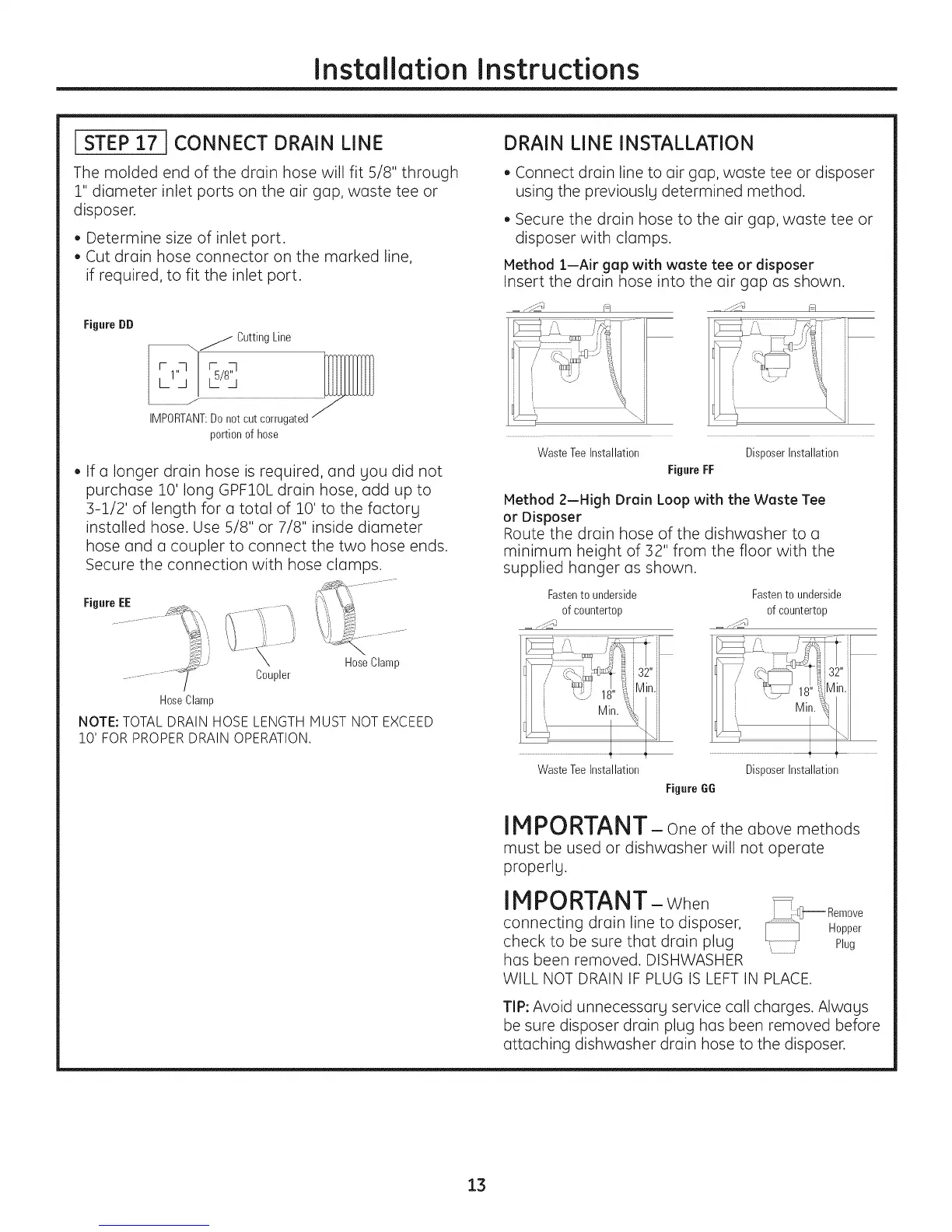

STEP 17 CONNECT DRAIN LINE
The molded end of the drain hose will fit 5/8" through
1" diameter inlet ports on the air gap, waste tee or
disposer.
• Determine size of inlet port.
• Cut drain hose connector on the marked line,
if required, to fit the inlet port.
FigureDD
j CuttingLine
IMPORTANT:Donot cut corrugated
portionof hose
• If a longer drain hose is required, and you did not
purchase 10' long GPFIOL drain hose, add up to
3-1/2' of length for a total of 10' to the factory
installed hose. Use 5/8" or 7/8" inside diameter
hose and a coupler to connect the two hose ends.
Secure the connection with hose clamps.
DRAIN LINE INSTALLATION
• Connect drain line to air gap, waste tee or disposer
using the previouslg determined method.
• Secure the drain hose to the air gap, waste tee or
disposer with clamps.
Method 1--Air gap with waste tee or disposer
Insert the drain hose into the air gap as shown.
Waste Tee Installation
DisposerInstallation
FigureFF
Method 2--High Drain Loop with the Waste Tee
or Disposer
Route the drain hose of the dishwasher to a
minimum height of 32" from the floor with the
supplied hanger as shown.
Fasten to underside Fasten to underside
of countertop of countertop
Hose Clamp
Coupler
HoseClamp
NOTE: TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED
!0' FOR PROPER DRAIN OPERATION.
Waste Tee Installation
Figure GG
DisposerInstallation
IMPORTANT-Oneof the above methods
must be used or dishwasher will not operate
properly.
IMPORTANT-when
connecting drain line to disposer,
check to be sure that drain plug
has been removed. DISHWASHER
WILL NOT DRAIN IF PLUG IS LEFT IN PLACE.
i :E?-----Remove
Hopper
_ Plug
TIP: Avoid unnecessarg service call charges. Alwags
be sure disposer drain plug has been removed before
attaching dishwasher drain hose to the disposer.
