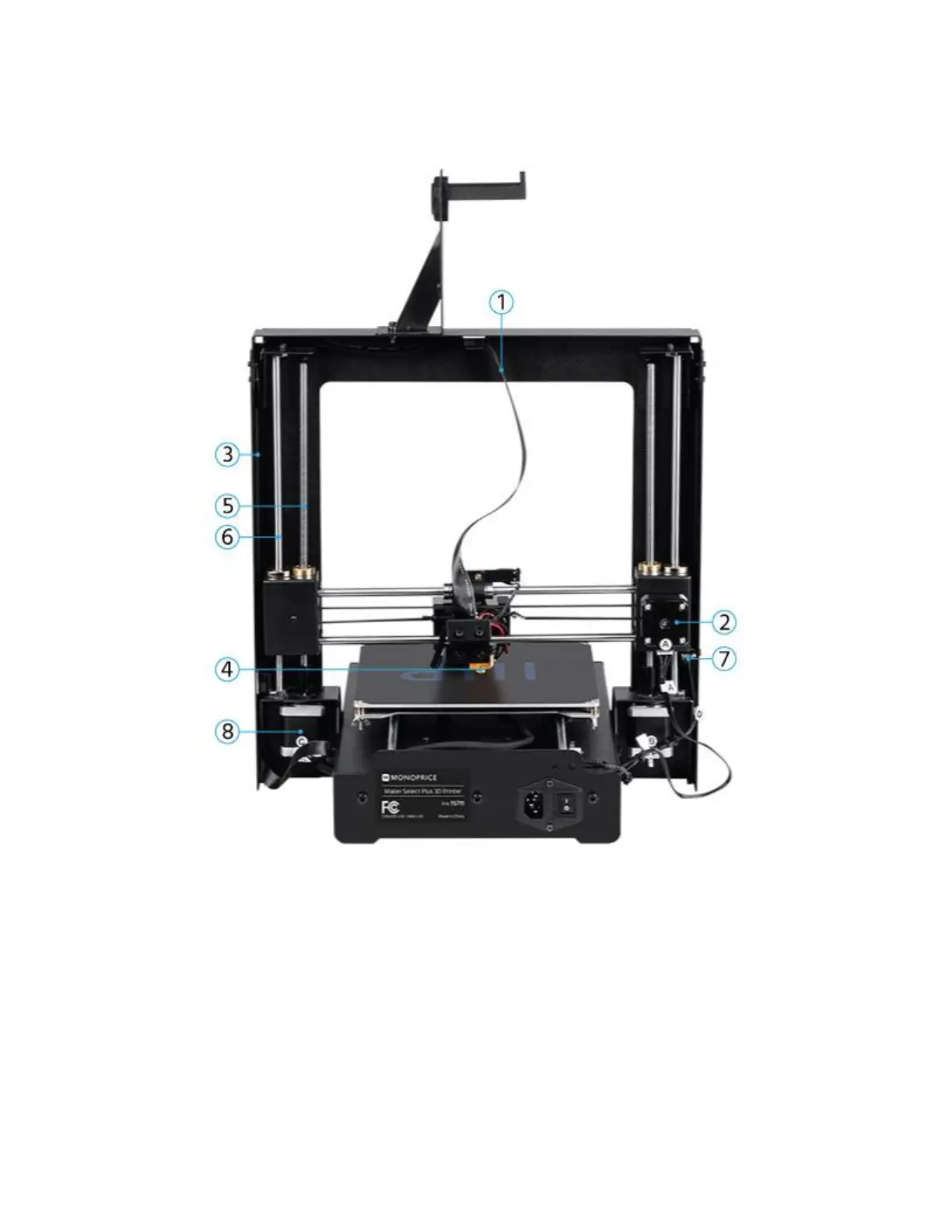

Rear View
1. Extruder Cable
2. X Axis Stepper Motor
3. Extruder Cable Way
4. Extruder
5. Z Drive Screw
6. Z Rod
7. Z Stop Micro Switch
8. Z Axis Stepper Motor
