Instrument panel (Dashboard)

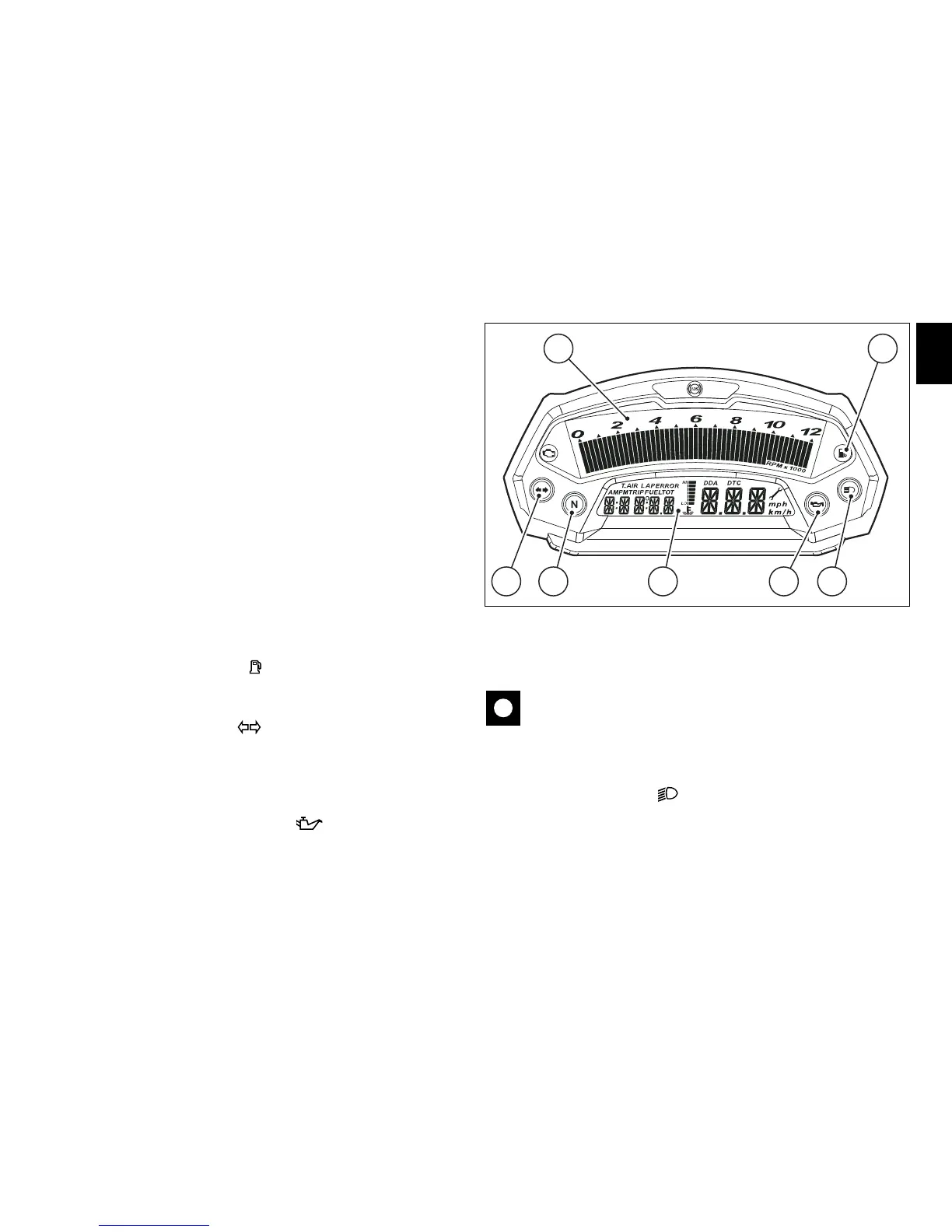

Instrument panel
1) LCD, (see page 14).
2) REVOLUTION COUNTER (rpm).
Shows the engine rotation speed/minute.
3) NEUTRAL LIGHT N (GREEN).
Comes on when in neutral position.
4) FUEL WARNING LIGHT (AMBER YELLOW).
Comes on when fuel is low and there are about 3.5 litres of
fuel left in the tank.
5) TURN SIGNAL LIGHTS (GREEN).
Illuminates and flashes when the turn signal is in operation.
If a turn signal does not work (ex. burnt out bulb) its incorrect
operation is signalled by making the light flash twice as fast
as in comparison to correct operation.
6) ENGINE OIL PRESSURE LIGHT (RED).
Comes on when engine oil pressure is too low. It briefly
comes on when the ignition is switched to ON and normally
goes out a few seconds after engine starts.
It may shortly come on when the engine is hot, however, it
should go out as the engine revs up.
Important
If this light (6) stays on, stop the engine or it may suffer
severe damage.
The case may occur that the light turns on briefly if the
engine is very hot; it will turn off as the engine rpms increase.
7) HIGH BEAM LIGHT (BLUE).
Comes on when high beam is on.
