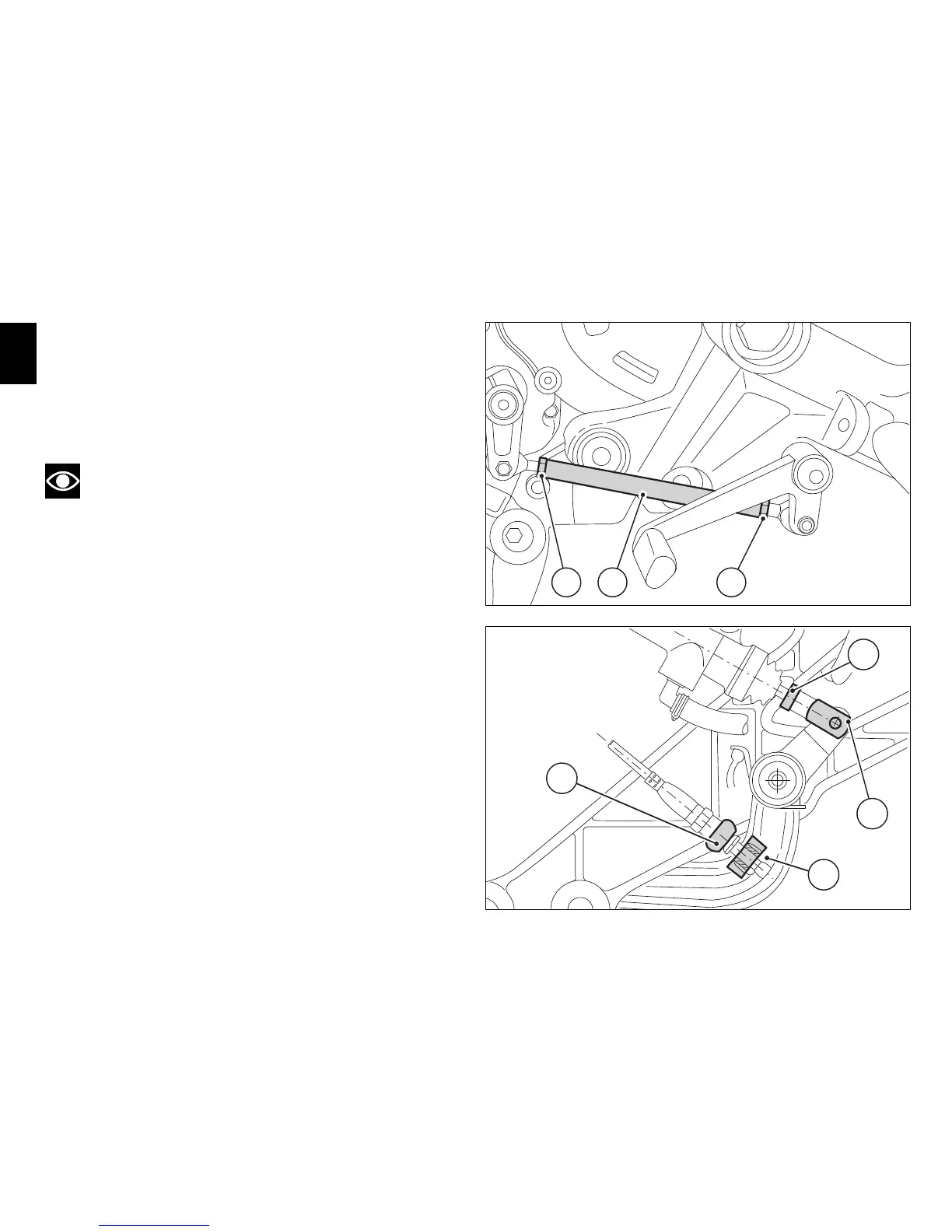

Adjusting the position of the gearchange
and rear brake pedals
The gear change and rear brake pedals can be adjusted to
suit the preferred riding position of each rider.
To adjust the position, proceed as follows:
hold the rod (1) and loosen the counter nuts (2) and (3).
Note
Nut (2) has a left-hand thread.
Turn the rod (1) using an open-ended wrench on the flats to
move the gear change pedal to the required position.
Tighten both counter nuts onto the rod.
To adjust the position of the rear brake pedal, proceed as
follows:
loosen counter nut (4).
Turn pedal travel adjusting screw (5) until pedal is in the
desired position.
Tighten the counter nut (4).
Operate the pedal by hand to check that there is 1.5 to 2 mm
of freeplay before the brake bites.
If not, adjust the length of the master cylinder pushrod as
follows.
Slacken off the counter nut (6) on the pushrod.
Tighten the pushrod into fork (7) to increase play, or unscrew
it to reduce it.
Tighten the counter nut (6) and recheck the pedal freeplay.
2 1 3
fig. 47
5
4
7
6
fig. 48
