76
MONTEREY
BOATS
Electrical System
Exhaust
Activates the diverter valve in the exhaust sys-
tem that directs the exhaust either through the
outdrive and propeller or to the thru-hull exhaust
system for increased performance and enhanced
sound.
Engine Data
A momentary switch that toggles through avail-
able engine data that displays on the tachometer
LCD data screen on some models.
Accessory
Reserved for additional 12 volt equipment.
Additional Accessory Switches & Panels
Additional switch panels are located in various
locations in the helm, cockpit and head compart-
ment. The following is a description of additional
panels that may be on your boat and the acces-
sories they control. Some of the accessories
optional equipment on some models and may not
be installed or available on your boat.
Trim Tab Switch
Located in the helm. This switch controls the trim
tabs located on the transom of the boat. Please
refer to the Helm Control Systems chapter for
detailed information on the operation of the trim
tabs.
Engine Trim and Tilt Switch
Located in the helm. This switch is usually installed
in the engine control handle. It controls the
trimming and tilting of the outdrive when the is
shutdown. It will not operate while the engine is
running or when the ignition switch is ON.
Stern Engine Trim and Tilt Switch
Located near the transom door. It allows the
operator to tilt the outdrive at the rear of the boat
for trailering and shallow water situations. Please
refer to the Helm Control Systems chapter and the
engine owner’s manual for information regarding
the proper use of the tilt and trim switch.
KEEP HANDS AND FEET AWAY FROM DRIVE UNIT WHEN
TILTING.

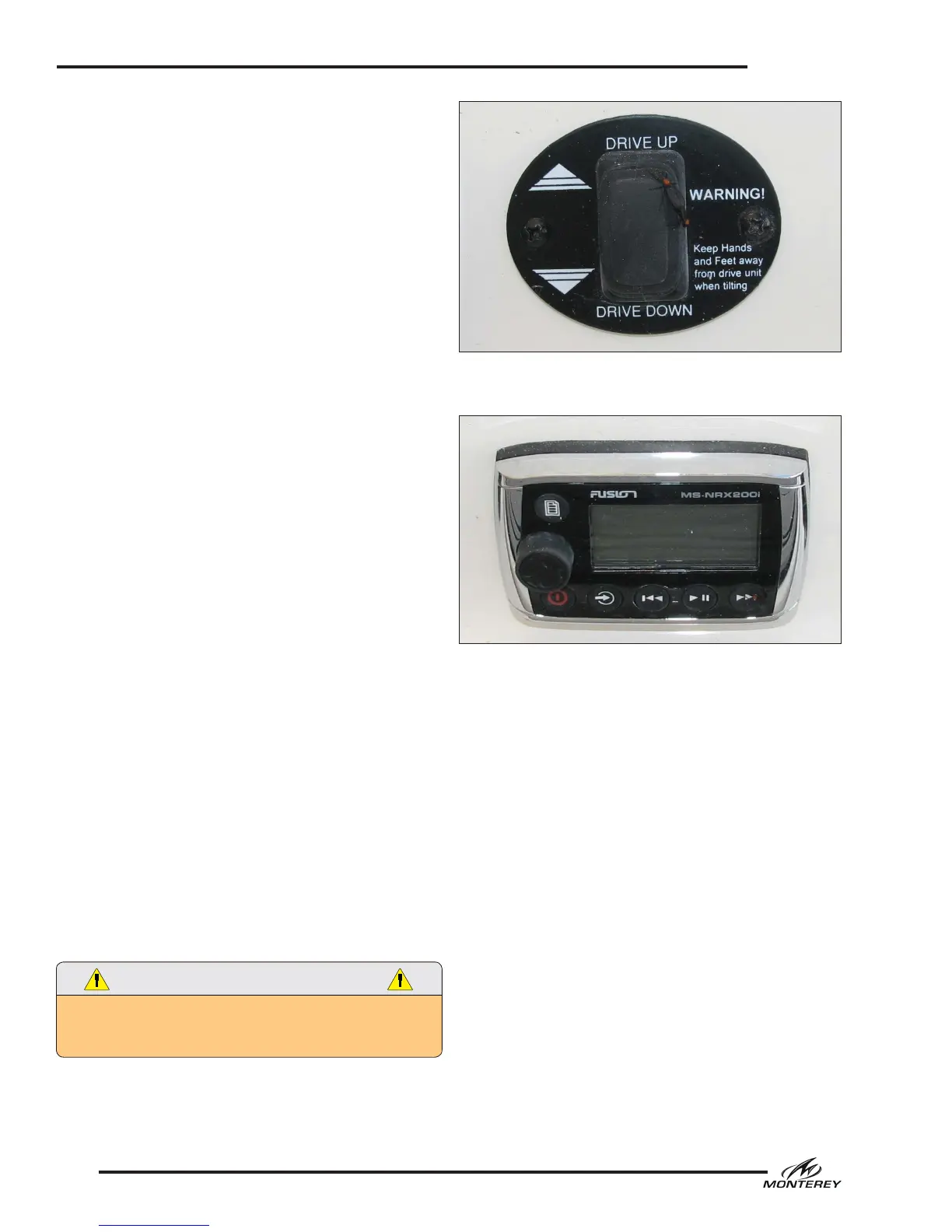

Typical Outdrive Tilt Switch Near Transom Door
Helm Stereo Control Pad
Helm Stereo Control Pad
Located in the helm. Controls the stereo. Refer to
the stereo owner’s manual for details on operating
the stereo control pad.
Stern Mount Stereo Control Pad (Optional)
Located in the stern above the swim platform near
the transom door or aft seat. Controls the stereo.
Refer to the stereo owner’s manual for details on
operating the stereo control pad.
Cockpit Stereo Control Pad (Optional)
Located in the cockpit. Controls the stereo. Refer
to the stereo owner’s manual for details on operat-
ing the stereo control pad.
