Page 5
Proame 2 Transmitter
XG0677 - 141231
Operation
Temperature indication Display
With the system in the "Off" position, press the
Thermostat Key and the Mode Key at the same time.
Look at the LCD screen on the Remote Control to
verify that a C or F is visible to the right of the Room
Temperature display, see gure 5 .
Turn On the Fireplace
With the system Off, turn the manual On/Off switch to on
and press the On/Off Key on the Remote Control. The
manual On/Off switch is located on the right side of the
replace under the valve blind cover. The Remote Control
display will show some other active Icons on the screen.
At the same time the Control Module will activate the
replace. A single "beep" from the Control Module will
conrm reception of the command.
Turn Off the Fireplace
With the system On, press the On/Off Key on the
Remote Control. The Remote Control LCD display will
only show the room temperature, see gure 7. At the
same time the Control Module will turn off the replace. A
single "beep" from the Receiver conrms reception of the
command.
Figure 7. Remote Control display.
Remote-Flame Control
The proame has six (6) ame levels. With the system
on, and the ame level at the maximum in the replace,
pressing the Down Arrow Key once will reduce the ame
height by one step until the ame is turned off.
The Up Arrow Key will increase the ame height each
time it is pressed. If the Up Arrow Key is pressed while
the system is on but the ame is off, the ame will come
on in the high position, see figure 8 & 9.
Figure 8. Flame Off and Flame Level 1.
Figure 9. Flame Level 5 and Flame Level Maximum.

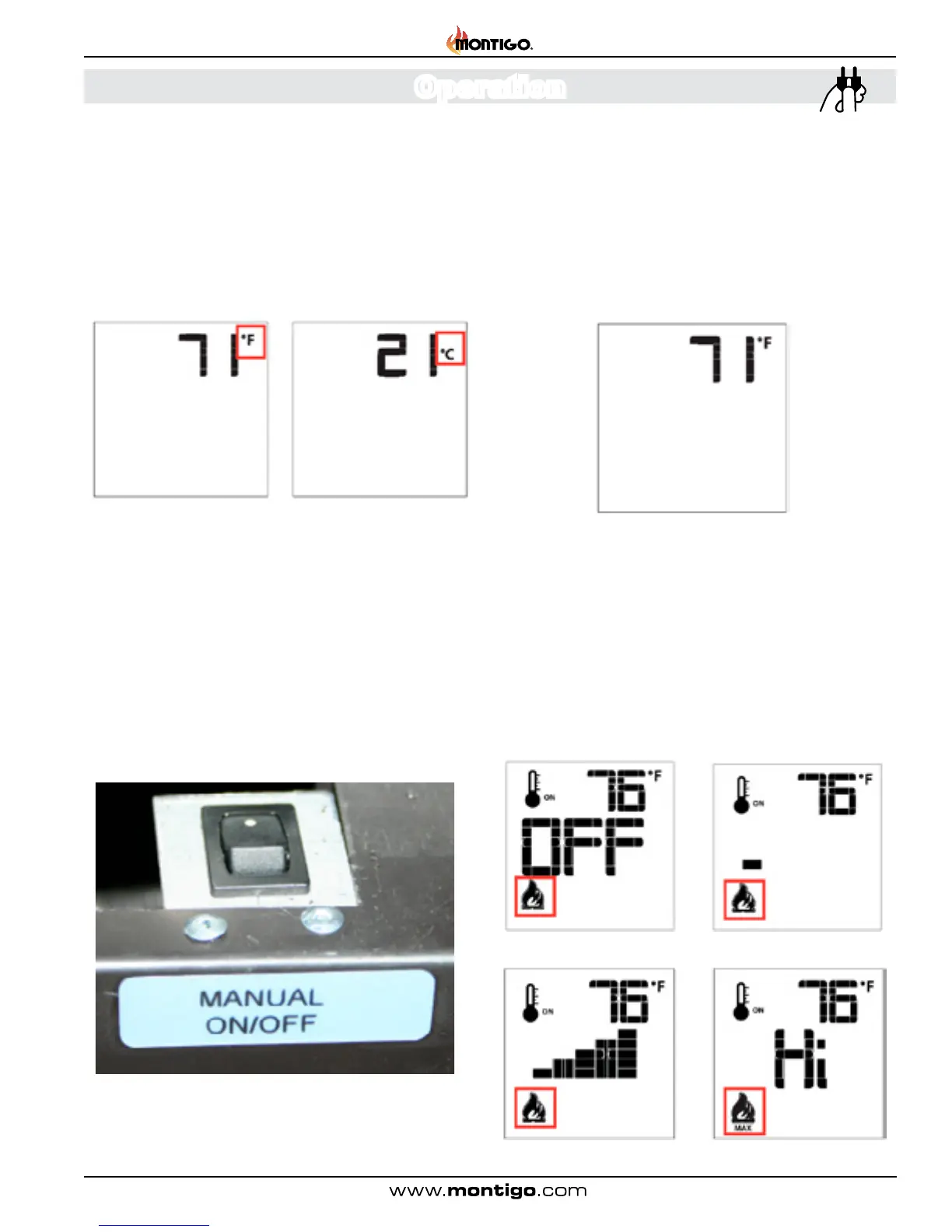

Figure 5. Remote Control display in Farenheit & Celsius.
Figure 6. Manual On/Off Switch
