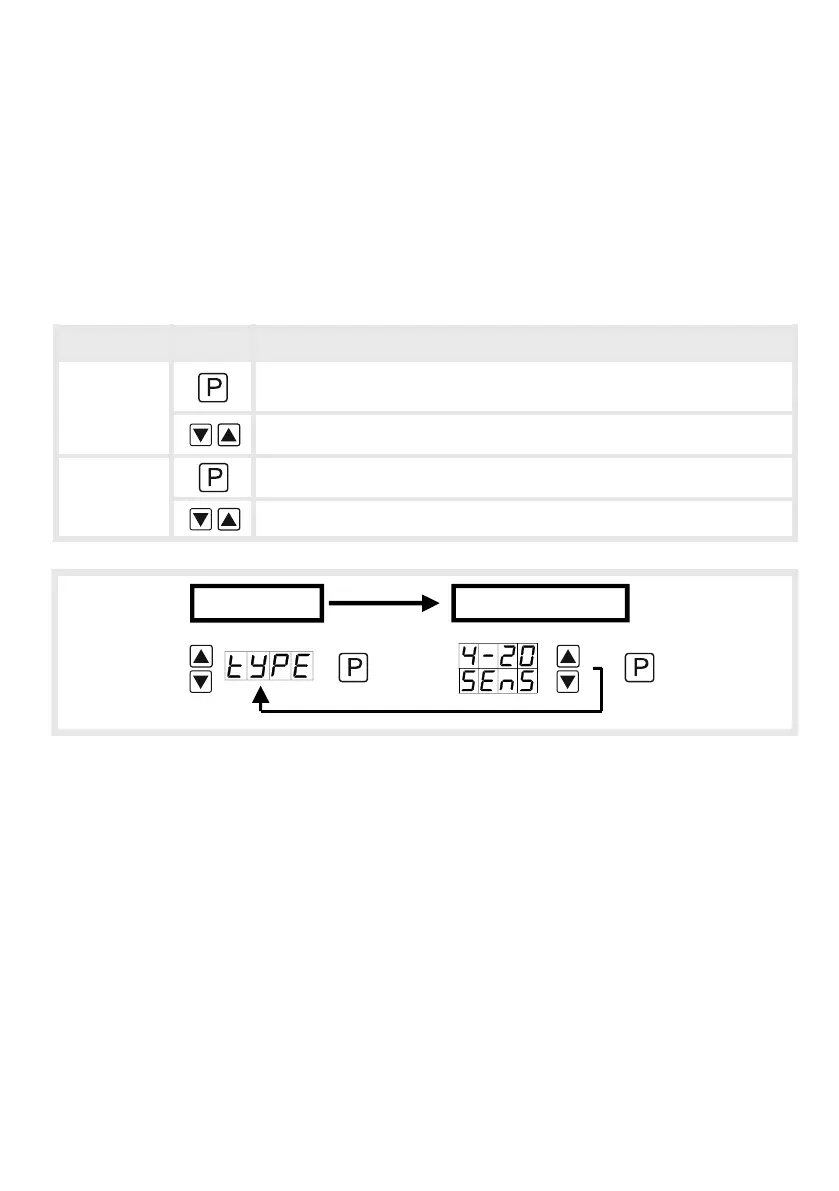

4. Function description and operation
Level Button Description
Menu level
Change to parameterization level with the relevant parameters
For navigation at the menu level
Parameter
level
To confirm the changes made at the parameterization level
To change the value or setting
4
4. Function description and operation
Operation
The operation is divided into two different levels.
Menu Level
Here it is possible to navigate between the individual menu items.
Parameterization level:
The parameters stored in the menu item can be parameterized here.
Functions that can be adjusted or changed are always indicated with a flashing of the
display. Adjustments made at the parameterization level should be always confirmed by
pressing the [P] key to save them. However, the display automatically saves all adjustments
and then switches to operation mode if no further keys are pressed within 10 seconds.
4.1. Programming via configuration software PM-TOOL-MUSB4:
You receive the software on CD incl. an USB-cable with a device adapter. The connection is
done via a 4-pole micromatch connector plug on the back and the PC is connected via an
USB connector plug.
System requirements: PC with USB interface
Software: Windows XP, Windows Vista
With this tool the device configuration can be created, skipped and saved on the PC. Via the
easy to handle program surface the parameter can be changed, whereat the mode of
operation and the possible selection options can be preset via the program.
CAUTION!
During parameterisation with connected measuring signal, make sure that the measuring
signal has no mass supply to the programming plug. The programming adapter is galvanic
not isolated and directly connected with the PC. Via polarity of the input signal, a current can
discharge via the adapter and destroy the device as well as other connected components!
Menu level
Parameter level
Example
