5 ) Two 6’ patch-cords are supplied with the Mini Moog. If you are
using a portable, guitar-type amplifier, run the cord with the
phone plug at each end from the LOW level MAIN OUTPUT jack on
the rear connector strip of the Mini Moog to an input on your
amplifier. If you are using a monitor amplifier, you will
need to use the other cord. Plug the phone plug end into the
HIGH level MAIN OUTPUT jack of the synthesizer, and run the
small phono-plug at the other end into the high level input of
the monitor amplifier (or into the line level input of a tape
r e c o r d e r ) .
The following sections of this guide will be devoted to a
systematic description of individual control functions in relation
to the synthesizer’s component circuits.

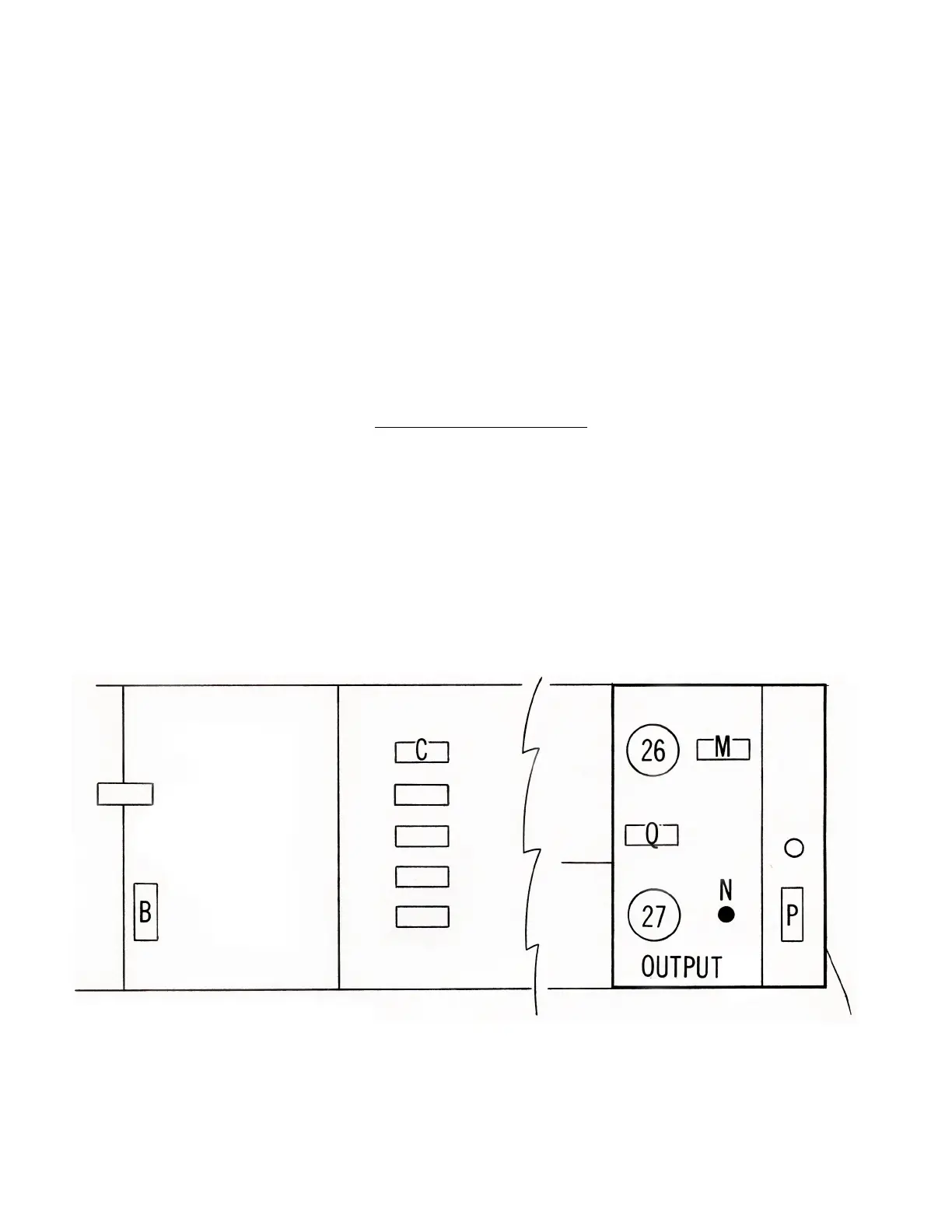

E. OUTPUT SECTION
The Output section of the front panel includes two basic switches:
the POWER switch, which turns the instrument on and off, and the MAIN
OUTPUT switch, which sends the final audio signal out the MAIN OUTPUT
jacks at the rear and into your amplifier. In addition, there are
volume controls for the MAIN OUTPUT and HEADPHONE signals, and an
A-440 switch, all of which will be described below.
3
Fig. 2
