Moog One User Manual

116
LEFT HAND CONTROLLER FUNCTIONS (Continued)

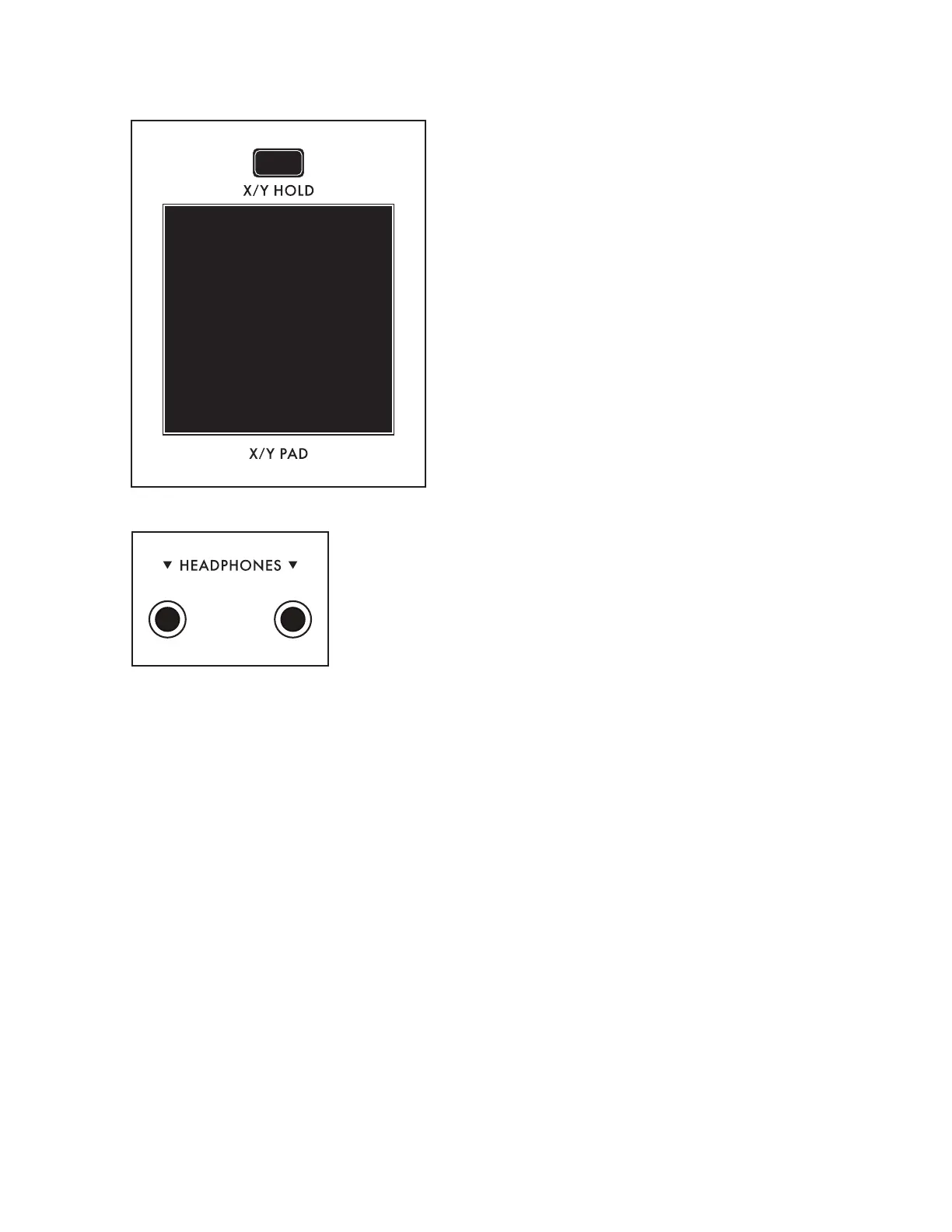

X/Y PAD
Sliding a nger across the X/Y PAD controls two
individual parameters at the same time, in different
amounts. One is assigned to the X axis, the second
to the Y axis. There is also a third axis that can
sense pressure on the pad. Also, anytime the pad is
touched, a gate signal is created that can be used as
a Modulation Matrix source/controller or as a CV Out
source. The current X and Y values can be frozen using
the X/Y HOLD button. This held value can be saved as
part of the Preset, similar to the MOD wheel amount.
HEADPHONES
Moog One provides two 1/4” stereo headphones jacks, located on
the front edge of the LHC panel, allowing you and a friend to both
listen to Moog One without any external ampliers.
LHC MORE PAGE
Pressing the triangular MORE button in the upper right corner of the Left Hand Controller will reveal
a second level of parameters that can be accessed and modied using the interactive portion of the
Center Console. These additional parameters are displayed in the bottom portion of the screen. The
left pane shows a representation of the X/Y PAD surface. The red dot indicates the current position of
the nger on the pad, or the last held position if X/Y HOLD is On. The size of the dot image will change
as more pressure is applied to the X/Y PAD. The right pane shows the current value of the Front Panel
hardware parameters for this module. Tweaking these panel controls will update their values here.
NOTE: Pressing the (now) illuminated MORE button will exit the MORE page and recall the HOME screen.
