142
TUNING

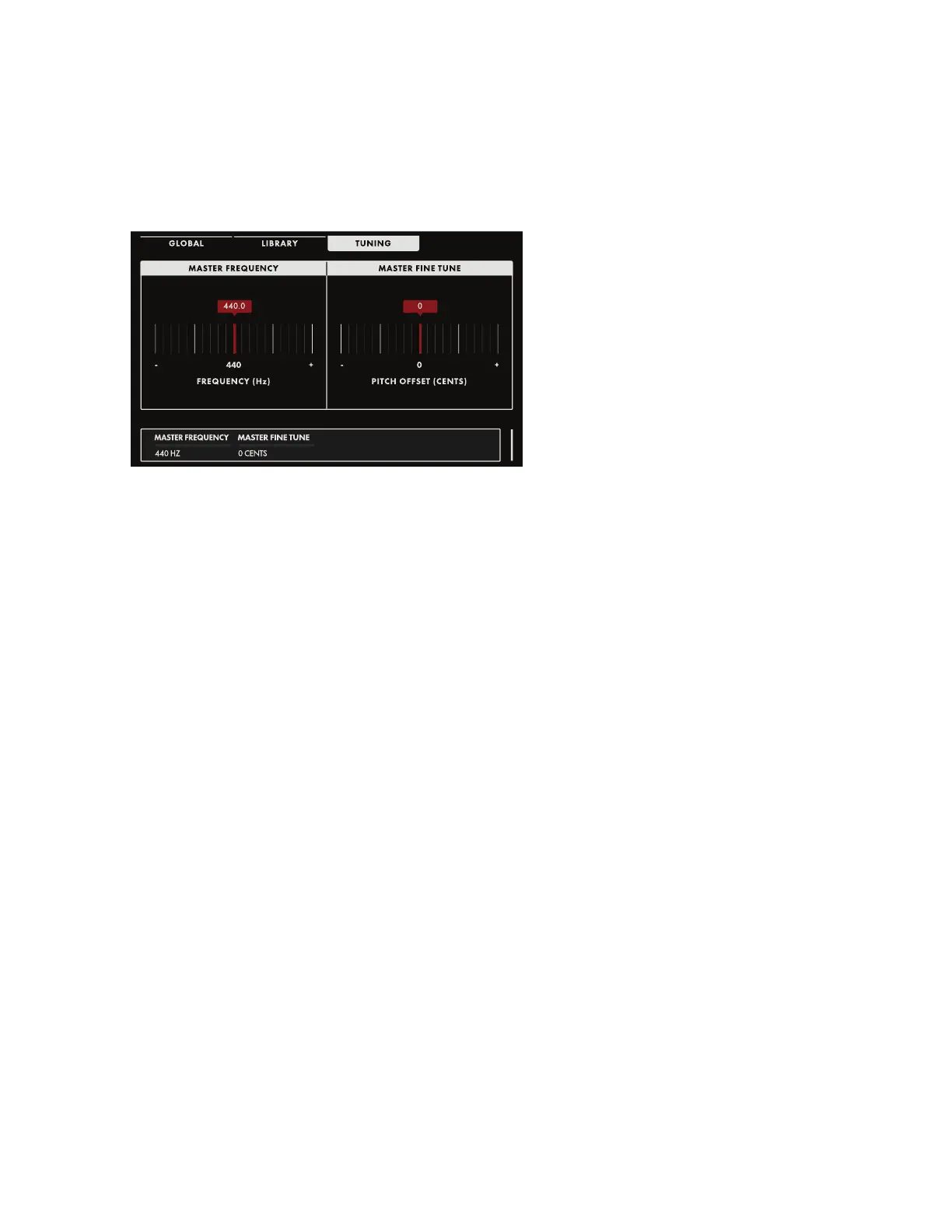

While on the SETTINGS page, press the TUNING Soft Button at the top of the screen to open the
TUNING page. From the TUNING page, you can adjust the Moog One’s MASTER FREQUENCY and
FINE TUNE.
Use the Soft Knobs at the bottom of the screen to set the value of the MASTER FREQUENCY and
MASTER FINE TUNE parameters.
MASTER FREQUENCY (400 Hz to 480 Hz)
This parameter controls the base frequency
for equal-tempered tuning of the Moog
One. This is the reference point for “concert
pitch,” dened as the frequency of the A
note above Middle C (MIDI Note # 69). The
default value is 440 Hz.
MASTER FINE TUNE (-100 CENTS to 0
CENTS to +100 CENTS)
This parameter provides a global offset
in pitch affecting the entire Moog One.
The range is +/- 100 cents; up or down
one semitone. This allows Moog One to
match the pitch of an instrument that
cannot easily be re-tuned, such as an
acoustic piano or pipe organ, or to match
a previously recorded track, etc.
