VCA (Continued)

LEVEL (0 to 10)

The LEVEL knob sets the volume of the active Synth in the Main and

Sub Outputs.

PAN (LEFT to RIGHT)

The PAN knob sets the stereo pan position of the active Synth in the

Main and Sub stereo output mixes. Rotating the knob to left pans the

Synth to the left; rotating the knob to the right pans the Synth to the

right. In the center position, the Synth is panned equally between the

left and right outputs.

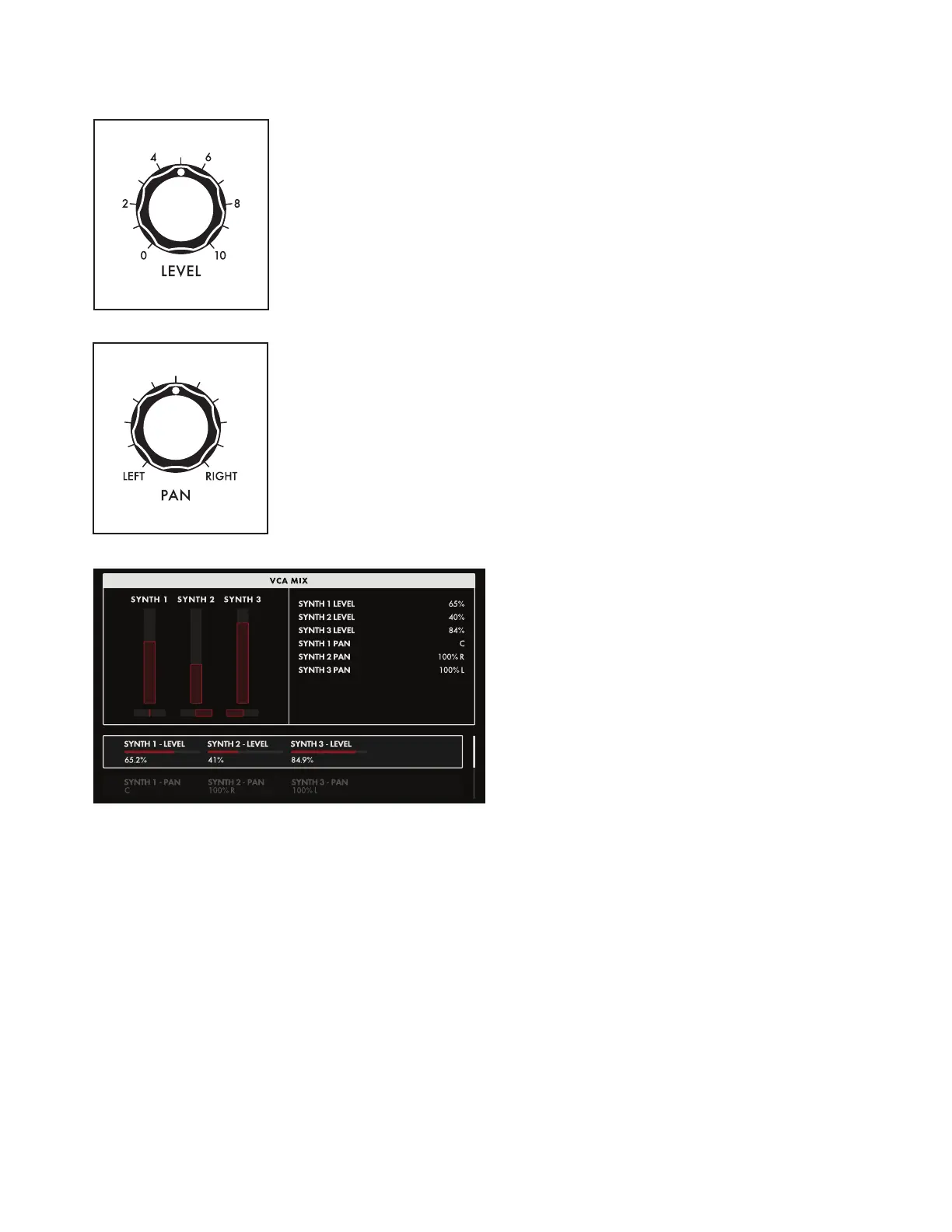

VCA MORE PAGE

Pressing the triangular MORE button in

the upper right corner of the VCA module

will open the VCA MORE page. The VCA

MORE page conveniently places the

Level and Pan controls of all three Synths

together on one page, making it easy

to set the right mix. Panning adjusts the

placement of the sound in the stereo eld

when using the MAIN OUT Left and Right

jacks or the SUB OUT Left and Right jacks.

The left pane offers a visual representation

of the Level and Pan settings of each

Synth. The right pane shows the current

value of the Front Panel hardware parameters for this module. The Front Panel controls can only adjust

the active Synth. Using the parameters at the bottom of the screen allows all Synths to be adjusted

here. In either case, the values shown in the right pane will be update when the controls are edited.

NOTE: Pressing the (now) illuminated MORE button will exit the MORE page and recall the HOME screen.

The onscreen MORE page parameters are edited using the four Soft Knobs below the screen.

CHANGING THE VALUE

Rotate the Soft Knob below each parameter name to change its value. In some cases, the Soft Knob

simply turns a function on or off. In other cases, the Soft Knob may choose from a list of values or

settings, and in other cases, the Soft Knob is dialing in a value – either absolute or a percentage.

SELECTING A ROW

The scroll bar at the right edge indicates the current row. Rotate the Master Encoder to the right to

highlight the next row of parameters. Rotating the Master Encoder to the left will select a previous row.

Again, rotate the Soft Knob below the parameter to change its value.
