MSST5/10-S UserManual
MSST5/10-S UserManual
3.4.2 STEP&DIR Digital Inputs
The S drives include two high speed inputs called STEP and DIR. They accept 5 volt single-ended
or differential signals, up to 2 MHz. EN is a 5 to 12 volt standard digital input that can be used for
motor enable, alarm reset, or oscillator speed change.
All inputs are congured using the ST Congurator software.

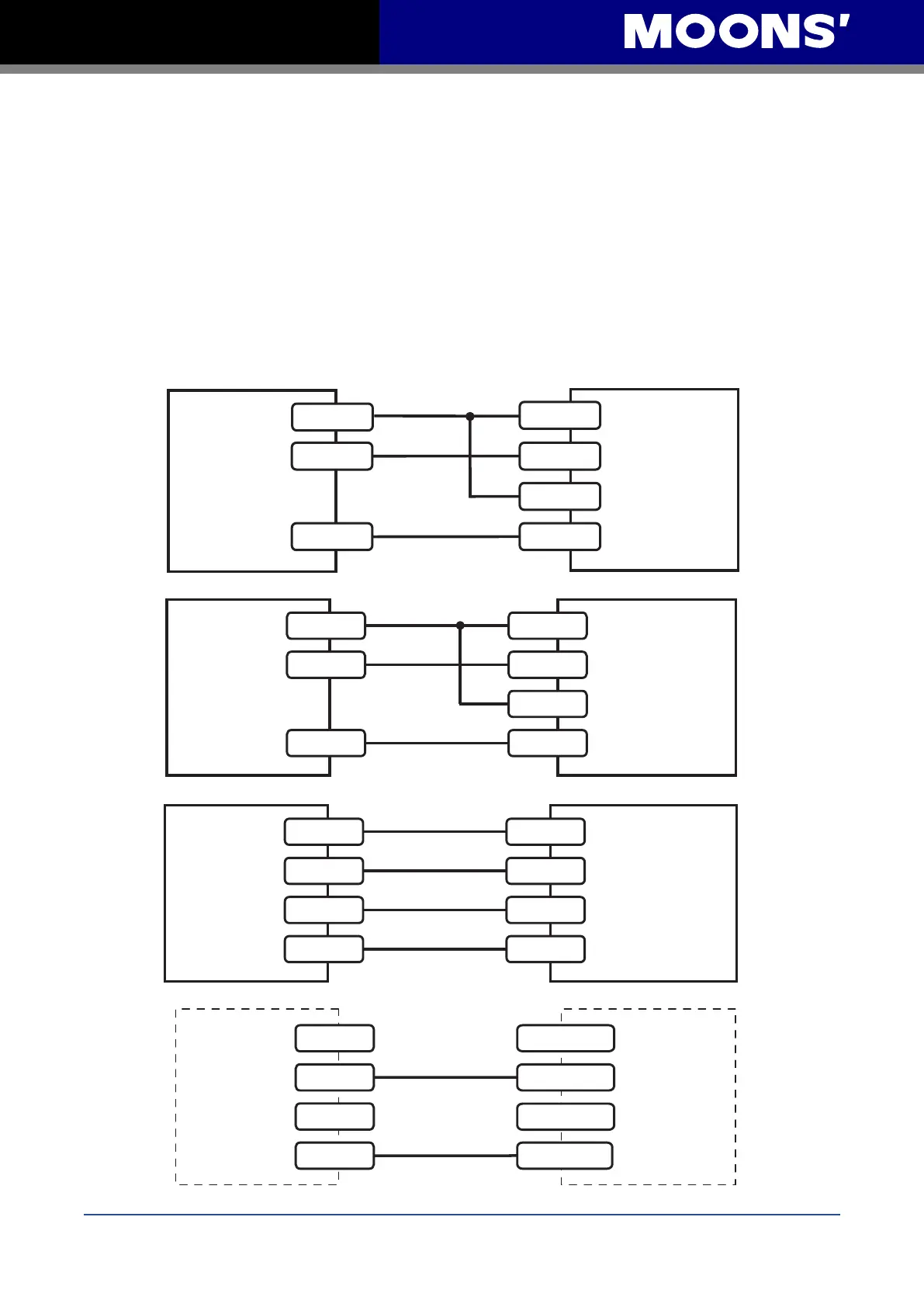

STEP and DIR inputs can connect to an indexer, a master encoder or CNC hand wheel for follow-
ing applications, or they can be used for connecting sensors, switches and other electronic de-
vices. They can be used as the run/stop and direction inputs for velocity (oscillator) mode.
STEP
DIR
DIR+
STEP+
STEP-
+5V OUT
DIR-
MSST5/10-S
Indexer
with
Sinking
Outputs
COM
DIR
STEP
DIR-
DIR+
STEP-
STEP+
MSST5/10-S
Indexer
with
Sourcing
Outputs
DIR+
DIR-
STEP+
STEP-
DIR+
DIR-
STEP+
STEP-
MSST5/10-S
Indexer
with
Differential
Outputs
A+
B+
B-
X1/STEP+
X1/STEP-
X1/DIR+
X1/DIR-
Drive
Master
Encoder
A-
