MSST5/10-S UserManual
MSST5/10-S UserManual

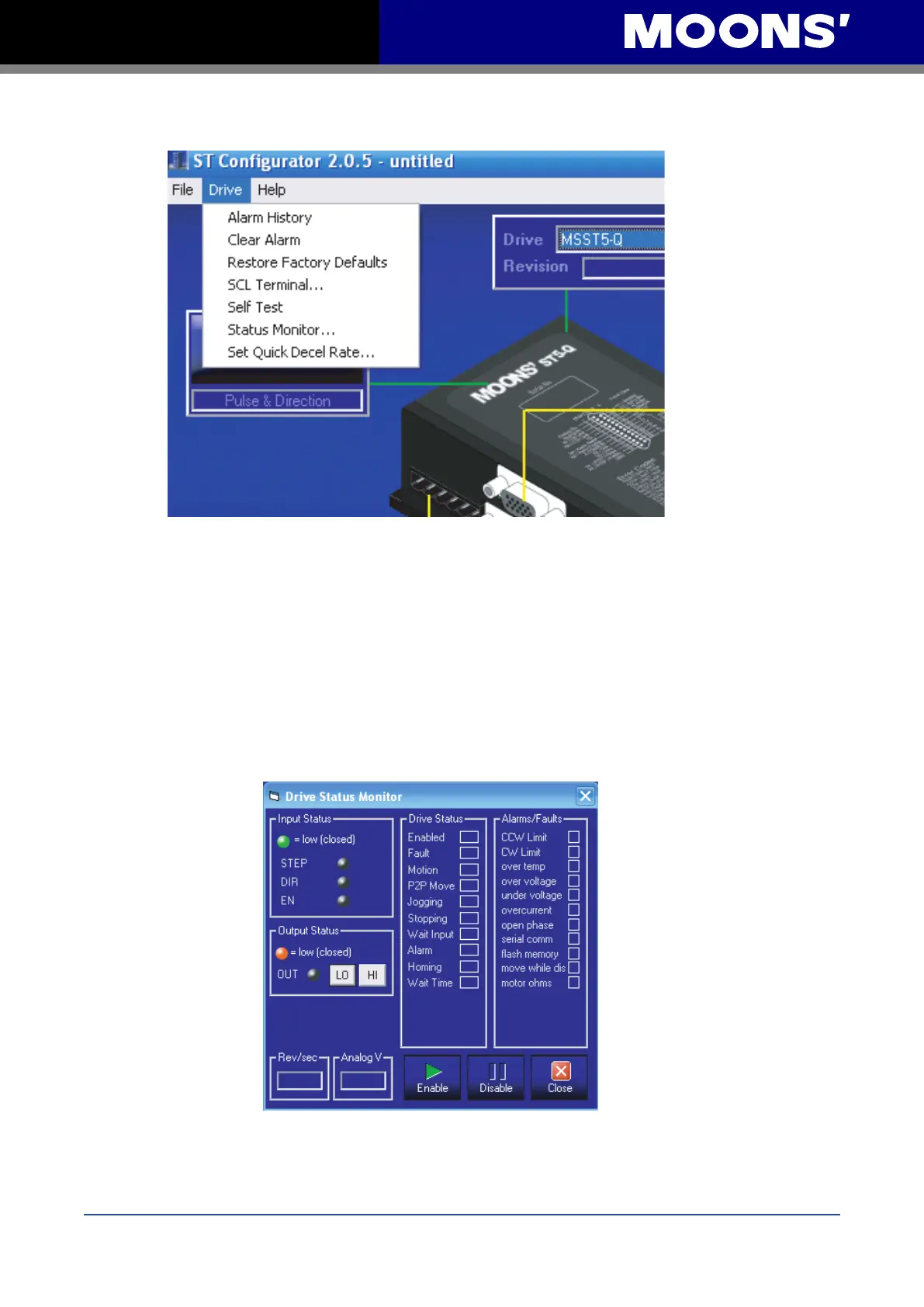

The Drive menu provides access to several features:
Alarm History will display the last eight alarms and/or faults. If an alarm or fault condition is being
displayed, Clear Alarm will clear it. Restore Factory Defaults will return the drive to its original fac-
tory conguration.
SCL Terminal allows SCL commands to be entered to test the drive’s response, creating an oppor-
tunity for commands to be learned before host control software is written.
Self Test rotates the motor a half revolution in alternating directions at a low speed to allow veri-
cation that the motor is connected and functioning properly.
Status Monitor displays real time drive status including:
The Status Monitor displays real time drive status including the following values:
▪ State (open or closed) of all inputs
