Moons' SSDC Series User Manual

23
Rev. 1.0
20/07/2020
SSDC-ECX-H/J Hardware Manual
400-820-9661
3 Inputs and Outputs
SSDC-ECX-H inputs and outputs include：
• 3 Optically isolated digital inputs, 5 - 24VDC logic
• 1 Optically isolated, Open Collector, 30V/100 mA max
J4
X3
1
X4
2
X7
3
XCOM
4
Y2+
5
Y2-
6

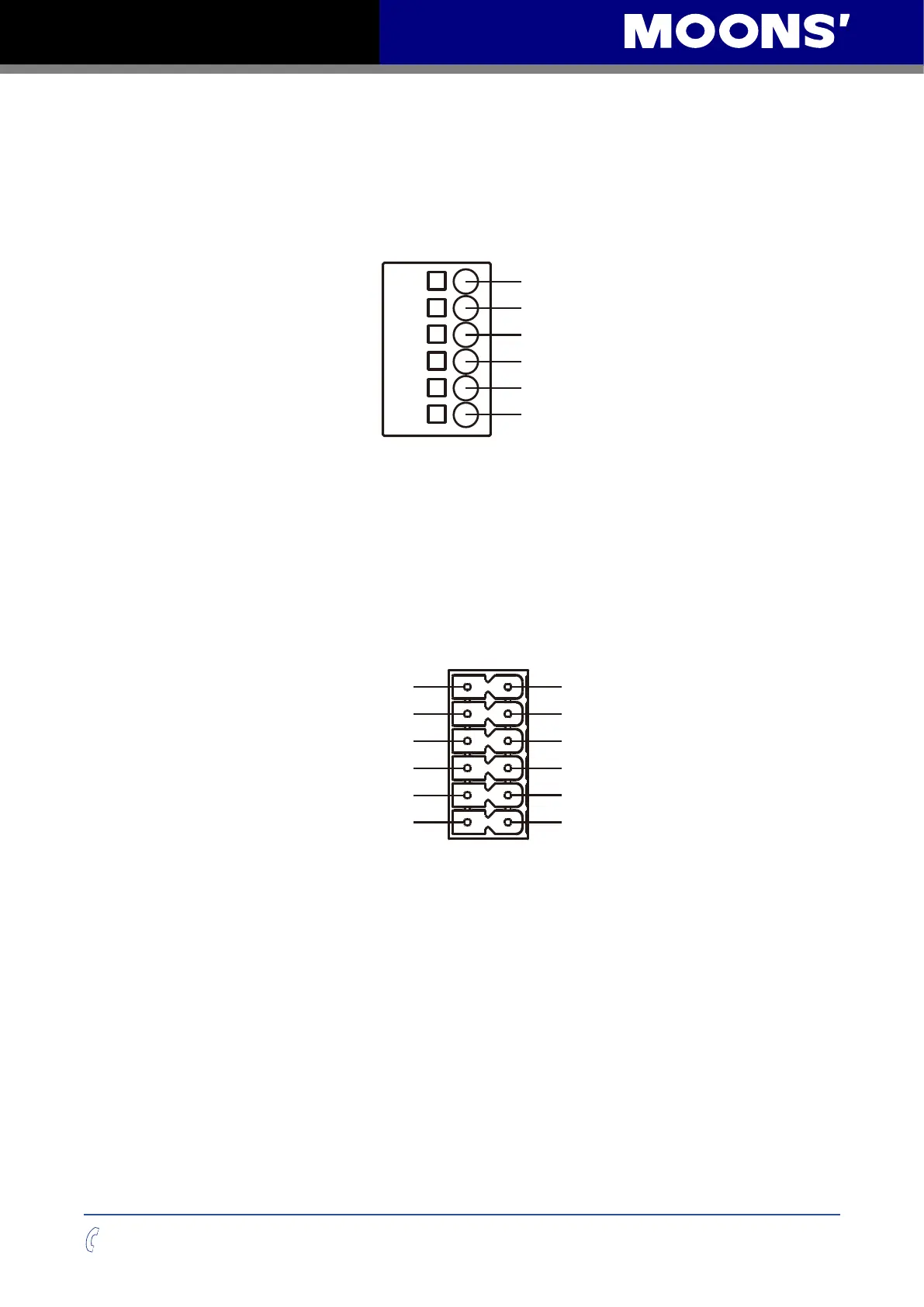

I/O Connector Diagram
SSDC-ECX-J inputs and outputs include：
• 5 Optically isolated digital inputs, 5 - 24VDC logic
• 2 Optically isolated, Open Collector, 30V/100 mA max,
• 1 analog inputs can be configured to 0-5V, 0-10V, ±5V or ±10V signal ranges
• User 5V
J4
AIN
1
X3
2
X5
3
X8
4
Y1
5
YCOM
11
9
10
87
6
12
+5V
Y2
XCOM
X7
X4
GND
