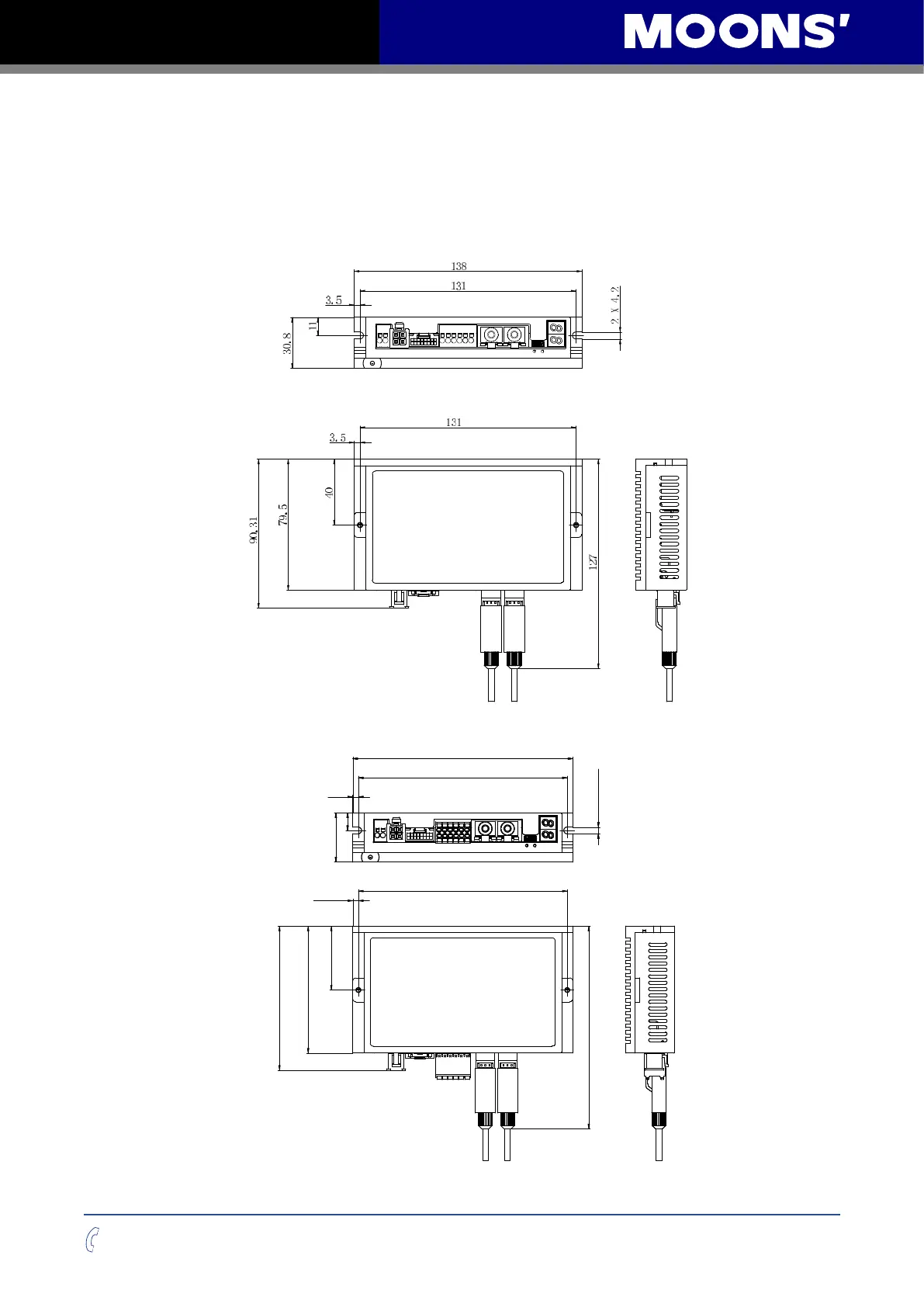

6.1 Drive Mechanical Outlines(Units: mm)
SSDC06/10-ECX-H
SSDC06/10-ECX-J
138
131
2x4.2
3.5
30.8
11
3.5
40
79.5
90.3
131
127
