Moons' SSDC Series - Accessories; 7.1 Standard Accessories (Included); 7.2 Optional Accessories (Sold separately); 7.2.1 Extended Motor Cable for AM11 RS

44
Rev. 1.0
20/07/2020
SSDC-ECX-H/J Hardware Manual
400-820-9661

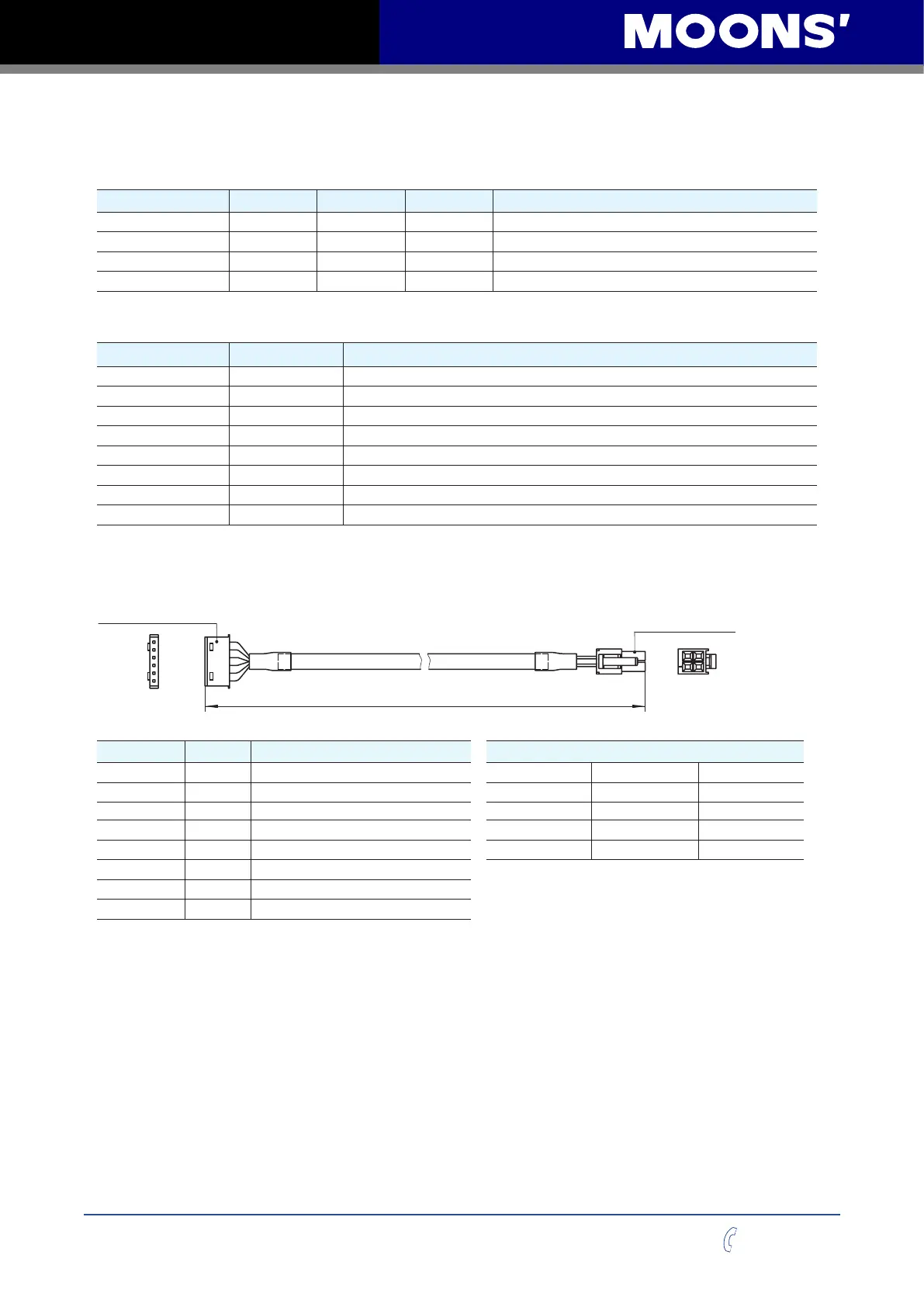

7 Accessories
7.1 Standard Accessories（Included）
Model Number Catagory Vendor Description
39-01-3048 1 Housing Molex Motor connector housing
（
J2
）
501646-1600 1 Housing Molex Encoder connector housing
（
J3
）
39-00-0038 5 Crimp Molex Motor connector crimp
501648-1000 20 Crimp Molex Encoder connector crimp
7.2 Optional Accessories (Sold separately)
Model Catagory Description
RC880 Regeneration Clamp Regeneration Clamp
2620-150 USB
USB configuration cable (Connection with PC for configuration)
2109-口口口-口口口 Cable Extended motor cable
（
For SSDC drive and AM11RS motor
）
2103-口口口-口口口 Cable Extended motor cable
（
For SSDC drive and AM17/23/24/34SS-N
、
AM17/23/24/34RS motor
）
2118-口口口-口口口 Cable Extended encoder cable
（
For SSDC drive and AM11RS motor
）
2117-口口口-口口口 Cable
Extended encoder cable
（
For SSDC drive and AM17/23/24/34SS-N motor
）
2116-口口口-口口口 Cable Extended encoder cable
（
For SSDC drive and AM17/23/24/34RS motor
）
201口-口口口 Cable Network Cable
7.2.1 Extended motor cable（For SSDC drive and AM11RS motor）
Housing：51065-0600(Molex)
Crimp：50212-8000(Molex)
Housing：
39-01-3048(Molex)
Crimp：39-00-0038(Molex)
2
1
4
3
6
1
J1
L
J2
Model
Length(L) Description
Wiring Diagram
2109-100 1M Standard type PIN(J1) Color (Signal) PIN(J2)
2109-300 3M Standard type 1 Blue(B-) 1
2109-500 5M Standard type 3 Red(B+) 2
2109-1000 10M Standard type 4 Green(A-) 3
2109-100-C05 1M Flexbile type， 5 million times bends
6 Black(A+) 4
2109-300-C05 3M Flexbile type， 5 million times bends
2109-500-C05 5M Flexbile type， 5 million times bends
2109-1000-C05 10M Flexbile type， 5 million times bends
