Moons' SSDC Series User Manual

39
Rev. 1.0
20/07/2020
SSDC-ECX-H/J Hardware Manual
400-820-9661

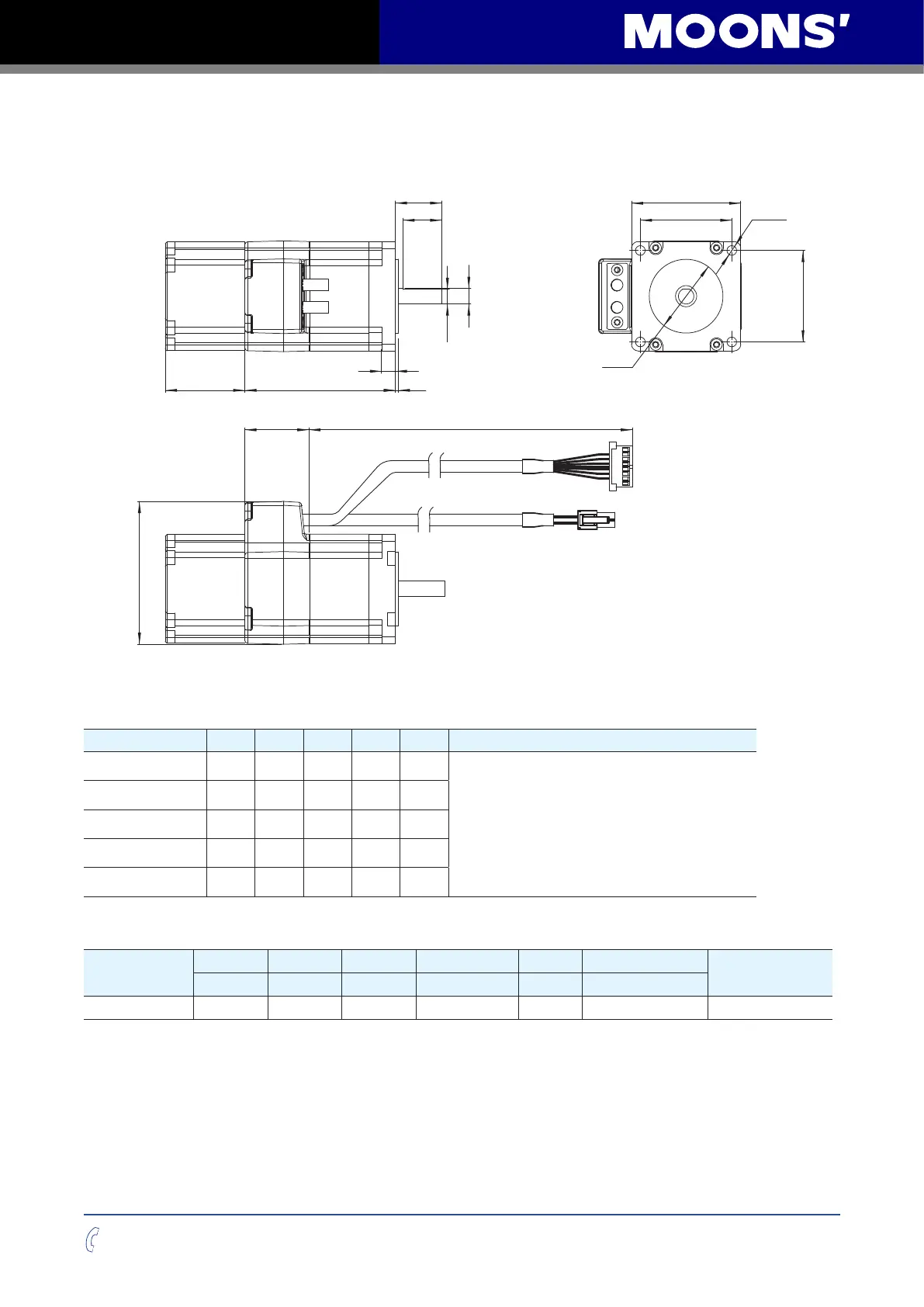

AM23SS-N-BR01 Series(With brake)
47.14
47.14
Ø38.1
4-Ø5.1
56.3
A
A1 FLAT
B
B1
1.6
L
7
30033
73.6
41
Model A A1 B B1 L Connector On Cable
AM23SS2DGA-N-BR01
φ
8
7.5 24 20 77.5
Motor cable
Housing: 39-01-3048 (Molex)
，
1pcs
Crimp: 39-00-0038 (Molex)
，
4pcs
Encoder cable
Housing: 1-1827864-0 (Tyco)
，
1pcs
Crimp: 1827569-2 (Tyco)
，
15pcs
AM23SS2DGB-N-BR01
φ
6.35
5.85 20 15 77.5
AM23SS3DGA-N-BR01
φ
8
7.5 24 20 99.5
AM23SS3DGB-N-BR01
φ
6.35
5.85 20 15 99.5
AM23SS4DGA-N-BR01
φ
8
7.5 24 20 102.5
Specification of brake for NEMA23 motor
Model
Voltage Power Torque Reactive time Life Maximum speed
Insulation class
(VDC) (W) (N.m) (ms) (times) (rpm)
NEMA23 Brake
24 4.5 1.2 50 10000 5000 Class B
