Moons' SSDC Series User Manual

8
Rev. 1.0
20/07/2020
SSDC-ECX-H/J Hardware Manual
400-820-9661

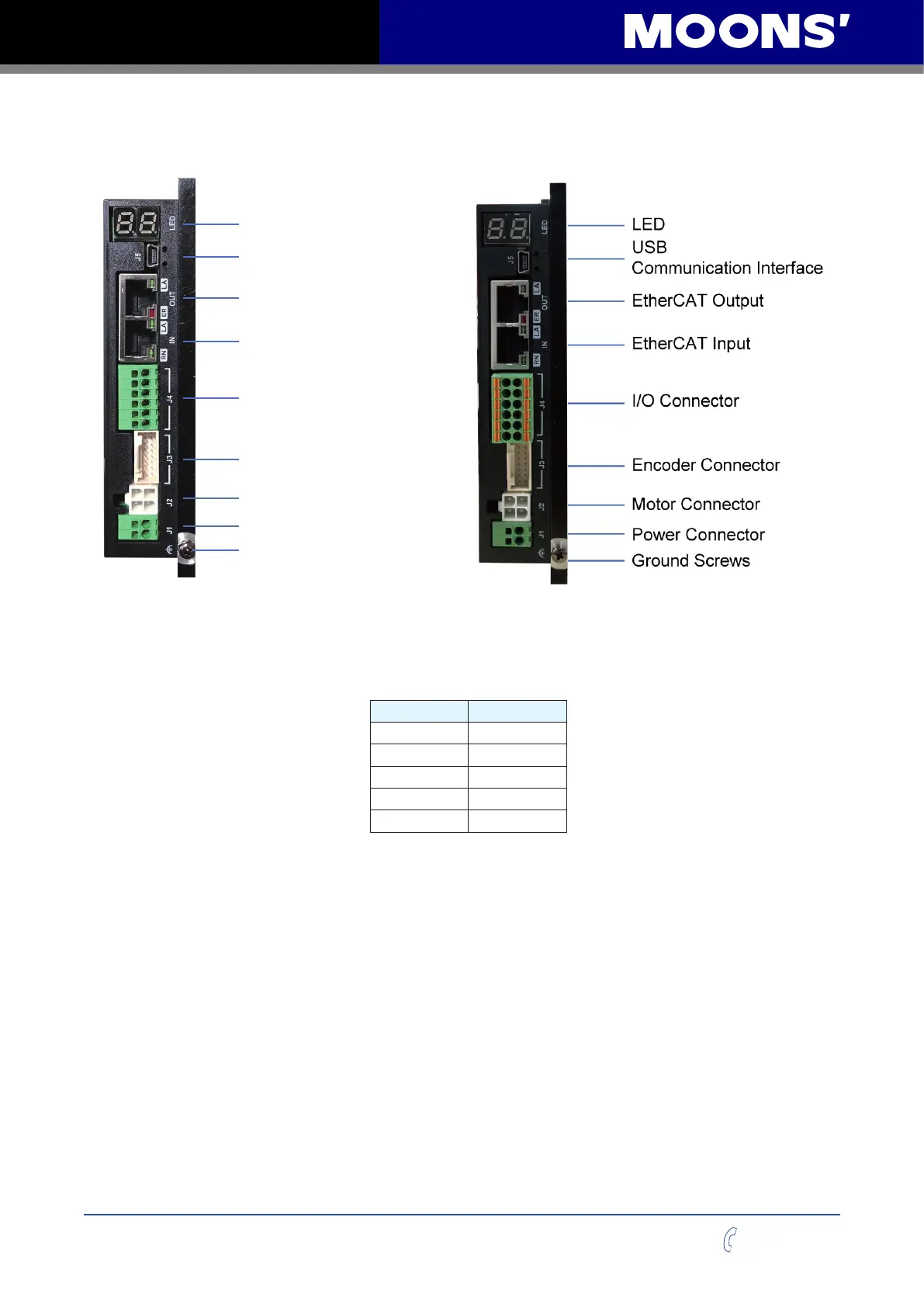

The connectors and other points of interest are illustrated below:
SSED-ECX-H SSED-ECX-J
EtherCAT Input
EtherCAT Output
USB
Communication Interface
LED
I/O Connector
Encoder Connector
Motor Connector
Power Connector
Ground Screws
2.2 Connecting to the PC using USB
Connector J5 is USB communication port, please use the USB Mini-B cable to connect the drive
and PC. Use the Stepper Suite software to configure the drive parameter, tuning, monitoring the
status of drive and motor.
PIN Definition
1
+5V
2
D-
3
D+
4
Reserved
5 GND
