Moons' SSDC06-R User Manual

50
Rev. 1.0
10/22/2018
SSDC-R/C Hardware Manual
400-820-9661

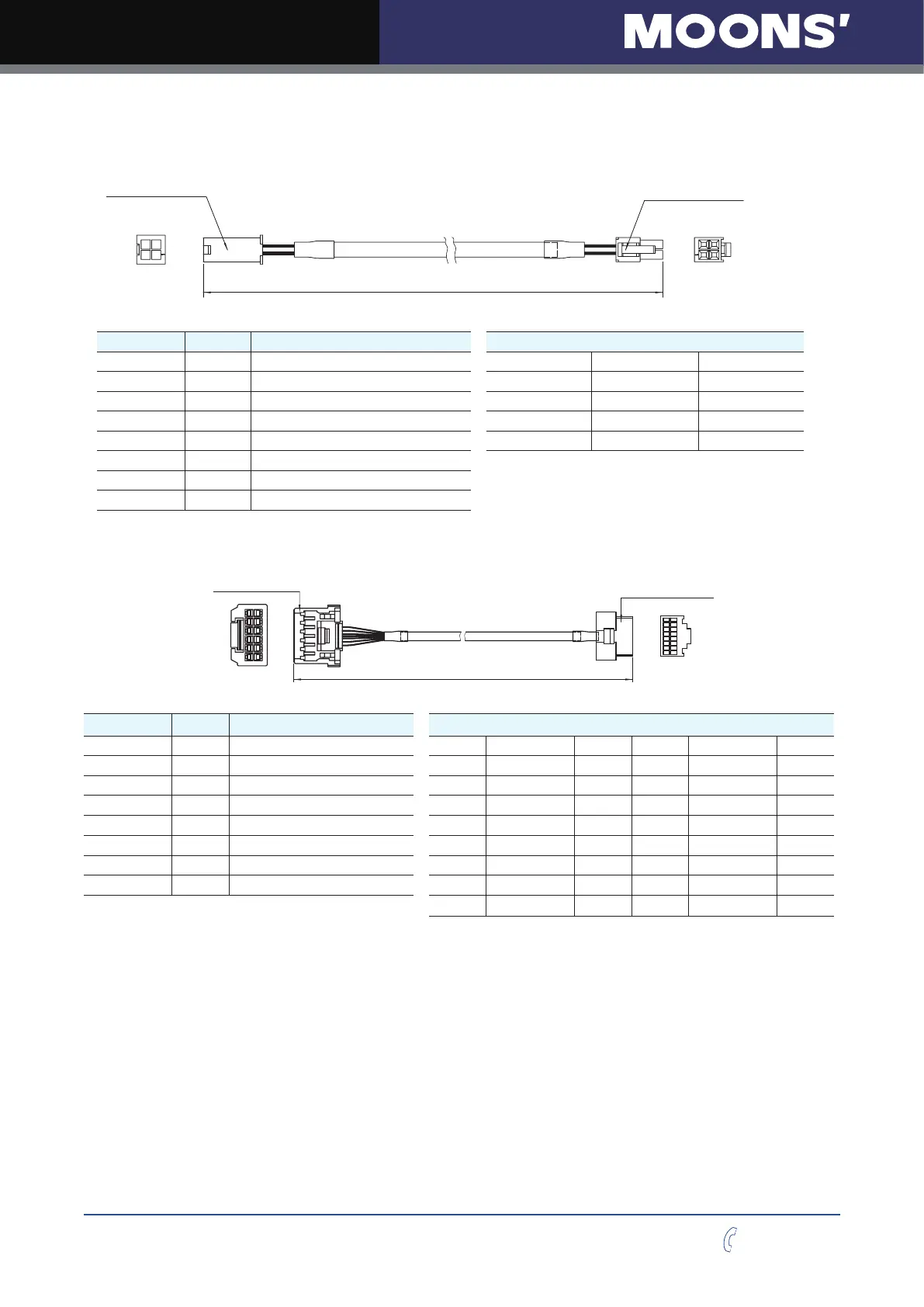

7.2.3 Extended motor cable（For SSDC drive and AM17/23/24/34SS-N、AM17/23/24/34RS
motor）
Housing：39-01-3049(Molex)
Crimp：39-00-0040(Molex)
Housing：39-01-3048(Molex)
Crimp：39-00-0038(Molex)
2
1
4
3
2
1
4
3
J1
L
J2
Model
Length(L) Description
Wiring Diagram
2103-100 1M Standard type PIN(J1) Color (Signal) PIN(J2)
2103-300 3M Standard type 1 Blue(B-) 1
2103-500 5M Standard type 2 Red(B+) 2
2103-1000 10M Standard type 3 Green(A-) 3
2128-100-C05 1M Flexbile type， 5 million times bends 4 Black(A+) 4
2128-300-C05 3M Flexbile type， 5 million times bends
2128-500-C05 5M Flexbile type， 5 million times bends
2128-1000-C05 10M Flexbile type， 5 million times bends
7.2.4 Extended encoder cable（For SSDC drive and AM11RS motor）
Housing：501646-1200(Molex)
Crimp：501648-1000(Molex)
Housing：
J21DF-16V-KX-L(JST)
Crimp：SJ2F-002GF-P1.0(JST)
B
1
A
1
88
1
11
2
12
J1
L
J2
Model
Length(L) Description
Wiring Diagram
2118-100 1M Standard type
PINJ1)
Color (Signal)
PIN(J2) PIN(J1)
Color (Signal)
PIN(J2)
2118-300 3M Standard type 10 Blue(A+) 1 NC Brown(U+) NC
2118-500 5M Standard type 9 Blue/Black(A-) 2 NC Brown/Black(U-) NC
2118-1000 10M Standard type 8 Green(B+) 3 NC Gray(V+) NC
2118-100-C02 1M Flexbile type
，
2 million times bends 7 Green/Black(B-) 4 NC Gray/Black(V-) NC
2118-300-C02 3M Flexbile type
，
2 million times bends 6 Yellow(Z+) 5 1 White(W+) 15
2118-500-C02 5M Flexbile type
，
2 million times bends 5 Yellow/Black(Z-) 6 2 White/Black(W-) 16
2118-1000-C02 10M Flexbile type
，
2 million times bends 3 Red(+5V) 7 12 Shield 10
4 Black(GND) 8
