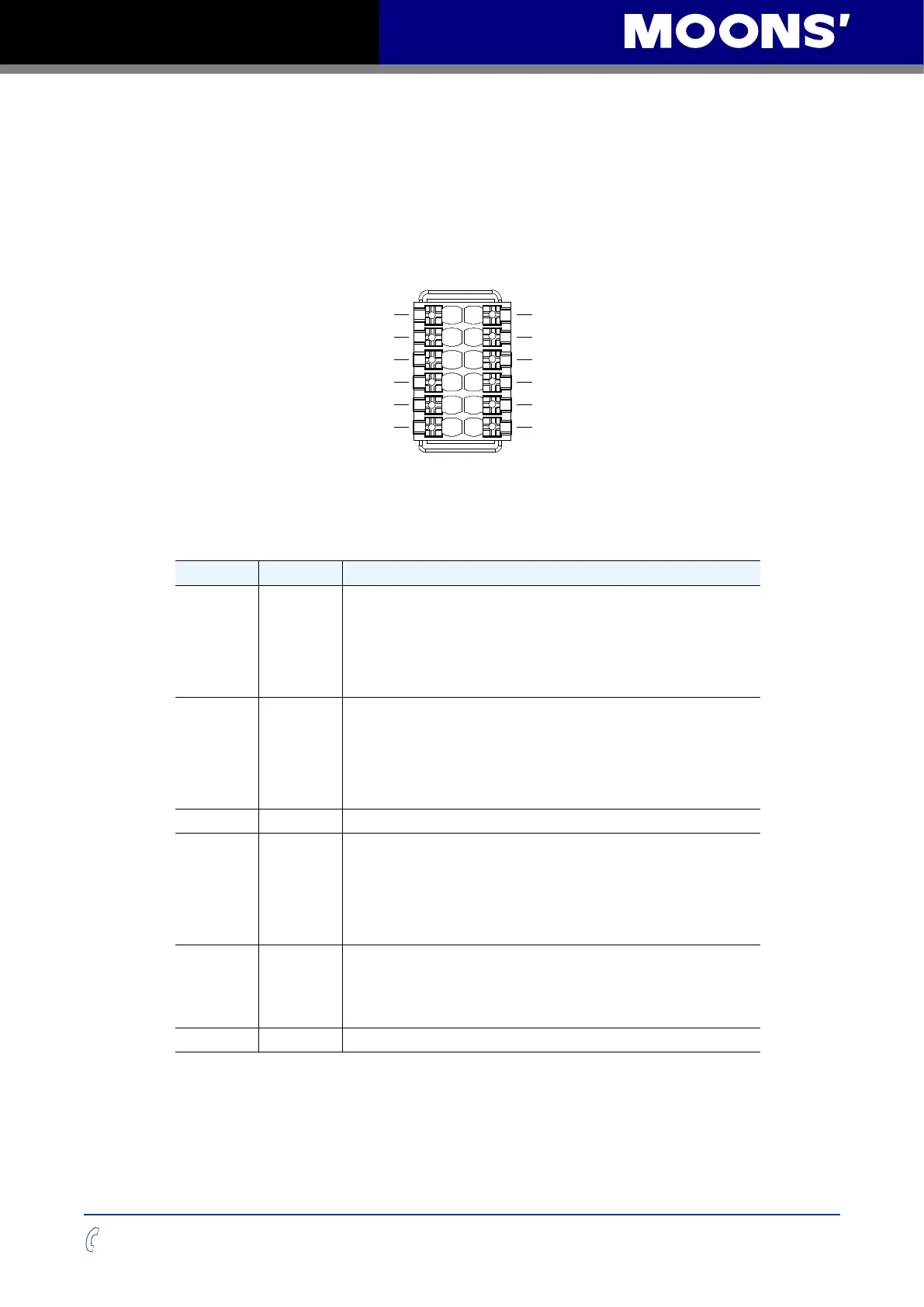

3 Inputs and Outputs
STF - 4X inputs and outputs include
：
• 5 Optically isolated digital inputs, 5 - 24VDC logic
• 2 Optically isolated, Open Collector, 30V/100 mA max
• 1 Brake direct drive control signal output, 30V/1 A max
X3
X4
X5
X7
X8
XCOM
Y1
Y3
YCOM
24V+
BRAKE
24V-
3.1 Digital Inputs
STF - 4X series drive has 5 digital optically isolated inputs, the function of every input can be
configurated by Stepper Suite software.
Signal Pin No. Function
X3 2
Available function
：
CW limit sensor input
Homing sensor input
General purpose
X4 4
Available function
：
CCW limit sensor input
Homing sensor input
General purpose
X5 6 General purpose
X7 8
Available function
：
Touch probe input
Homing sensor input
General purpose
X8 10
Available function
：
Emergency stop
General purpose
XCOM 12 The common voltage of X3/X4/X5/X7/X8
