Moons' STF-EC Series User Manual

26
Rev. 1.0
11/08/2017
STF-EC Hardware Manual
400-820-9661

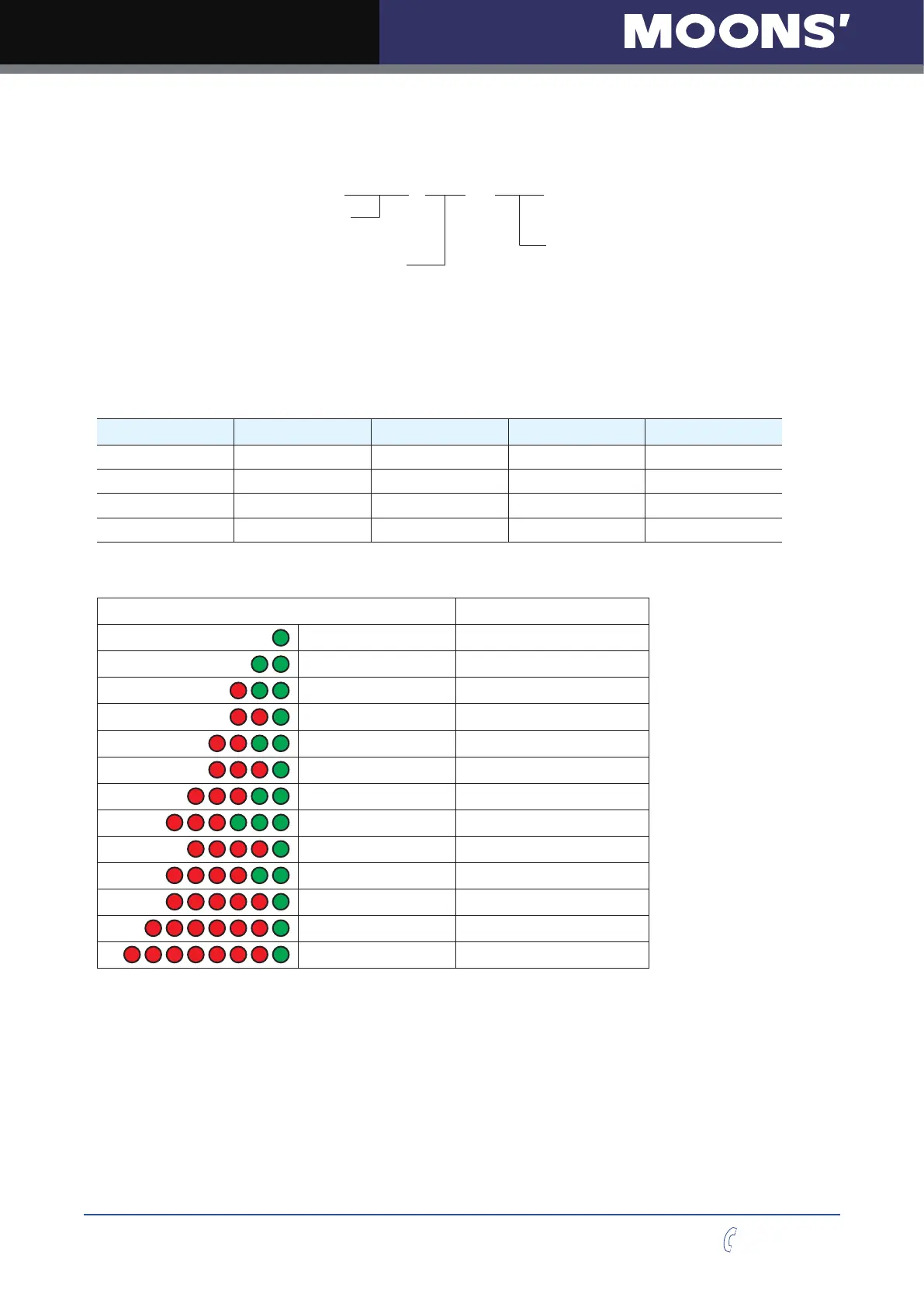

5.5 Numbering System
STF 05 - EC
Output Current
03 = 3A(Peak)
05 = 5A(Peak)
06 = 6A(Peak)
10 = 10A(Peak)
Control Mode
R = RS-485
C = CANopen
D = Ethernet
IP = EtherNet/IP
EC = EtherCAT
STF Series
5.6 Ordering Information
Model Current Voltage EtherCAT Q Program
STF03-EC 0.1 - 3.0 A 12 - 48 VDC √ √
STF05-EC 0.1 - 5.0 A 24 - 48 VDC √ √
STF06-EC 0.1 - 6.0 A 12 - 48 VDC √ √
STF10-EC 0.1 - 10.0 A 24 - 70 VDC √ √
5.7 Alarm Code
Code Error
solid green no alarm,motor disabled
ashing green no alarm,motor enabled
1 red, 2 green move while disabled
2 red, 1 green CCW limit
2 red, 2 green CW limit
3 red, 1 green drive over temperature
3 red, 2 green internal voltage bad
3 red, 3 green blank Q segment
4 red, 1 green over voltage
4 red, 2 green under voltage
5 red, 1 green over current
6 red, 1 green open motor winding
7 red, 1 green communication error
NOTE: Items in bold italic represent Drive Faults, which automatically disable the motor.
