STF-R/C Hardware Manual

400-820-9661

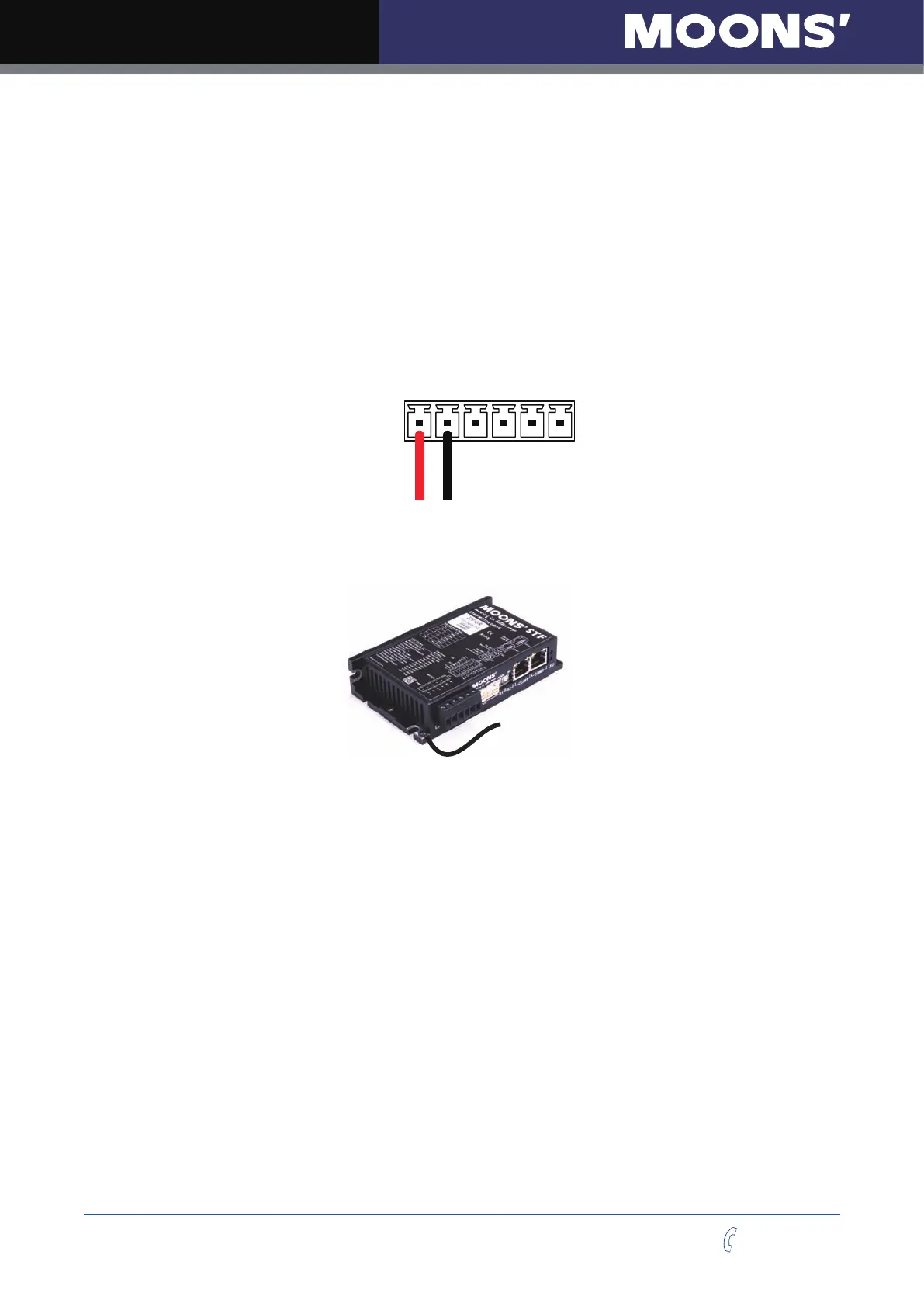

2.5 Connecting the Power Supply

Connect power supply “+” terminal to the drive terminal labeled “V+”.

Connect power supply “-” terminal to the drive terminal labeled “V-”.

STF03 accepts DC voltage range from 12 – 48VDC

STF05 accepts DC voltage range from 24 – 48VDC

STF06 accepts DC voltage range from 12 – 48VDC

STF10 accepts DC voltage range from 24 – 70VDC

Warning: DO NOT reverse the wires

NOTE: DO NOT apply power until all connections to the drive have been made

V+

V-

Power Connector

Ensure a proper earth ground connection by using the screw on the left side of the chassis.

To Earth Ground

Please read “choosing a power supply” for more details.
