2.1 Installing Software
• Download the STF Congurator Software from the MOONS’ website and install it.
• Launch the software by clicking Start-----Programs ----MOONS’
• Connect the drive to the PC using communication cable:
Connect the -R model drive to the RS-485 port of the PC using the network cable included in
the package
Connect the -C model drive to the RS-232 port of the PC using the RS-232 cable included in
the package

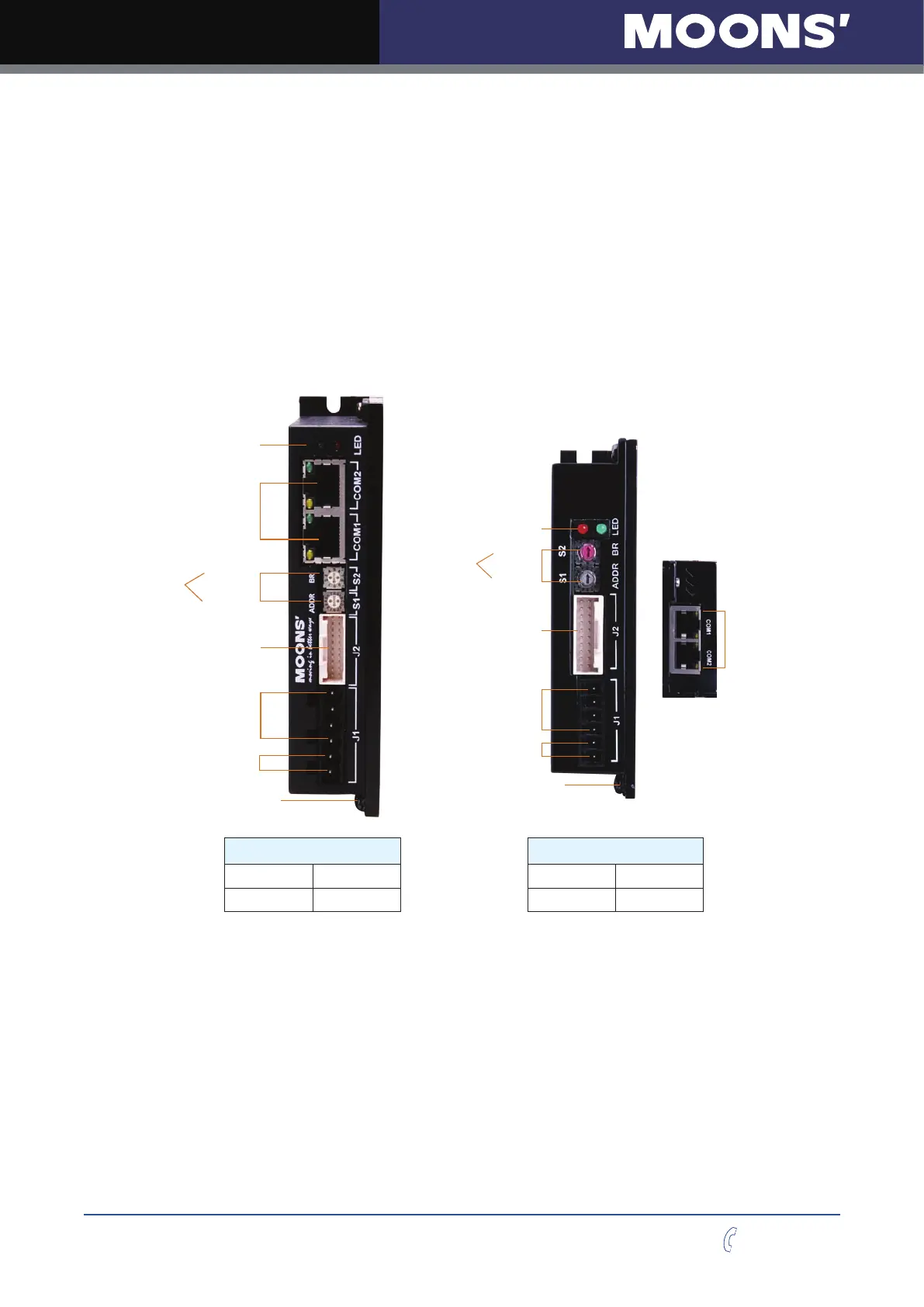

The connectors and other points of interest are illustrated below:
Ground Screws
LED
RS-485 or CANopen
Communication
Connector
Motor Connector
Power Connector
I/O Connector
Band Rate
Node ID
RS-485 or CANopen
LED
RS-485 or CANopen
Communication Connector
RS-485 or CANopen
Ground Screws
Motor Connector
Power Connector
I/O Connector
Band Rate
Node ID
Model Number Model Number
STF05-R STF05-C STF03-R STF03-C
STF10-R STF10-C STF06-R STF06-C
