3.2.2 Y4 Digital Output
Y4 can be used as motion state output or general purpose output.
Please use STF Congurator software for Y4 function configuration.

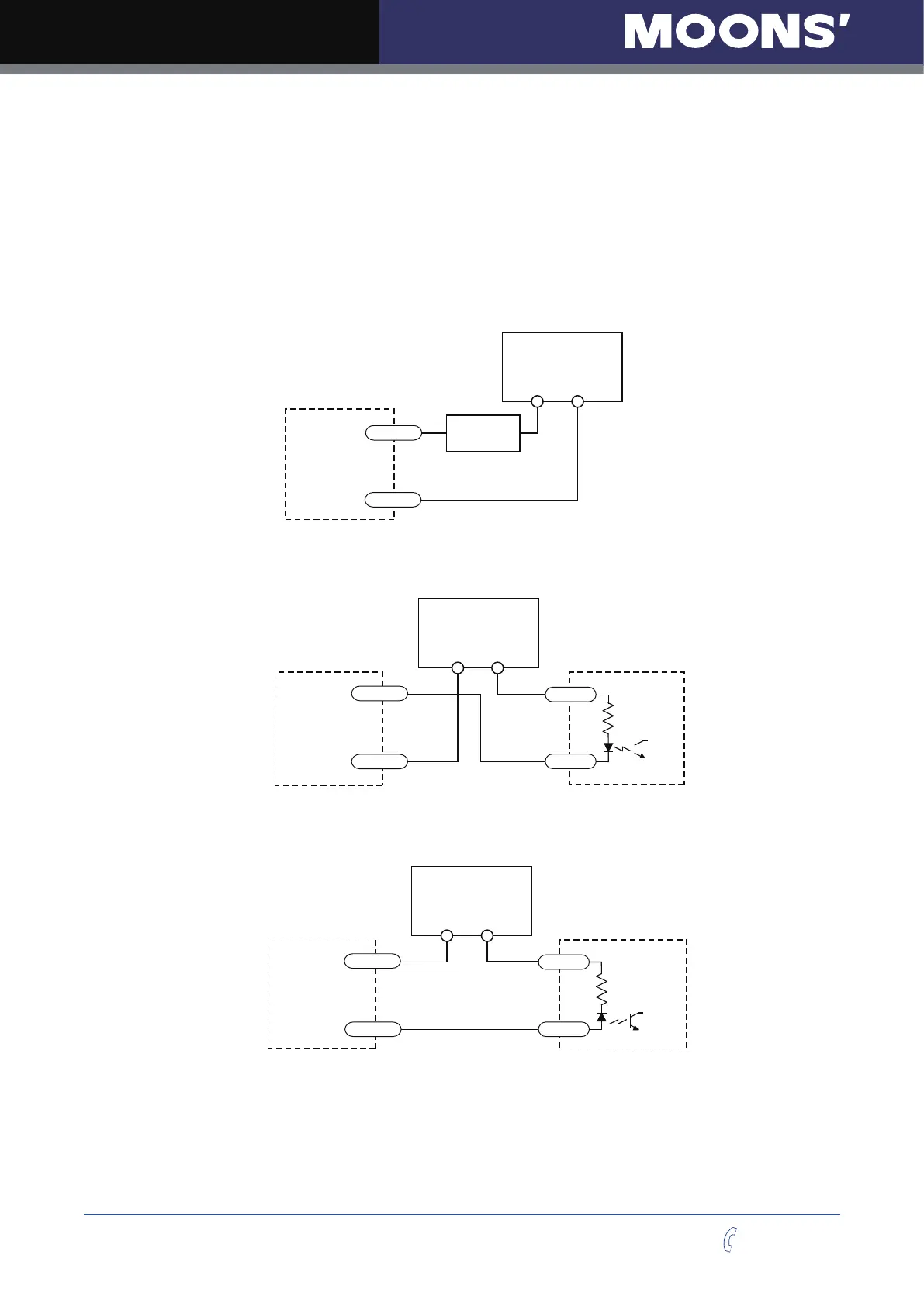

Following graphs shows some common connection methods for the outputs:
NOTE: Do not connect the outputs to more than 30VDC power supply. And the current of
each output terminal must not exceed 100mA.
+ –
Y4-
Y4-
Y4-
Y4-
Y4+
Y4+
Y4+
Y4+
CLP
+ –
IN
COM
PLC
+
–
COM
IN
+ –
relay
STF
Drive
STF
Drive
STF
Drive
STF
Drive
Connecting a sinking output
Connecting a sinking output with PLC’s input
Connecting a sourcing output with PLC’s input
Driving a relay
Load
5-24 VDC
Power Supply
5-24 VDC
Power Supply
5-24 VDC
Power Supply
5-24 VDC
Power Supply
1N4935 suppression diode
