PARTS LISTS
HUB TYPES CS AND CSP

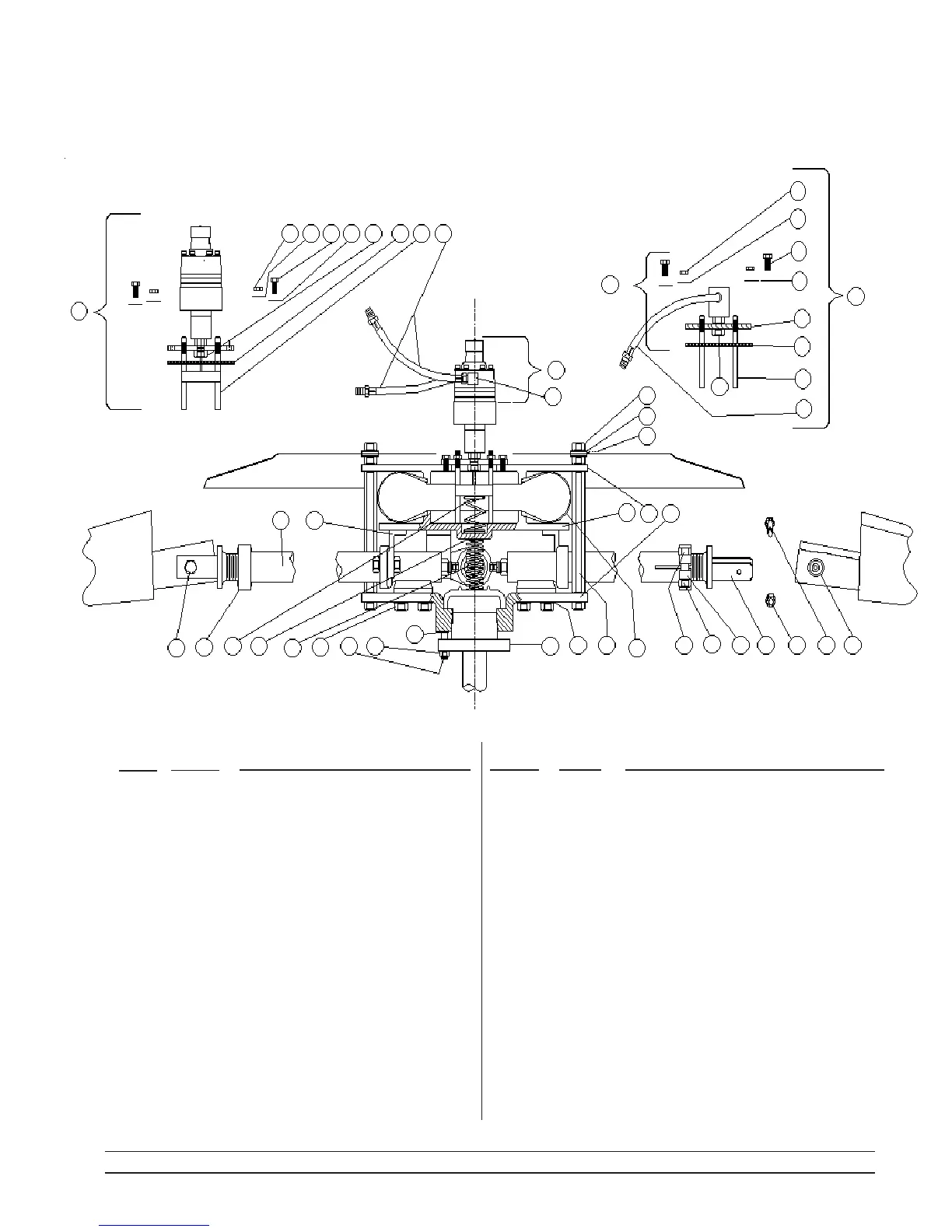

6.1 AUTOMATIC FANS: SERIES 33-60 3-8 BLADES
1 2624 CSP UNION ASSEMBLY WITH POSITIONER
2 1626 10 MM STAINLESS STEEL NUT (3)
3 733 3/8’SEALED WASHER (3)
4 771 10 MM X 30 MM STAINLESS BOLT (6)
5 179 3/8' FIBER WASHER (6)
6 162 UNION PLATE
7 163 UNION PLATE GASKET
8 159 STAINESS STEEL STOP STUD (3)
9 2551 12' STANDARD EDPM AIR HOSE
ASSEMBLY WITH 1/4' NPT EXTERNAL
THREADS BOTH ENDS
10 21 POSITIONER
11 210 1/4' BRASS STREET ELL
12 344 5/8-18 LH LOCKNUT
13 264 CS ROTARY UNION
14 186 CS UNION ASSEMBLY WITH HARDWARE
15 1532 18 MM ALUMINUM HEX NUT
16 104 3/4' ALUMINUM FLAT WASHER
17 62 5/8' RESILIENT WASHER
18 168 10 MM X 108 MM ALUMINUM CLEVIS/BLADE
BOLT
19 644 SMALL CLEVIS CLAMP
20 RANGE SPRING
21 RETURN SPRING SHIM
22 RETURN SPRING
23 1515 16MM X 32 MM ALUMINUM ANCHOR TEE
BOLT (4/BLADE)*
24 1345 10 MM S S STUD FOR QDSF BUSHING (3)
1347 12 MM S S STUD FOR QDE BUSHING (3)
25 1346 10 MM S S NUT FOR QDSF BUSHING (3)
1348 12 MM S S NUT FOR QDE BUSHING (3))
26 QDSF OR QDE TYPE BUSHING
27 152 5/8" ALUMINUM LOCK WASHER (4/BLADE)*
28 1630 18 MM X 302 MM ALUMINUM HUB STUD
29 16 DIAPHRAGM ACTUATOR
30 167 16 MM X 70 MM ALUMINUM BOLT (FOR
CLEVIS CLAMP)
31 169 16 MM ALUMINUM NUT
32 2252 CLEVIS
33 637 SMALL MOUNT (1,436”)
989 LARGE MOUNT (1,744”)**
34 BUSHING STUD WASHER
35 HUB TUBE ASSEMBLY WITH HARDWARE
36 PISTON STRUT ASSEMBLY WITH HARDWARE
37 PISTON PLATE
38 CYLINDER PLATE
39 HUB PLATE
* 2/BLADE FOR SERIES 33
** NOT AVAILABLE ON SERIES 33 OR 40
SHOP
DWG.
NO.
DWG.
NO.
DESCRIPTION
SHOP
DWG.
NO.
DWG.
NO.
DESCRIPTION
1
2
3
4
5
6
7
9
8
14
13
32
54
12
987
12
10
11
15
16
17
37
38
39
35
36
18 19
20
21
22 23
24 25
34
26
27
28
29
30
31
19
31 18
33
32
NOT TO SCALE: SOME DIMENSIONS AND ANGLES
HAVE BEEN EXAGGERATED FOR CLARITY
DETAIL AA
FOR HUB WITHOUT POSITIONER
DETAIL AA
FOR HUB WITH POSITIONER
SEE DETAIL AA
