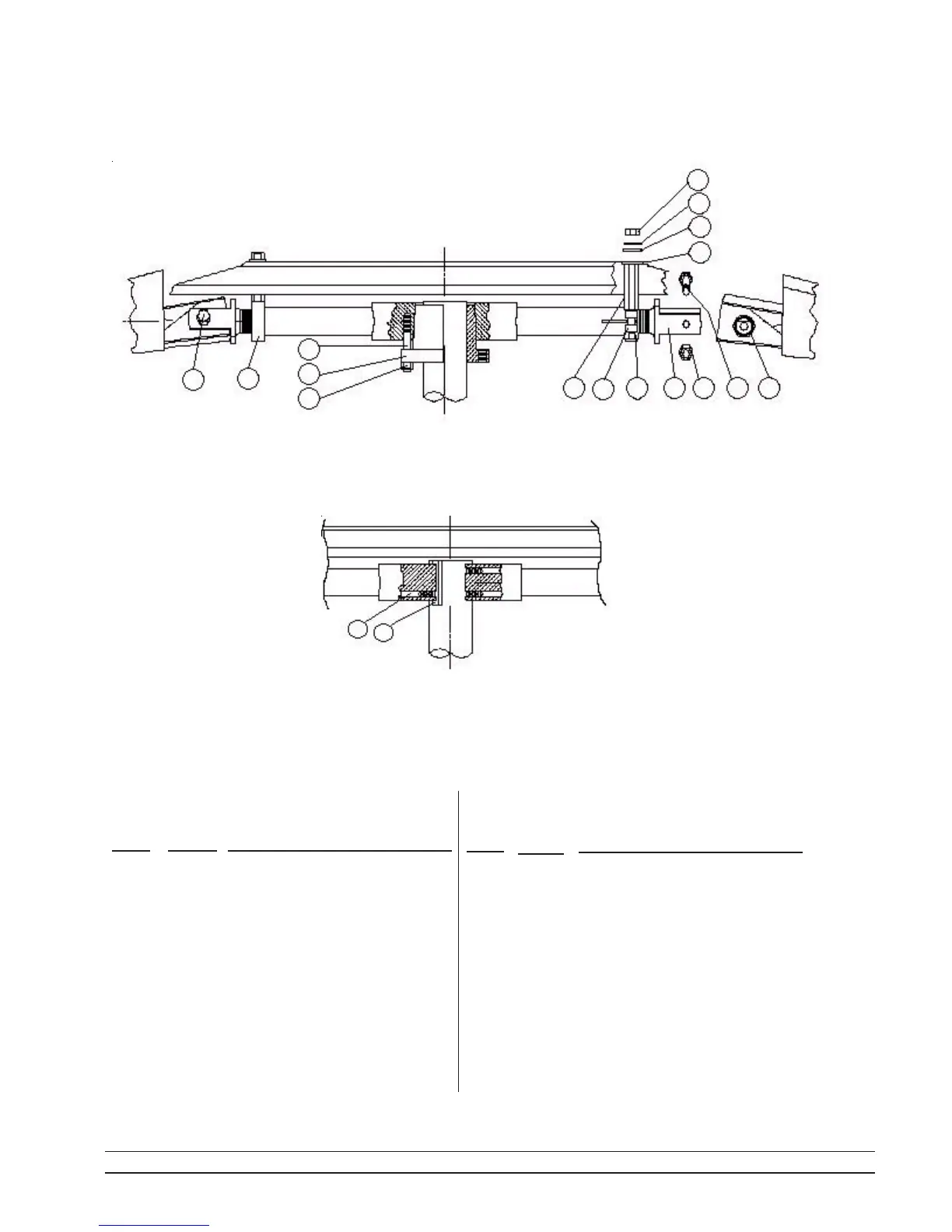

PARTS LISTS
6.3 MANUAL FANS
(EXCEPT SERIES 19)
SHOP
DWG. PART
NO. NO. DESCRIPTION
11 1345 10 MM STAINLESS STEEL STUD FOR QDSF
BUSHING(3)
1347 12 MM STAINLESS STEEL STUD FOR QDE
BUSHING(3)
1558 16 MM STAINLESS STEEL STUD FOR QDJ
BUSHING(3)
12 QDSF, QDE ORQDJ TYPE BUSHING
13 1346 10 MM STAINLESS STEEL NUT FOR QDSF
BUSHING(3)
1348 12 MM STAINLESS STEEL NUT FOR QDE
BUSHING(3)
1559 16 MM STAINLESS STEEL NUT FOR QDJ
BUSHING(3)
SHOP
DWG. PART
NO. NO. DESCRIPTION
1 168 16 MM X 108 MM ALUMINUM CLEVIS/
BLADE BOLT
2 644 SMALL CLEVIS CLAMP
3 166 12 MM SET SCREW
4 KEY
5 608 CLAMP STUD
6 169 16 MM ALUMINUM NUT
7 2252 CLEVIS
8 637 SMALL MOUNT (1.435")
989 LARGE MOUNT (1.744")
9 151 5/8" ALUMINUM FLAT WASHER
10 52 5/8" RESILIENT WASHER
QD BUSHING = TYPE B
NOT TO SCALE: SOME DIMENSIONS AND ANGLES
HAVE BEEN EXAGERATED FOR CLARITY
STRAINGHT BORE HUB - TYPE A
1
6
11
2
12
13
9
9
10
1
86
65
2
7
3
4
