Morco EUP11RS - Flue Length and Ignition Warnings; Pre-Ignition Safety Checks

13

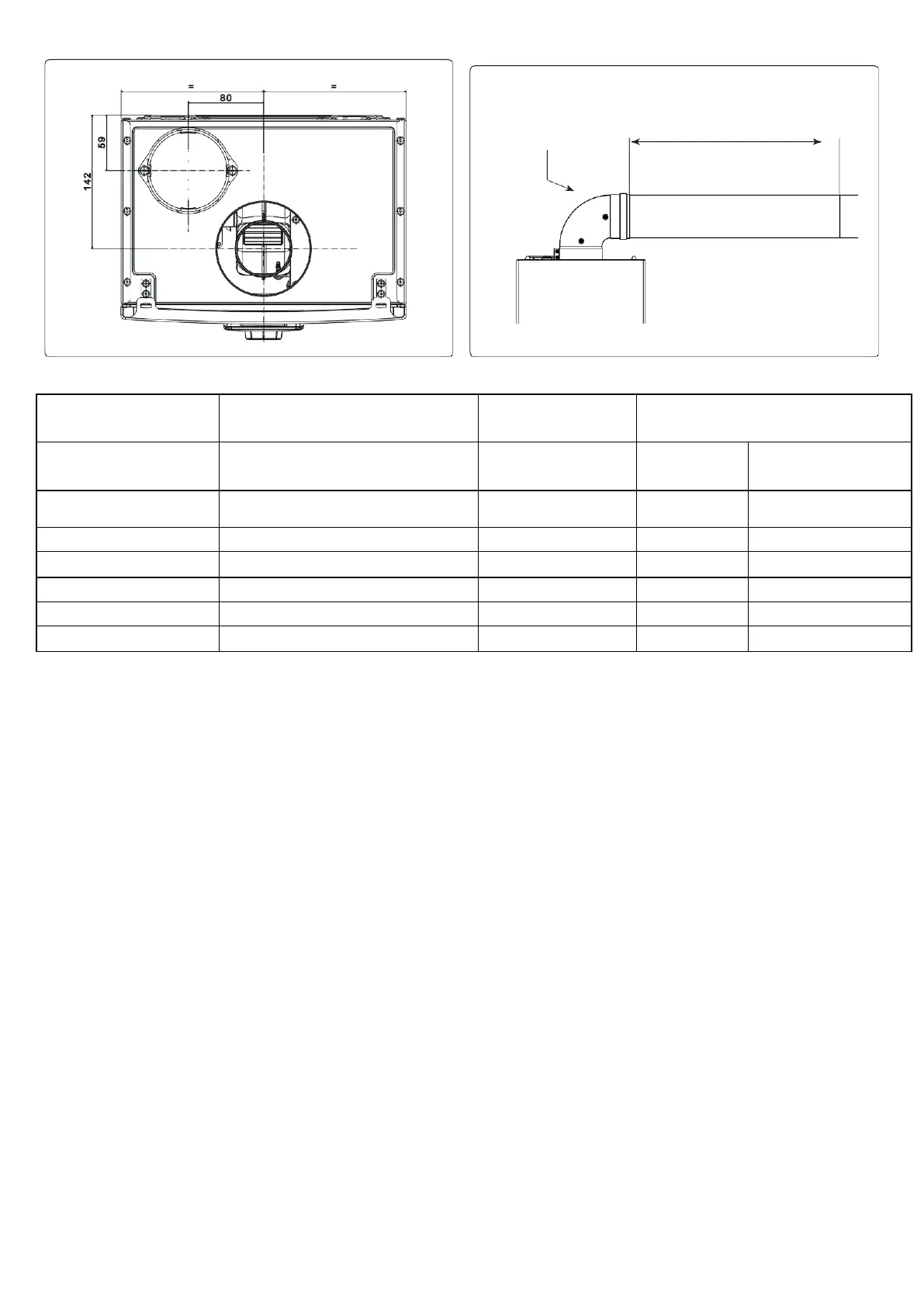

Fig.11 - Top view with distances
Fig. 12 - Maximum pipe length (see following table)
The
90° appliance
Length
pipes/metres
output curve load
loss should NOT be
calculated
Maximum considered length
Reference table for maximum workable length based on the selected exhaust type
Flue Type
Length of Flue (m)
Flue Restrictor
(mm)
Reduction in allowable length for
each additional elbow
This excludes the 90° elbow
connected to the appliance
45°
90°
Horizontal Co-axial
Flue
up to 1m
Ø43mm
1m
1.4m
1 - 2.7m
Ø45mm
1m
1.4m
2.7 – 5.5m
None Installed
1m
1.4m
Vertical Co-axial Flue
up to 2m
Ø43mm
1m
1.4m
2 - 3.7m
Ø45mm
1m
1.4m
3.7 - 6.7m
None Installed
1m
1.4m
14 2
5 9
Warnings before ignition
Please remember that appliance installation, first ignition, maintenance and repairs must be performed by
qualified personnel. In the UK this is a Gas Safe Engineer.
Before turning on the appliance, proceed with suitable checks:
• Ensure the gas system seal is good (according to current regulations)
• Ensure gas type and pressure match those stated on the data plate
• Ensure the installation meets current local regulations
• Ensure the flue meets current regulations
• Check connections with the electrical mains, Live and Neutral, polarity and grounding connections
• Check the mains pressure as indicated in the next paragraph.
The 90° appliance output
curve load loss should
NOT
be calculated
