UCM Ball Seat Adapter
(UC-xxx-51)
Load Ball Adapter (CCE-1)
Alignment Plug (CA)
UCM Jack Compression Block
(UC-xxx-50)
For more details see the Universal Calibrang Machine Adapters and Accessories PG-5202.

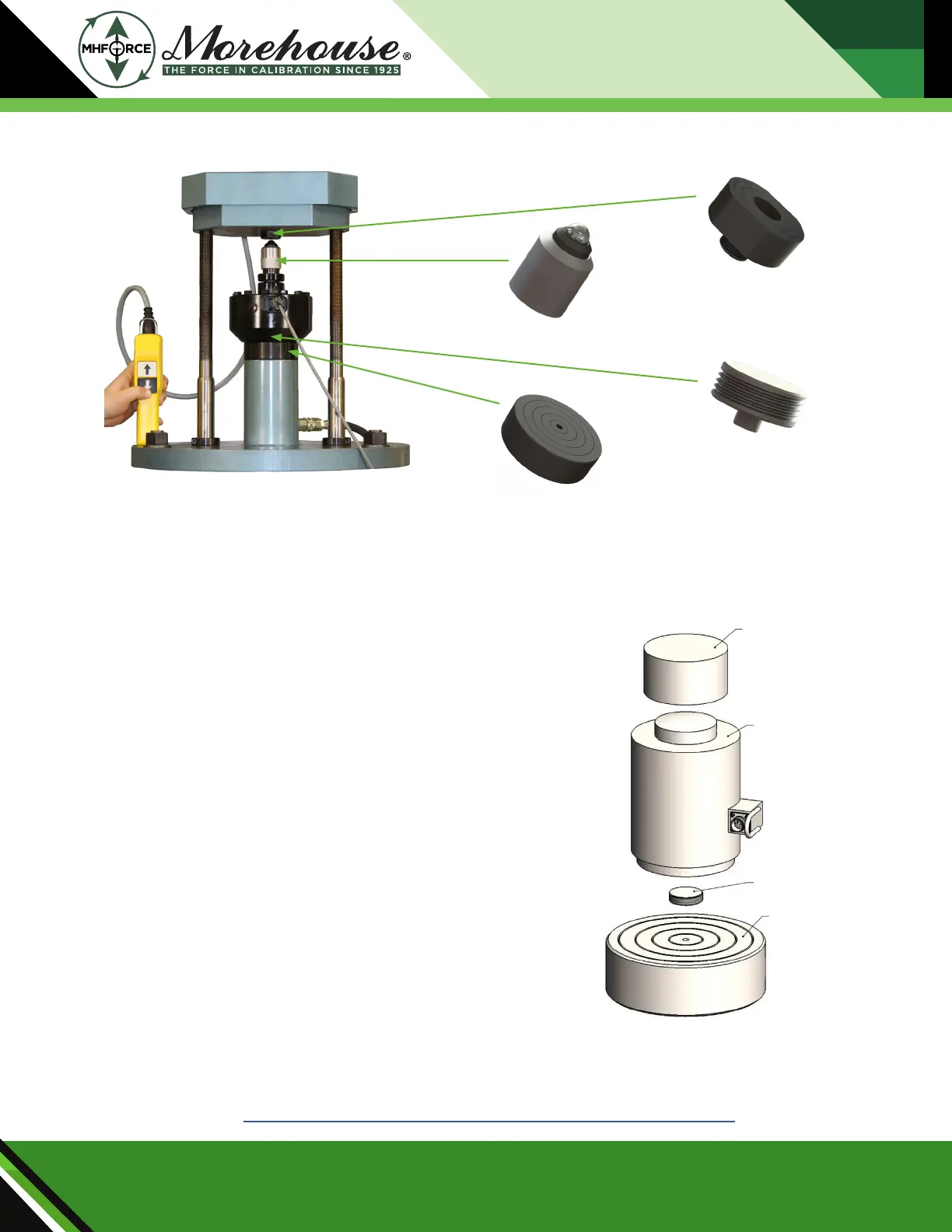

Figure 9: Reference Standard Setup and Adapters
If the capacity of the reference standard load cell is
higher than 100,000 lbf (500 kN), then the kit shown
in Figure 10 can be used to install the standard in a
UCM. The kit contains the following:
1- Top Block Compression Adapter
2- Reference Load Cell
3- Load Cell Alignment Plug
4- Jack Compression Block
Figure 10: Reference Standard Kit for
Capacities Higher than 100,000 lbf (500 kN)
Top block
compression
adapter
Load cell
Load cell
alignment plug
Jack compression
block
